Product Description

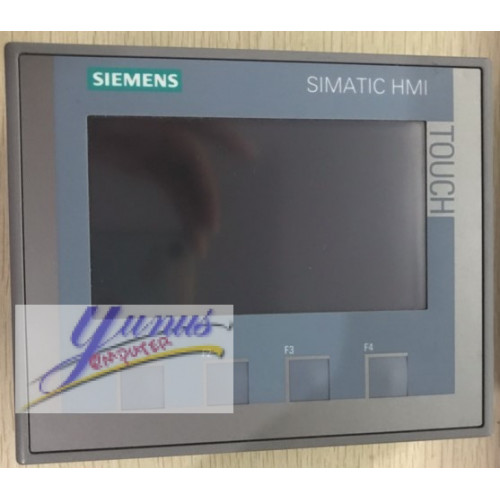

Siemens 6AV2123-2DB03-0AX0 KTP400 Basic HMI Panel

Elevate your automation and control processes with the Siemens 6AV2123-2DB03-0AX0 KTP400 Basic HMI Panel. Engineered for precision and reliability, the KTP400 Basic is an advanced Human-Machine Interface (HMI) designed to provide a seamless user experience in industrial environments.

Key Features:

• Display and Interface: The KTP400 Basic features a 4-inch TFT display with a resolution of 480 x 272 pixels, ensuring clear and vibrant visualization of process data. The 65,536 colors of the display enhance the graphical representation of your user interfaces.
• Touchscreen Functionality: Its intuitive touchscreen interface allows for effortless interaction with control systems, optimizing operational efficiency and user experience.
• Communication: Equipped with integrated PROFINET and MPI/DP interfaces, the KTP400 Basic ensures robust and reliable communication within your automation network.
• Configuration and Integration: Easy to configure using Siemens’ WinCC (TIA Portal) software, the panel supports a wide range of applications, enabling fast and flexible integration into various industrial processes.
• Durability and Design: Designed to withstand harsh industrial conditions, the KTP400 Basic boasts an IP65 protection rating, making it resistant to dust and water ingress. Its compact and rugged design ensures long-term durability and reliability in demanding environments.

Technical Specifications:

• Product Type: Basic HMI Panel
• Screen Size: 4 inches
• Resolution: 480 x 272 pixels
• Color Depth: 65,536 colors
• Touchscreen: Yes, resistive
• Interfaces: PROFINET, MPI/DP
• Protection Rating: IP65
• Operating Temperature Range: 0°C to 55°C

Applications:

Ideal for use in manufacturing, process control, and automation systems, the Siemens KTP400 Basic HMI Panel provides a reliable interface for operators to monitor and control complex processes with ease.

Upgrade your control system with the Siemens 6AV2123-2DB03-0AX0 KTP400 Basic HMI Panel and experience enhanced operational efficiency and user-friendly interaction in your industrial environment.

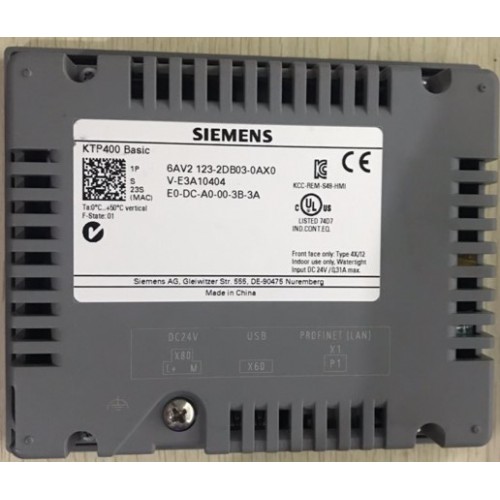

Siemens 6AV2123-2DB03-0AX0 KTP400 Basic

Technical Data

KTP400 Basic

Hardware

Display  4.3 inch TFT, 64K colors

Resolution 480 x 272 px

Control elements  Touch screen / 4 Function keys

User memory  10 MB

Interfaces 1 x RJ 45 Ethernet for PROFINET / 1 x USB host

Degree of protection IP 65, NEMA 4x (front if mounted) / IP 20 rear

Installation cutout 123 x 99 mm (W x H)

Front panel 141 x 116 mm (W x H)

Device depth 43 mm

Software functions Configuration software

WinCC Basic (TIA Portal) V13 or higher

Messages 1000

Message classes 32

Process screens 100

Tags 800

Vector graphics yes
Bar graphics yes
Curve diagrams f(t)

Recipes 50

Archiving  yes
Article No. 6AV2123-2DB03-0AX0
