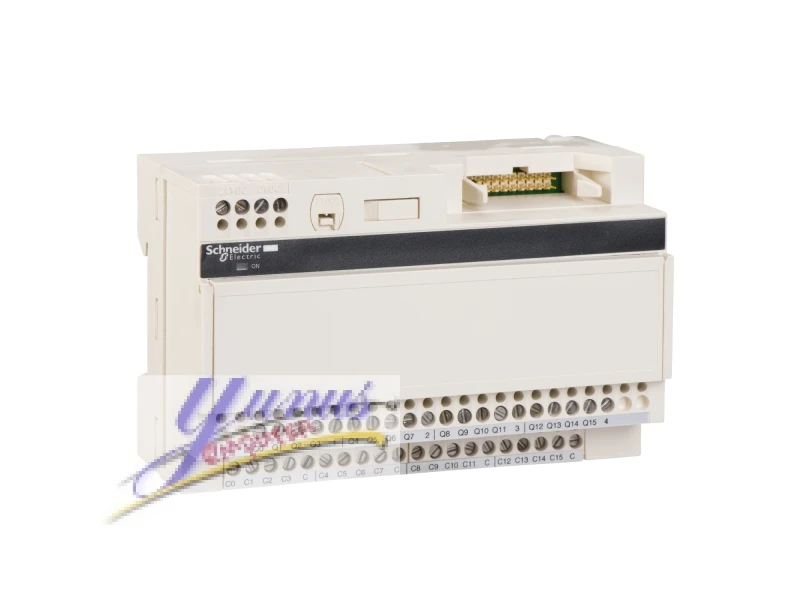

Schneider ABE7E16SRM20 Connection Sub-base ABE7 - 16 Relay Outputs for Twido Extension
Product Overview: The Schneider ABE7E16SRM20 Connection Sub-base is a high-performance solution designed to enhance the functionality of your Twido PLC extension modules. With 16 relay outputs, this sub-base offers robust and reliable switching capabilities, ensuring seamless integration and control in your automation systems.
Key Features:
16 Relay Outputs: The ABE7E16SRM20 features 16 relay outputs, providing extensive control over various devices and systems. Each relay is engineered for durability and precision, ensuring consistent performance even under demanding conditions.
Optimized for Twido: Specifically designed for use with Schneider Electric’s Twido PLC system, this sub-base ensures compatibility and smooth operation within your existing setup. It supports easy expansion and integration with Twido extension modules, streamlining your automation processes.
High-Quality Construction: Constructed with premium materials, the ABE7E16SRM20 guarantees long-lasting reliability. Its robust design withstands harsh industrial environments, offering superior performance and minimizing maintenance needs.
Efficient Wiring and Connectivity: The sub-base features a user-friendly terminal block design, facilitating quick and accurate wiring connections. This simplifies the installation process and reduces setup time, allowing for a more efficient deployment of your automation system.
Enhanced Safety and Compliance: The ABE7E16SRM20 meets rigorous safety standards, ensuring safe operation within your control system. Its design adheres to industry regulations, providing peace of mind and compliance with safety protocols.
Technical Specifications:
- Product Type: Connection Sub-base
- Model Number: ABE7E16SRM20
- Relay Outputs: 16
- Compatibility: Schneider Electric Twido PLC Extensions
- Construction Material: High-grade, durable materials
- Installation: Terminal block for easy wiring
- Safety Standards: Compliant with industry regulations
Applications: Ideal for use in various industrial automation applications, including machinery control, process automation, and system expansion. The Schneider ABE7E16SRM20 is perfect for environments requiring reliable relay switching and seamless integration with Twido PLC systems.
Why Choose Schneider ABE7E16SRM20? Choose the Schneider ABE7E16SRM20 Connection Sub-base for its superior reliability, ease of integration, and robust performance. It represents Schneider Electric’s commitment to quality and innovation in automation solutions, ensuring your systems operate efficiently and effectively.
Order Yours Today! Upgrade your automation system with the Schneider ABE7E16SRM20 Connection Sub-base. Contact us for more information or to place your order.
| range of product |
Advantys Telefast ABE7
|
|
|---|---|---|
| product or component type |
Discrete output sub-base
|
|
| [Us] rated supply voltage |
24 V DC (controller side)
24 V DC (sensor/controller side) |
|
| number of channels |
16
|
|
| number of terminal per channel |
2
|
|
| connections - terminals |
Screw type terminals, clamping capacity: 1 x 0.09...1 x 1.5 mm²
AWG 28...AWG 16 flexible with cable end
Screw type terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 12 solid Screw type terminals, clamping capacity: 1 x 0.14...1 x 2.5 mm² AWG 26...AWG 14 flexible without cable end Screw type terminals, clamping capacity: 2 x 0.09...2 x 0.75 mm² AWG 28...AWG 20 flexible with cable end Screw type terminals, clamping capacity: 2 x 0.2...2 x 2.5 mm² AWG 28...AWG 16 solid |
|
| connector destination |
Twido programmable controller
|
| supply voltage limits |
19...30 V DC conforming to IEC 61131-2 (controller side)
19...30 V DC conforming to IEC 61131-2 (sensor/controller side) |
|
|---|---|---|
| discrete output number |
16 relay output(s), 3000 mA
|
|
| discrete output voltage |
110...250 V AC relay output(s)
24 V DC solid state output(s) 5...30 V DC relay output(s) |
|
| discrete output function |
1 NO
|
|
| product compatibility |
TWDDDO16TK
TWDDDO32TK |
|
| status LED |
1 LED for power ON
|
|
| polarity distribution |
1 common/4 channels for relay output
|
|
| short-circuit protection |
2 A internal fuse, 5 x 20 mm, fast blow (controller side)
|
|
| connector type |
HE-10
|
|
| pin number |
20
|
|
| fixing mode |
By clips on 35 mm symmetrical DIN rail conforming to IEC 60715
By screws |
|
| supply current |
<= 2 A
|
|
| current per channel |
0.009 A relay output(s)
|
|
| switched current |
3000 mA for relay output
|
|
| current per output common |
5 A relay output
|
|
| voltage drop on power supply fuse |
0.3 V
|
|
| voltage state 0 guaranteed |
2 V relay output(s) (sensor/controller side)
|
|
| voltage state 1 guaranteed |
16.8 V relay output(s)
|
|
| electrical durability |
500000 cycles, maximum switching current: 2000 mA AC-12 relay
output(s) (preactuator side)
500000 cycles, maximum switching current: 3000 mA DC-12 relay output(s) (preactuator side) 500000 cycles, maximum switching current: 400 mA AC-15 relay output(s) (preactuator side) 500000 cycles, maximum switching current: 500 mA DC-13 relay output(s) (preactuator side) |
|
| minimum switching current |
100 mA relay output(s)
|
|
| response time |
<= 2.5 ms from state 1 to 0 relay output(s)
<= 5 ms from state 0 to 1 relay output(s) |
|
| [Uimp] rated impulse withstand voltage |
6 kV relay output(s)
|
|
| switching frequency |
20 Hz relay
|
|
| mechanical durability |
20000000 cycles at 20 °C
|
|
| [Ui] rated insulation voltage |
2000 V between terminals/mounting rails
300 V between coil circuit/contact circuits conforming to IEC 60947-1 |
|
| overvoltage category |
II conforming to IEC 60664-1
|
|
| tightening torque |
0.6 N.m (with flat Ø 3.5 mm)
|
|
| product weight |
0.43 kg
|
| product certifications |
CSA
UL |
|
|---|---|---|
| IP degree of protection |
IP2x conforming to IEC 60529
|
|
| resistance to incandescent wire |
750 °C conforming to IEC 60695-2-11
|
|
| shock resistance |
15 gn for 11 ms conforming to IEC 60068-2-27
|
|
| vibration resistance |
2 gn (f = 10...150 Hz) conforming to IEC 60068-2-6
|
|
| resistance to electrostatic discharge |
4 kV (contact) conforming to IEC 61000-4-2 level 3
8 kV (air) conforming to IEC 61000-4-2 level 3 |
|
| resistance to radiated fields |
10 V/m (80000000...2000000000 Hz) conforming to IEC 61000-4-3
level 3
|
|
| resistance to fast transients |
2 kV conforming to IEC 61000-4-4 level 3
|
|
| ambient air temperature for operation |
-5...60 °C conforming to IEC 61131-2
|
|
| ambient air temperature for storage |
-40...80 °C conforming to IEC 61131-2
|
|
| pollution degree |
2 conforming to IEC 60664-1
|
