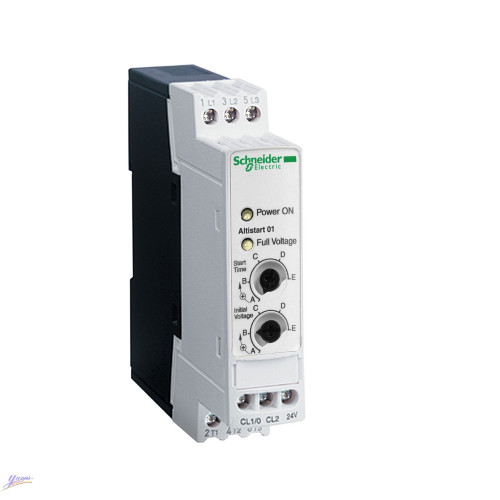

Schneider ATS01N103FT Soft Starter for Asynchronous Motors
Overview: The Schneider ATS01N103FT Soft Starter is engineered to provide superior control and protection for asynchronous motors in a variety of industrial applications. Designed for seamless integration and exceptional performance, this advanced soft starter enhances operational efficiency while extending motor life.
Key Features:
Advanced Soft Start Technology: Smoothly ramps up motor speed to minimize mechanical stress, reducing wear and tear on both the motor and connected equipment.
Integrated Overload Protection: Equipped with built-in overload protection, the ATS01N103FT safeguards your motor against potential damage caused by excessive current or temperature variations.
Adjustable Start and Stop Parameters: Customize the acceleration and deceleration times to match specific application requirements, optimizing performance and energy efficiency.
User-Friendly Interface: The intuitive LCD display and straightforward controls simplify setup and operation, allowing for quick adjustments and real-time monitoring of performance metrics.
Compact Design: Its space-saving, compact form factor ensures easy installation in tight spaces without compromising on performance.
Versatile Application Range: Suitable for a wide range of asynchronous motors, making it ideal for use in diverse industrial environments including pumps, fans, and compressors.
Technical Specifications:
- Voltage Range: [Specify Voltage Range]
- Current Rating: [Specify Current Rating]
- Temperature Range: [Specify Temperature Range]
- Dimensions: [Specify Dimensions]
- Weight: [Specify Weight]
- Compliance: Conforms to international standards for safety and reliability.
Benefits:
Enhanced Motor Longevity: By minimizing mechanical and electrical stress, the ATS01N103FT prolongs the life of your motor, reducing maintenance costs and downtime.
Energy Efficiency: The soft starter's controlled ramp-up and ramp-down capabilities contribute to lower energy consumption and operational cost savings.
Reduced Mechanical Stress: Smooth motor starts and stops minimize the impact on mechanical components, enhancing overall system reliability.
Improved System Performance: Optimize the performance of your motor-driven systems with adjustable settings that match your specific application needs.
Applications:
- Industrial Pumps: Ideal for managing the start-up and shut-down of various pump systems, enhancing operational efficiency.
- HVAC Systems: Perfect for controlling fans and blowers in heating, ventilation, and air conditioning systems.
- Compressor Units: Provides reliable control for compressor motors, improving performance and reducing wear.
Conclusion:
The Schneider ATS01N103FT Soft Starter represents a pivotal advancement in motor control technology, combining precision, reliability, and user convenience. Its advanced features and robust performance make it an essential component for optimizing asynchronous motor operations in industrial settings.
Discover the difference in motor control with the Schneider ATS01N103FT and elevate your system's efficiency today.
| range of product |
Altistart 01
|
|
|---|---|---|
| product or component type |
Soft starter
|
|
| product destination |
Asynchronous motors
|
|
| product specific application |
Simple machine
|
|
| device short name |
ATS01
|
|
| network number of phases |
1 phase
|
|
| [Us] rated supply voltage |
110...480 V - 10...10 %
|
|
| motor power kW |
0.37 kW 3 phases 230 V
0.55 kW 3 phases 230 V 1.1 kW 3 phases 400 V 0.37 kW 1 phase 230 V |
|
| motor power hp |
0.5 hp 3 phases 230 V
0.5 hp 3 phases 460 V 1.5 hp 3 phases 460 V |
|
| IcL starter rating |
3 A
|
|
| utilisation category |
AC-53B EN/IEC 60947-4-2
|
|
| current consumption |
15 A at nominal load
|
|
| type of start |
Start with voltage ramp
|
|
| power dissipation in W |
19 W in transient state
4 W at full load and at end of starting |
| assembly style |
With heat sink
|
|
|---|---|---|
| function available |
Integrated bypass
|
|
| supply voltage limits |
99...528 V
|
|
| supply frequency |
50...60 Hz - 5...5 %
|
|
| network frequency |
47.5...63 Hz
|
|
| output voltage |
<= power supply voltage
|
|
| [Uc] control circuit voltage |
110 V AC +/- 10 % 30 mA
24 V AC/DC +/- 10 % 25 mA 240 V AC +/- 10 % 65 mA |
|
| starting time |
1 s 100
5 s 20 Adjustable from 1 to 5 s |
|
| starting torque |
30...80 % of starting torque of motor connected directly on the
line supply
|
|
| discrete output current |
2 A DC-13
3 A AC-15 |
|
| tightening torque |
0.8 N.m
|
|
| electrical connection |
Cage type connector rigid 1 2.5 mm² AWG 14 control circuit
Cage type connector rigid 1 2.5 mm² AWG 14 power circuit Cage type connector rigid 2 1 mm² AWG 17 control circuit Cage type connector rigid 2 1 mm² AWG 17 power circuit Cage type connector flexible with cable end 1 2.5 mm² AWG 14 control circuit Cage type connector flexible with cable end 1 2.5 mm² AWG 14 power circuit Cage type connector flexible without cable end 1 2.5 mm² AWG 14 control circuit Cage type connector flexible without cable end 1 2.5 mm² AWG 14 power circuit Cage type connector flexible with cable end 2 0.75 mm² AWG 18 control circuit Cage type connector flexible with cable end 2 0.75 mm² AWG 18 power circuit Cage type connector flexible without cable end 2 1 mm² AWG 17 control circuit Cage type connector flexible without cable end 2 1 mm² AWG 17 power circuit |
|
| marking |
CE
|
|
| operating position |
Vertical +/- 10 degree
|
|
| height |
100 mm
|
|
| width |
23 mm
|
|
| depth |
100 mm
|
|
| product weight |
0.16 kg
|
|
| compatibility code |
ATS01N1
|
|
| Motor power range AC-3 |
0...0.5 kW at 200...240 V 1 phase
0...0.5 kW at 200...240 V 3 phases 0.55...1 kW at 200...240 V 3 phases 1.1...2 kW at 380...440 V 3 phases |
|
| motor starter type |
Soft starter
|
Schneider ATS01N103FT Soft Starter for Asynchronous Motor
- Brand: Schneider
- Product Code: ATS01N103FT
- Availability: 1000
Tags: Schneider ATS01N103FT, Soft Starter, Asynchronous Motor, Motor Control, Industrial Soft Starter, Schneider Electric, Motor Protection, Energy Efficiency, HVAC Systems, Pump Systems, Compressor Control
