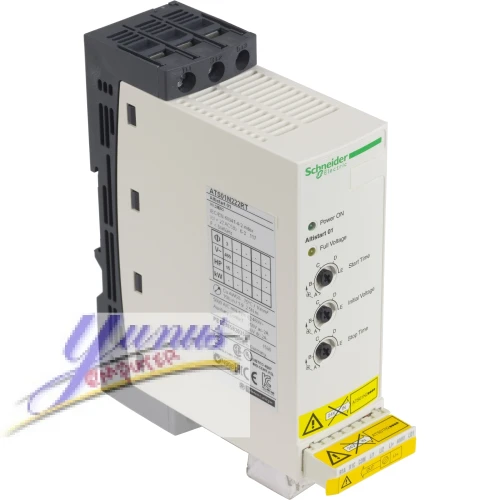

Schneider ATS01N222RT Soft Starter for Asynchronous Motor
Enhance the efficiency and longevity of your motor systems with the Schneider ATS01N222RT Soft Starter, an advanced solution engineered to provide smooth, reliable motor startup for asynchronous motors. This cutting-edge soft starter is designed to offer precise control over motor acceleration and deceleration, reducing mechanical stress and extending the lifespan of your equipment.
Key Features:
Smooth Motor Start and Stop: The ATS01N222RT ensures gradual acceleration and deceleration, minimizing inrush current and mechanical shock, which extends the life of both the motor and connected components.
Advanced Protection Functions: Integrated protection features, including overcurrent, overload, and phase loss protection, safeguard your motor and associated machinery from potential damage, ensuring reliable and uninterrupted operation.
Compact and Efficient Design: With its space-saving design, the ATS01N222RT offers a compact solution for motor control without compromising performance. Its robust construction is ideal for a range of industrial and commercial applications.
User-Friendly Interface: The intuitive control panel allows for easy programming and adjustment of startup parameters, providing flexibility to accommodate various motor applications and operational requirements.
Enhanced Durability: Built with high-quality materials and designed to withstand demanding environments, the ATS01N222RT offers exceptional durability and performance even in harsh conditions.
Energy Efficiency: By optimizing the motor start-up process, the ATS01N222RT helps to reduce energy consumption, contributing to overall operational cost savings and improved energy efficiency.
Applications:
The Schneider ATS01N222RT Soft Starter is ideal for use in a wide range of applications, including HVAC systems, water treatment plants, and industrial machinery. Its ability to handle various motor sizes and types makes it a versatile choice for diverse operational needs.
Technical Specifications:
- Voltage Range: [Specify voltage range]
- Current Rating: [Specify current rating]
- Control Type: [Specify control type, e.g., digital, analog]
- Dimensions: [Specify dimensions]
- Weight: [Specify weight]
Compliance and Certifications:
The ATS01N222RT Soft Starter complies with industry standards and certifications, ensuring reliable performance and safety. [List any specific certifications if applicable]
Optimize your motor control systems with the Schneider ATS01N222RT Soft Starter and experience enhanced operational efficiency and reliability. For more information or to request a quote, please contact us today.
range of product |
Altistart 01
|
|
---|---|---|
product or component type |
Soft starter
|
|
product destination |
Asynchronous motors
|
|
product specific application |
Simple machine
|
|
device short name |
ATS01
|
|
network number of phases |
3 phases
|
|
[Us] rated supply voltage |
460...480 V - 10...10 %
|
|
motor power hp |
10 hp 3 phases 460...480 V
15 hp 3 phases 460...480 V |
|
IcL starter rating |
22 A
|
|
utilisation category |
AC-53B EN/IEC 60947-4-2
|
|
current consumption |
110 A at nominal load
|
|
type of start |
Start with voltage ramp
|
|
power dissipation in W |
124.5 W in transient state
4.5 W at full load and at end of starting |
assembly style |
With heat sink
|
|
---|---|---|
function available |
Integrated bypass
|
|
supply voltage limits |
414...528 V
|
|
supply frequency |
50...60 Hz - 5...5 %
|
|
network frequency |
47.5...63 Hz
|
|
output voltage |
<= power supply voltage
|
|
[Uc] control circuit voltage |
Built into the starter
|
|
starting time |
1 s 100
10 s 10 5 s 20 Adjustable from 1 to 10 s |
|
deceleration time symb |
Adjustable from 1 to 10 s
|
|
starting torque |
30...80 % of starting torque of motor connected directly on the
line supply
|
|
discrete input type |
Logic LI1, LI2, BOOST stop, run and boost on start-up functions
<= 8 mA 27 kOhm
|
|
discrete input voltage |
24...40 V
|
|
discrete input logic |
Positive LI1, LI2, BOOST < 5 V and <= 0.2 mA > 13 V >= 0.5 mA
|
|
discrete output current |
2 A DC-13
3 A AC-15 |
|
discrete output type |
Open collector logic LO1 end of starting signal
Relay outputs R1A, R1C NO |
|
discrete output voltage |
24 V 6...30 V open collector logic
|
|
minimum switching current |
10 mA 6 V DC relay outputs
|
|
maximum switching current |
2 A 250 V AC inductive cos phi = 0.5 20 ms relay outputs
2 A 30 V DC inductive cos phi = 0.5 20 ms relay outputs |
|
display type |
1 LED green starter powered up
1 LED yellow nominal voltage reached |
|
tightening torque |
0.5 N.m
1.9...2.5 N.m |
|
electrical connection |
4 mm screw clamp terminal rigid 1 1...10 mm² AWG 8 power circuit
Screw connector rigid 1 0.5...2.5 mm² AWG 14 control circuit 4 mm screw clamp terminal rigid 2 1...6 mm² AWG 10 power circuit Screw connector rigid 2 0.5...1 mm² AWG 17 control circuit Screw connector flexible with cable end 1 0.5...1.5 mm² AWG 16 control circuit 4 mm screw clamp terminal flexible without cable end 1 1.5...10 mm² AWG 8 power circuit Screw connector flexible without cable end 1 0.5...2.5 mm² AWG 14 control circuit 4 mm screw clamp terminal flexible with cable end 2 1...6 mm² AWG 10 power circuit 4 mm screw clamp terminal flexible without cable end 2 1.5...6 mm² AWG 10 power circuit Screw connector flexible without cable end 2 0.5...1.5 mm² AWG 16 control circuit |
|
marking |
CE
|
|
operating position |
Vertical +/- 10 degree
|
|
height |
154 mm
|
|
width |
45 mm
|
|
depth |
131 mm
|
|
product weight |
0.56 kg
|
|
compatibility code |
ATS01N2
|
Schneider ATS01N222RT Soft Starter for Asynchronous Motor
- Brand: Schneider
- Product Code: ATS01N222RT
- Availability: 1000
Tags: Schneider, ATS01N222RT, Soft Starter, Asynchronous Motor, Motor Control, Industrial Automation, Motor Protection, Energy Efficiency, Schneider Electric, Soft Starter Benefits
