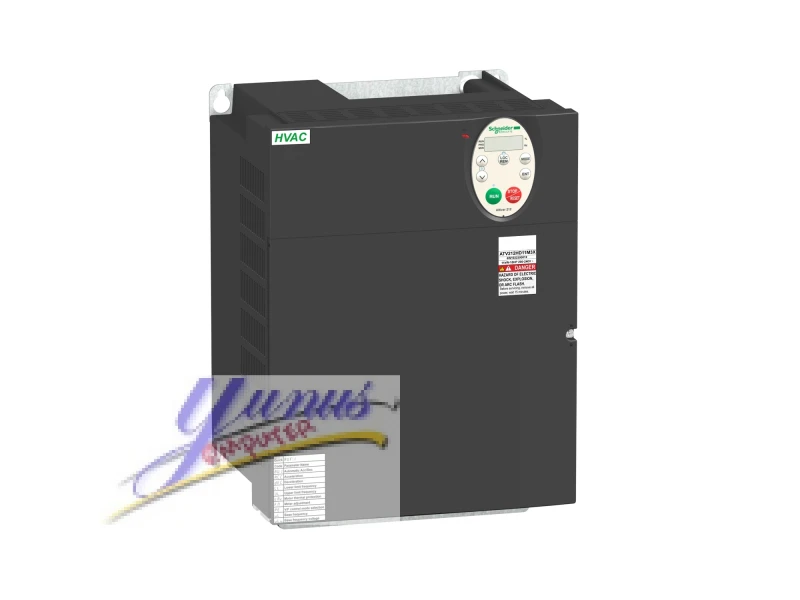

Schneider ATV212HD11M3X Variable Speed Drive ATV212 - 11kW
Optimize Your HVAC and Pumping Systems with Schneider ATV212HD11M3X
Introducing the Schneider ATV212HD11M3X, an advanced variable speed drive from the renowned ATV212 series. Designed for energy-efficient control of HVAC and pumping systems, this 11kW drive offers exceptional performance, reliability, and ease of integration. Whether you are looking to enhance the efficiency of your commercial buildings, industrial facilities, or municipal systems, the ATV212HD11M3X is the ideal solution.
Key Features and Benefits
Energy Efficiency: The Schneider ATV212HD11M3X is engineered to deliver significant energy savings. Its optimized design and advanced control algorithms reduce energy consumption, lowering operational costs and minimizing environmental impact.
Wide Compatibility: This variable speed drive is compatible with a range of motor types, including asynchronous and permanent magnet motors. It supports various communication protocols, ensuring seamless integration with your existing systems.
User-Friendly Interface: The intuitive interface and user-friendly programming make setup and operation straightforward. The built-in keypad and display provide real-time monitoring and diagnostics, simplifying maintenance and troubleshooting.
Advanced Protection Features: Equipped with comprehensive protection mechanisms, the ATV212HD11M3X safeguards your equipment against overloads, short circuits, and thermal stress. This ensures long-term reliability and reduces downtime.
Compact and Robust Design: The compact footprint of the ATV212HD11M3X allows for easy installation in confined spaces. Its robust construction ensures durability and resistance to harsh environmental conditions.
Technical Specifications
- Power Rating: 11kW (15HP)
- Input Voltage: 200-240V AC, 3-phase
- Output Frequency: 0.5 to 200 Hz
- Control Type: V/F (Voltage/Frequency) control, sensorless flux vector control
- Communication Protocols: Modbus, BACnet, Metasys N2, Apogee FLN
- Ambient Temperature Range: -10°C to +50°C (14°F to 122°F)
- Protection Rating: IP20
Applications
The Schneider ATV212HD11M3X is specifically designed for HVAC and pumping applications. It is ideal for:
- Commercial Buildings: Optimize the performance of HVAC systems, reducing energy consumption and improving indoor air quality.
- Industrial Facilities: Enhance the efficiency of pumping systems, ensuring reliable operation and lower operational costs.
- Municipal Systems: Improve the management of water and wastewater treatment plants with precise control and energy savings.
Why Choose Schneider Electric?
Schneider Electric is a global leader in energy management and automation solutions. With a commitment to innovation, quality, and sustainability, Schneider Electric provides products and services that help customers achieve their energy efficiency and operational goals. The ATV212HD11M3X reflects Schneider Electric's dedication to delivering cutting-edge technology and unmatched reliability.
Conclusion
Elevate the performance of your HVAC and pumping systems with the Schneider ATV212HD11M3X Variable Speed Drive. Its advanced features, robust design, and energy-efficient operation make it the perfect choice for a wide range of applications. Invest in the Schneider ATV212HD11M3X and experience the benefits of optimized control, reduced energy consumption, and enhanced system reliability.
| range of product |
Altivar 212
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| device short name |
ATV212
|
|
| product destination |
Asynchronous motors
|
|
| product specific application |
Pumps and fans in HVAC
|
|
| assembly style |
With heat sink
|
|
| network number of phases |
3 phases
|
|
| motor power kW |
11 kW
|
|
| motor power hp |
15 hp
|
|
| [Us] rated supply voltage |
200...240 V - 15...10 %
|
|
| supply voltage limits |
170...264 V
|
|
| supply frequency |
50...60 Hz - 5...5 %
|
|
| network frequency |
47.5...63 Hz
|
|
| EMC filter |
Without EMC filter
|
|
| line current |
34.4 A 240 V
42.1 A 200 V |
| apparent power |
17.6 kVA 240 V
|
|
|---|---|---|
| prospective line Isc |
22 kA
|
|
| continuous output current |
46.2 A 230 V
|
|
| maximum transient current |
50.8 A 60 s
|
|
| speed drive output frequency |
0.5...200 Hz
|
|
| nominal switching frequency |
12 kHz
|
|
| switching frequency |
12...16 kHz with derating factor
6...16 kHz adjustable |
|
| speed range |
1...10
|
|
| speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn
|
|
| torque accuracy |
+/- 15 %
|
|
| transient overtorque |
120 % of nominal motor torque +/- 10 % 60 s
|
|
| asynchronous motor control profile |
Voltage/frequency ratio, 2 points
Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) Flux vector control without sensor, standard Voltage/frequency ratio, 5 points Voltage/frequency ratio - Energy Saving, quadratic U/f |
|
| regulation loop |
Adjustable PI regulator
|
|
| motor slip compensation |
Not available in voltage/frequency ratio motor control
Automatic whatever the load Adjustable |
|
| local signalling |
1 LED red DC bus energized
|
|
| output voltage |
<= power supply voltage
|
|
| isolation |
Electrical between power and control
|
|
| type of cable |
IEC cable without mounting kit 1 45 °C copper 90 °C XLPE/EPR
IEC cable without mounting kit 1 45 °C copper 70 °C PVC UL 508 cable with UL Type 1 kit 3 40 °C copper 75 °C PVC |
|
| electrical connection |
Terminal 2.5 mm² AWG 14 VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F,
R, RES
Terminal 25 mm² AWG 3 L1/R, L2/S, L3/T |
|
| tightening torque |
4.5 N.m 40 lb.in L1/R, L2/S, L3/T
0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES |
|
| supply |
Internal supply for reference potentiometer (1 to 10 kOhm) 10.5
V DC +/- 5 % <= 10 A overload and short-circuit protection
Internal supply 24 V DC 21...27 V <= 200 A overload and short-circuit protection |
|
| analogue input number |
2
|
|
| analogue input type |
Switch-configurable voltage VIA 0...10 V DC 24 V max 30000 Ohm
10 bits
Configurable voltage VIB 0...10 V DC 24 V max 30000 Ohm 10 bits Configurable PTC probe VIB 0...6 probes 1500 Ohm Switch-configurable current VIA 0...20 mA 250 Ohm 10 bits |
|
| sampling duration |
2 ms +/- 0.5 ms F discrete
2 ms +/- 0.5 ms R discrete 2 ms +/- 0.5 ms RES discrete 3.5 ms +/- 0.5 ms VIA analog 22 ms +/- 0.5 ms VIB analog |
|
| response time |
2 ms +/- 0.5 ms FM analog
7 ms +/- 0.5 ms FLA, FLC discrete 7 ms +/- 0.5 ms FLB, FLC discrete 7 ms +/- 0.5 ms RY, RC discrete |
|
| accuracy |
+/- 0.6 % VIA for a temperature variation 60 °C
+/- 0.6 % VIB for a temperature variation 60 °C +/- 1 % FM for a temperature variation 60 °C |
|
| linearity error |
+/- 0.15 % of maximum value input VIA
+/- 0.15 % of maximum value input VIB +/- 0.2 % output FM |
|
| analogue output number |
1
|
|
| analogue output type |
Switch-configurable voltage FM 0...10 V DC 7620 Ohm 10 bits
Switch-configurable current FM 0...20 mA 970 Ohm 10 bits |
|
| discrete output number |
2
|
|
| discrete output type |
Configurable relay logic FLA, FLC NO 100000 cycles
Configurable relay logic FLB, FLC NC 100000 cycles Configurable relay logic RY, RC NO 100000 cycles |
|
| minimum switching current |
3 mA 24 V DC configurable relay logic
|
|
| maximum switching current |
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R
5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R |
|
| discrete input type |
Programmable F 24 V DC level 1 PLC 4700 Ohm
Programmable R 24 V DC level 1 PLC 4700 Ohm Programmable RES 24 V DC level 1 PLC 4700 Ohm |
|
| discrete input logic |
Positive logic (source) F, R, RES <= 5 V >= 11 V
Negative logic (sink) F, R, RES >= 16 V <= 10 V |
|
| acceleration and deceleration ramps |
Linear adjustable separately from 0.01 to 3200 s
Automatic based on the load |
|
| braking to standstill |
By DC injection
|
|
| protection type |
Motor phase break motor
Break on the control circuit drive Thermal power stage drive Overvoltages on the DC bus drive Against exceeding limit speed drive Against input phase loss drive With PTC probes motor Input phase breaks drive Line supply overvoltage and undervoltage drive Line supply undervoltage drive Overcurrent between output phases and earth drive Overheating protection drive Short-circuit between motor phases drive Thermal protection motor |
|
| dielectric strength |
2830 V DC between earth and power terminals
4230 V DC between control and power terminals |
|
| insulation resistance |
>= 1 MOhm 500 V DC for 1 minute
|
|
| frequency resolution |
0.024/50 Hz analog input
0.1 Hz display unit |
|
| communication port protocol |
APOGEE FLN
METASYS N2 BACnet Modbus LonWorks |
|
| connector type |
1 RJ45
1 open style |
|
| physical interface |
2-wire RS 485
|
|
| transmission frame |
RTU
|
|
| transmission rate |
9600 bps or 19200 bps
|
|
| data format |
8 bits, 1 stop, odd even or no configurable parity
|
|
| type of polarization |
No impedance
|
|
| number of addresses |
1...247
|
|
| communication service |
Monitoring inhibitable
Read holding registers (03) 2 words maximum Read device identification (43) Write multiple registers (16) 2 words maximum Time out setting from 0.1 to 100 s Write single register (06) |
|
| option card |
Communication card LonWorks
|
|
| operating position |
Vertical +/- 10 degree
|
|
| width |
245 mm
|
|
| height |
330 mm
|
|
| depth |
190 mm
|
|
| product weight |
11.55 kg
|
|
| power dissipation in W |
459 W
|
|
| air flow |
157 m3/h
|
|
| specific application |
HVAC
|
|
| IP degree of protection |
IP21
|
|
| Variable speed drive application selection |
Building - HVAC : compressor for scroll
Building - HVAC : fan Building - HVAC : pump |
|
| Motor power range AC-3 |
7...11 kW at 200...240 V 3 phases
|
|
| motor starter type |
Variable speed drive
|
