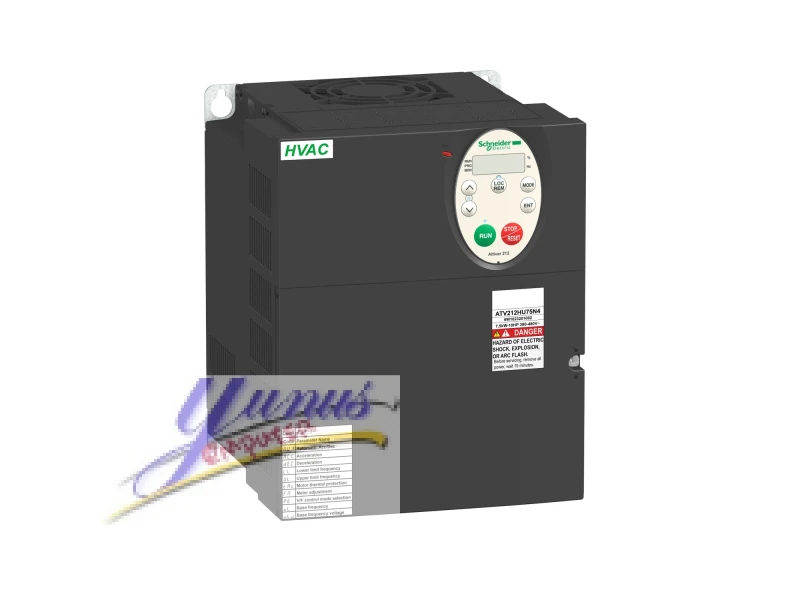

Schneider ATV212HU75N4 Variable Speed Drive - 7.5kW
Optimize Performance with Precision Engineering
The Schneider ATV212HU75N4 Variable Speed Drive is engineered to provide advanced motor control solutions with high efficiency and reliability. Designed for demanding applications, this drive integrates cutting-edge technology to deliver precise speed regulation, energy savings, and enhanced operational flexibility.
Key Features:
- Power Rating: 7.5kW (10 HP) - Suitable for medium-sized industrial and commercial applications requiring robust performance.
- Voltage Range: 380-480V AC - Ensures compatibility with various power systems and enhances versatility.
- Control Precision: Advanced vector control technology offers accurate motor speed and torque control, improving process efficiency and product quality.
- Compact Design: The drive’s compact form factor saves valuable panel space, allowing for easy integration into existing setups.
- User-Friendly Interface: Equipped with a clear and intuitive keypad for easy configuration and monitoring. The graphical display provides real-time feedback and diagnostics.
- Energy Efficiency: Features such as energy-saving algorithms and low harmonic distortion contribute to reduced operational costs and minimized environmental impact.
- Durability: Built to withstand harsh industrial environments with robust construction and protection against dust and moisture (IP20).
- Communication Options: Includes standard communication protocols for seamless integration with existing automation systems, enabling remote monitoring and control.
- Enhanced Safety: Incorporates comprehensive safety features, including overvoltage, undervoltage, and short-circuit protection, ensuring reliable operation and minimizing downtime.
Applications:
Ideal for a wide range of applications including pumps, fans, conveyors, and other machinery requiring variable speed control. The ATV212HU75N4 is particularly suited for sectors such as manufacturing, water treatment, HVAC, and more.
Benefits:
- Increased Efficiency: Precise motor control minimizes energy consumption, leading to significant cost savings.
- Operational Flexibility: Adjusts motor speed to match process requirements, enhancing productivity and product quality.
- Reliability: Robust design and built-in protection features ensure long-term, trouble-free operation.
- Ease of Use: Simplified setup and operation streamline maintenance and reduce the learning curve for operators.
Why Choose Schneider ATV212HU75N4?
Schneider Electric is a global leader in energy management and automation solutions, renowned for its innovation and commitment to quality. The ATV212HU75N4 Variable Speed Drive exemplifies this legacy, offering exceptional performance and reliability for industrial applications.
| range of product |
Altivar 212
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| device short name |
ATV212
|
|
| product destination |
Asynchronous motors
|
|
| product specific application |
Pumps and fans in HVAC
|
|
| assembly style |
With heat sink
|
|
| network number of phases |
3 phases
|
|
| motor power kW |
11 kW
|
|
| motor power hp |
15 hp
|
|
| [Us] rated supply voltage |
200...240 V - 15...10 %
|
|
| supply voltage limits |
170...264 V
|
|
| supply frequency |
50...60 Hz - 5...5 %
|
|
| network frequency |
47.5...63 Hz
|
|
| EMC filter |
Without EMC filter
|
|
| line current |
34.4 A 240 V
42.1 A 200 V |
| apparent power |
17.6 kVA 240 V
|
|
|---|---|---|
| prospective line Isc |
22 kA
|
|
| continuous output current |
46.2 A 230 V
|
|
| maximum transient current |
50.8 A 60 s
|
|
| speed drive output frequency |
0.5...200 Hz
|
|
| nominal switching frequency |
12 kHz
|
|
| switching frequency |
12...16 kHz with derating factor
6...16 kHz adjustable |
|
| speed range |
1...10
|
|
| speed accuracy |
+/- 10 % of nominal slip 0.2 Tn to Tn
|
|
| torque accuracy |
+/- 15 %
|
|
| transient overtorque |
120 % of nominal motor torque +/- 10 % 60 s
|
|
| asynchronous motor control profile |
Voltage/frequency ratio, 2 points
Voltage/frequency ratio, automatic IR compensation (U/f + automatic Uo) Flux vector control without sensor, standard Voltage/frequency ratio, 5 points Voltage/frequency ratio - Energy Saving, quadratic U/f |
|
| regulation loop |
Adjustable PI regulator
|
|
| motor slip compensation |
Not available in voltage/frequency ratio motor control
Automatic whatever the load Adjustable |
|
| local signalling |
1 LED red DC bus energized
|
|
| output voltage |
<= power supply voltage
|
|
| isolation |
Electrical between power and control
|
|
| type of cable |
IEC cable without mounting kit 1 45 °C copper 90 °C XLPE/EPR
IEC cable without mounting kit 1 45 °C copper 70 °C PVC UL 508 cable with UL Type 1 kit 3 40 °C copper 75 °C PVC |
|
| electrical connection |
Terminal 2.5 mm² AWG 14 VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F,
R, RES
Terminal 25 mm² AWG 3 L1/R, L2/S, L3/T |
|
| tightening torque |
4.5 N.m 40 lb.in L1/R, L2/S, L3/T
0.6 N.m VIA, VIB, FM, FLA, FLB, FLC, RY, RC, F, R, RES |
|
| supply |
Internal supply for reference potentiometer (1 to 10 kOhm) 10.5
V DC +/- 5 % <= 10 A overload and short-circuit protection
Internal supply 24 V DC 21...27 V <= 200 A overload and short-circuit protection |
|
| analogue input number |
2
|
|
| analogue input type |
Switch-configurable voltage VIA 0...10 V DC 24 V max 30000 Ohm
10 bits
Configurable voltage VIB 0...10 V DC 24 V max 30000 Ohm 10 bits Configurable PTC probe VIB 0...6 probes 1500 Ohm Switch-configurable current VIA 0...20 mA 250 Ohm 10 bits |
|
| sampling duration |
2 ms +/- 0.5 ms F discrete
2 ms +/- 0.5 ms R discrete 2 ms +/- 0.5 ms RES discrete 3.5 ms +/- 0.5 ms VIA analog 22 ms +/- 0.5 ms VIB analog |
|
| response time |
2 ms +/- 0.5 ms FM analog
7 ms +/- 0.5 ms FLA, FLC discrete 7 ms +/- 0.5 ms FLB, FLC discrete 7 ms +/- 0.5 ms RY, RC discrete |
|
| accuracy |
+/- 0.6 % VIA for a temperature variation 60 °C
+/- 0.6 % VIB for a temperature variation 60 °C +/- 1 % FM for a temperature variation 60 °C |
|
| linearity error |
+/- 0.15 % of maximum value input VIA
+/- 0.15 % of maximum value input VIB +/- 0.2 % output FM |
|
| analogue output number |
1
|
|
| analogue output type |
Switch-configurable voltage FM 0...10 V DC 7620 Ohm 10 bits
Switch-configurable current FM 0...20 mA 970 Ohm 10 bits |
|
| discrete output number |
2
|
|
| discrete output type |
Configurable relay logic FLA, FLC NO 100000 cycles
Configurable relay logic FLB, FLC NC 100000 cycles Configurable relay logic RY, RC NO 100000 cycles |
|
| minimum switching current |
3 mA 24 V DC configurable relay logic
|
|
| maximum switching current |
5 A 250 V AC resistive cos phi = 1 L/R = 0 ms FL, R
5 A 30 V DC resistive cos phi = 1 L/R = 0 ms FL, R 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms FL, R 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms FL, R |
|
| discrete input type |
Programmable F 24 V DC level 1 PLC 4700 Ohm
Programmable R 24 V DC level 1 PLC 4700 Ohm Programmable RES 24 V DC level 1 PLC 4700 Ohm |
|
| discrete input logic |
Positive logic (source) F, R, RES <= 5 V >= 11 V
Negative logic (sink) F, R, RES >= 16 V <= 10 V |
|
| acceleration and deceleration ramps |
Linear adjustable separately from 0.01 to 3200 s
Automatic based on the load |
|
| braking to standstill |
By DC injection
|
|
| protection type |
Motor phase break motor
Break on the control circuit drive Thermal power stage drive Overvoltages on the DC bus drive Against exceeding limit speed drive Against input phase loss drive With PTC probes motor Input phase breaks drive Line supply overvoltage and undervoltage drive Line supply undervoltage drive Overcurrent between output phases and earth drive Overheating protection drive Short-circuit between motor phases drive Thermal protection motor |
|
| dielectric strength |
2830 V DC between earth and power terminals
4230 V DC between control and power terminals |
|
| insulation resistance |
>= 1 MOhm 500 V DC for 1 minute
|
|
| frequency resolution |
0.024/50 Hz analog input
0.1 Hz display unit |
|
| communication port protocol |
APOGEE FLN
METASYS N2 BACnet Modbus LonWorks |
|
| connector type |
1 RJ45
1 open style |
|
| physical interface |
2-wire RS 485
|
|
| transmission frame |
RTU
|
|
| transmission rate |
9600 bps or 19200 bps
|
|
| data format |
8 bits, 1 stop, odd even or no configurable parity
|
|
| type of polarization |
No impedance
|
|
| number of addresses |
1...247
|
|
| communication service |
Monitoring inhibitable
Read holding registers (03) 2 words maximum Read device identification (43) Write multiple registers (16) 2 words maximum Time out setting from 0.1 to 100 s Write single register (06) |
|
| option card |
Communication card LonWorks
|
|
| operating position |
Vertical +/- 10 degree
|
|
| width |
245 mm
|
|
| height |
330 mm
|
|
| depth |
190 mm
|
|
| product weight |
11.55 kg
|
|
| power dissipation in W |
459 W
|
|
| air flow |
157 m3/h
|
|
| specific application |
HVAC
|
|
| IP degree of protection |
IP21
|
|
| Variable speed drive application selection |
Building - HVAC : compressor for scroll
Building - HVAC : fan Building - HVAC : pump |
|
| Motor power range AC-3 |
7...11 kW at 200...240 V 3 phases
|
|
| motor starter type |
Variable speed drive
|
