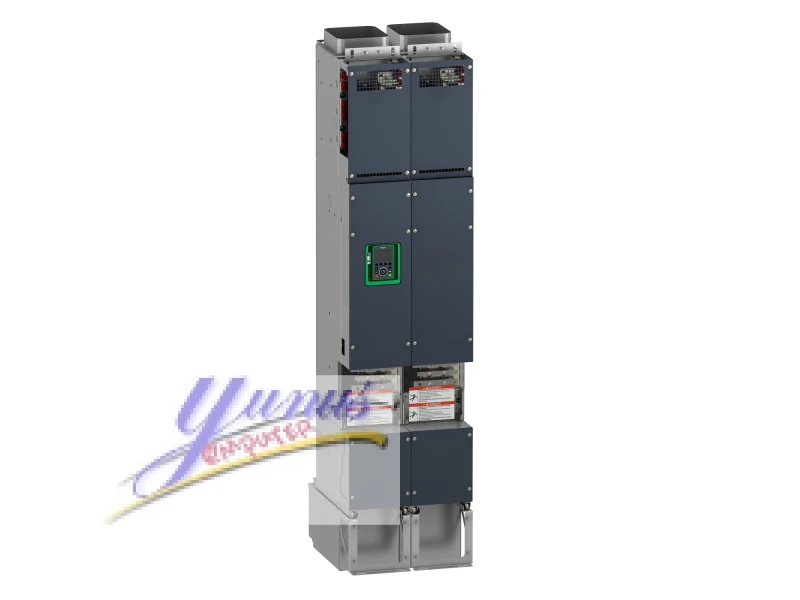

Schneider ATV9A0C20R4 Variable Speed Drive Altivar Process Modular, ATV900, Single Drive, 440V, 200 kW
The Schneider ATV9A0C20R4 Variable Speed Drive is part of the Altivar Process Modular ATV900 series, designed to meet the most demanding industrial applications. This high-performance drive is engineered for superior control, efficiency, and reliability, making it ideal for heavy-duty processes where precision and robustness are critical.
Key Features:
- High Power Capability: With a power rating of 200 kW, the ATV9A0C20R4 is perfect for large-scale applications, ensuring consistent and reliable performance in high-demand environments.
- Advanced Motor Control: The drive utilizes state-of-the-art vector control technology, providing precise speed and torque management, even under fluctuating load conditions. This results in optimized energy usage and extended motor life.
- Modular Design: The Altivar Process Modular architecture allows for flexible integration into various system configurations, offering scalability and ease of maintenance. This modularity supports quick replacement of components, minimizing downtime.
- Comprehensive Connectivity: Equipped with a wide range of communication protocols, including Ethernet, Modbus, and Profibus, the ATV9A0C20R4 ensures seamless integration into modern industrial networks. This connectivity facilitates real-time monitoring and control, enhancing overall system efficiency.
- Robust Construction: Built to withstand harsh industrial environments, this drive features a rugged design with advanced protection against overvoltage, overload, and thermal stress, ensuring longevity and minimal maintenance.
- EcoStruxure™ Ready: Fully compatible with Schneider Electric’s EcoStruxure™ platform, the ATV9A0C20R4 enables advanced analytics and remote management, supporting predictive maintenance and energy optimization strategies.
- Energy Efficiency: The drive’s high-efficiency design contributes to significant energy savings, aligning with sustainability goals and reducing operational costs. It supports variable torque applications, making it an excellent choice for pumps, fans, and compressors.
- Comprehensive Safety Features: Integrated safety functions, such as Safe Torque Off (STO) and Safe Stop 1 (SS1), ensure compliance with international safety standards, providing enhanced protection for both equipment and personnel.
Applications:
The Schneider ATV9A0C20R4 is ideal for a wide range of industrial applications, including:
- Pumping Systems: Ensuring optimal flow and pressure control in water treatment plants, irrigation systems, and wastewater management.
- HVAC Systems: Enhancing the efficiency of heating, ventilation, and air conditioning systems in large commercial and industrial buildings.
- Material Handling: Providing precise control for conveyors, hoists, and other material handling equipment in manufacturing and logistics facilities.
- Process Industries: Supporting critical operations in the chemical, oil & gas, and food & beverage industries, where consistent and reliable performance is essential.
Technical Specifications:
- Power Rating: 200 kW
- Input Voltage: 440V
- Frequency Range: 0.5 Hz to 400 Hz
- Control Method: Vector control with or without sensor, V/F control
- Efficiency: Up to 98%
- Operating Temperature: -15°C to +50°C
- Protection Class: IP20 (higher protection classes available with optional enclosures)
- Certifications: CE, UL, CSA, IEC
The Schneider ATV9A0C20R4 Variable Speed Drive is a top-tier solution for industries requiring high power, precision control, and advanced connectivity. Its combination of robust design, energy efficiency, and comprehensive safety features makes it a reliable and future-proof choice for optimizing industrial processes.
| range of product |
Altivar Process ATV900
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| product specific application |
Process and utilities
|
|
| device short name |
ATV9A0
|
|
| variant |
Modular version
|
|
| product destination |
Synchronous motors
Asynchronous motors |
|
| mounting mode |
Cabinet mount
|
|
| kit composition |
Mechanical mounting kits
Power connection Set of fuses 1 control unit 2 power module 160 kW 1 front cover |
|
| EMC filter |
Integrated conforming to EN/IEC 61800-3 category C3 with <= 300
m motor cable maxi
|
|
| IP degree of protection |
IP00 conforming to IEC 61800-5-1 for IP21 or IP54 cabinet
integration
IP00 conforming to IEC 60529 for IP21 or IP54 cabinet integration |
|
| type of cooling |
Forced convection
|
|
| supply frequency |
50...60 Hz +/- 5 %
|
|
| network number of phases |
3 phases
|
|
| [Us] rated supply voltage |
440 V - 15...10 %
|
|
| motor power kW |
200 kW at 440 V (normal duty)
160 kW at 440 V (heavy duty) |
|
| line current |
325 A at 440 V (normal duty)
269 A at 440 V (heavy duty) |
|
| prospective line Isc |
50 kA
|
|
| apparent power |
248 kVA at 440 V (normal duty)
205 kVA at 440 V (heavy duty) |
|
| continuous output current |
370 A at 2.5 kHz (normal duty)
302 A at 2.5 kHz (heavy duty) |
|
| maximum transient current |
453 A during 60 s (heavy duty)
444 A during 60 s (normal duty) |
|
| asynchronous motor control profile |
Variable torque standard
Optimized torque mode Constant torque standard |
|
| synchronous motor control profile |
Permanent magnet motor
Synchronous reluctance motor |
|
| speed drive output frequency |
0.1...599 Hz
|
|
| nominal switching frequency |
2.5 kHz
|
|
| switching frequency |
2...8 kHz adjustable
2.5...8 kHz with derating factor |
|
| safety function |
STO (safe torque off) SIL 3
|
|
| communication port protocol |
Modbus serial
Ethernet/IP Modbus TCP |
|
| option module |
Slot A : communication module for Profibus DP V1
Slot A : communication module for Profinet Slot A : communication module for DeviceNet Slot A : communication module for CANopen daisy chain RJ45 Slot A : communication module for CANopen SUB-D 9 Slot A : communication module for CANopen screw terminals Slot A : communication module for EtherCAT Slot A/slot B/slot C : digital and analog I/O extension module Slot A/slot B/slot C : output relay extension module Slot B : analog encoder interface module Slot B : resolver encoder interface module Slot B : digital encoder interface module for 5/12 V |
| motor slip compensation |
Not available in permanent magnet motor law
Adjustable Automatic whatever the load Can be suppressed |
|
|---|---|---|
| acceleration and deceleration ramps |
Linear adjustable separately from 0.01...9999 s
|
|
| protection type |
Safe torque off motor
Motor phase break motor Safe torque off drive Overheating drive Short-circuit protection drive Motor phase break drive Overspeed drive Break on the control circuit drive Overvoltages on the DC bus drive Overload of output voltage drive Line supply overvoltage drive Line supply phase loss drive Line supply undervoltage drive Overcurrent between output phases and earth drive Thermal protection motor Thermal protection drive |
|
| frequency resolution |
0.012/50 Hz analog input
0.1 Hz display unit |
|
| electrical connection |
Removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 control
Screw terminal line side M10 x 2 bars motor |
|
| connector type |
2 RJ45 for Ethernet IP/Modbus TCP on the control block
1 RJ45 for Modbus serial on the control block |
|
| physical interface |
2-wire RS 485 for Modbus serial
|
|
| transmission frame |
RTU for Modbus serial
|
|
| transmission rate |
10/100 Mbit/s for Ethernet IP/Modbus TCP
4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial |
|
| exchange mode |
Half duplex, full duplex, autonegotiation for Ethernet IP/Modbus
TCP
|
|
| data format |
8 bits, configurable odd, even or no parity for Modbus serial
|
|
| type of polarization |
No impedance for Modbus serial
|
|
| number of addresses |
For Modbus serial
|
|
| method of access |
Slave for Modbus TCP
|
|
| supply |
External supply for digital inputs : 24 V DC 19...30 V <= 1.25
mA overload and short-circuit protection
Internal supply for reference potentiometer (1 to 10 kOhm) : 10.5 V DC +/- 5 % <= 10 mA overload and short-circuit protection Internal supply for digital inputs and STO : 24 V DC 21...27 V <= 200 mA overload and short-circuit protection |
|
| local signalling |
LED 3 mono/dual colour local diagnostic
LED 5 dual colour embedded communication status LED 2 dual colour communication module status |
|
| analogue input type |
Software-configurable voltage AI1, AI3 0...10 V DC 30 kOhm 12
bits
Software-configurable current AI1, AI3 0...20 mA/4...20 mA 250 Ohm 12 bits Software-configurable voltage AI2 +/- 10 V DC 30 kOhm 12 bits Software-configurable voltage AI2 0...10 V DC 30 kOhm 12 bits |
|
| discrete input type |
Safe torque off STOA, STOB 24 V DC <= 30 V > 2.2 kOhm
Programmable DI1...DI8 24 V DC <= 30 V 3.5 kOhm Programmable as pulse input DI7, DI8 0...30 kHz 24 V DC <= 30 V |
|
| input compatibility |
Level 1 PLC EN/IEC 61131-2 STOA, STOB discrete input
Level 1 PLC EN/IEC 61131-2 DI1...DI8 discrete input Level 1 PLC IEC 65A-68 DI7, DI8 pulse input |
|
| discrete input logic |
Positive logic (source) STOA, STOB < 5 V > 11 V
Positive logic (source) DI1...DI8 < 5 V > 11 V Negative logic (sink) DI1...DI8 > 16 V < 10 V Positive logic (source) DI7, DI8 < 0.6 V > 2.5 V |
|
| analogue output type |
Software-configurable voltage AQ1, AQ2 0...10 V DC 470 Ohm 10
bits
Software-configurable current AQ1, AQ2 0...20 mA 500 Ohm 10 bits |
|
| discrete output type |
Logic output DQ+ 0...1 kHz <= 30 V DC 100 mA
Programmable as pulse output DQ+ 0...30 kHz <= 30 V DC 20 mA Logic output DQ- 0...1 kHz <= 30 V DC 100 mA |
|
| sampling duration |
2 ms +/- 0.5 ms DI1...DI8 discrete input
5 ms +/- 1 ms DI7, DI8 pulse input 1 ms +/- 1 ms AI1, AI2, AI3 analog input 5 ms +/- 1 ms AQ1, AQ2 analog output |
|
| accuracy |
+/- 0.6 % AI1, AI2, AI3 for a temperature variation 60 °C analog
input
+/- 1 % AQ1, AQ2 for a temperature variation 60 °C analog output |
|
| linearity error |
+/- 0.15 % of maximum value analog input AI1, AI2, AI3
+/- 0.2 % analog output AQ1, AQ2 |
|
| relay output type |
Configurable relay logic R1 fault relay NO/NC 100000 cycles
Configurable relay logic R2 sequence relay NO 1000000 cycles Configurable relay logic R3 sequence relay NO 1000000 cycles |
|
| refresh time |
5 ms +/- 0.5 ms R1, R2, R3 relay output
|
|
| minimum switching current |
5 mA 24 V DC R1, R2, R3 relay output
|
|
| maximum switching current |
3 A 250 V AC resistive 1 R1 relay output
3 A 30 V DC resistive 1 R1 relay output 2 A 250 V AC inductive 0.4 7 ms R1 relay output 2 A 30 V DC inductive 0.4 7 ms R1 relay output 5 A 250 V AC resistive 1 R2, R3 relay output 5 A 30 V DC resistive 1 R2, R3 relay output 2 A 250 V AC inductive 0.4 7 ms R2, R3 relay output 2 A 30 V DC inductive 0.4 7 ms R2, R3 relay output |
| insulation resistance |
> 1 MOhm 440 V DC 1 min earth
|
|
|---|---|---|
| noise level |
70 dB 86/188/EEC
|
|
| power dissipation in W |
4180 W forced convection 2.5 kHz
|
|
| THDI |
<= 48 % full load conforming to IEC 61000-3-12
|
|
| electromagnetic compatibility |
1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to
IEC 61000-4-5
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
|
| pollution degree |
2 EN/IEC 61800-5-1
|
|
| vibration resistance |
0.5 gn 13...200 Hz IEC 60068-2-6
1.5 mm peak to peak 2...13 Hz IEC 44068-2-6 |
|
| shock resistance |
7 gn 11 ms IEC 44068-2-27
|
|
| relative humidity |
5...95 % without condensation conforming to IEC 44068-2-3
|
|
| ambient air temperature for operation |
40...50 °C with derating factor
-10...40 °C without |
|
| ambient air temperature for storage |
-40...70 °C
|
|
| operating altitude |
1000...4800 m with current derating 1 % per 100 m
<= 1000 m without |
|
| environmental characteristic |
Chemical pollution resistance class 3C3 EN/IEC 60721-3-3
Dust pollution resistance class 3S3 EN/IEC 60721-3-3 |
|
| standards |
EN/IEC 61800-3
EN/IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 |
|
| product certifications |
REACH
TÜV UL CUL |
|
| marking |
CE
|
