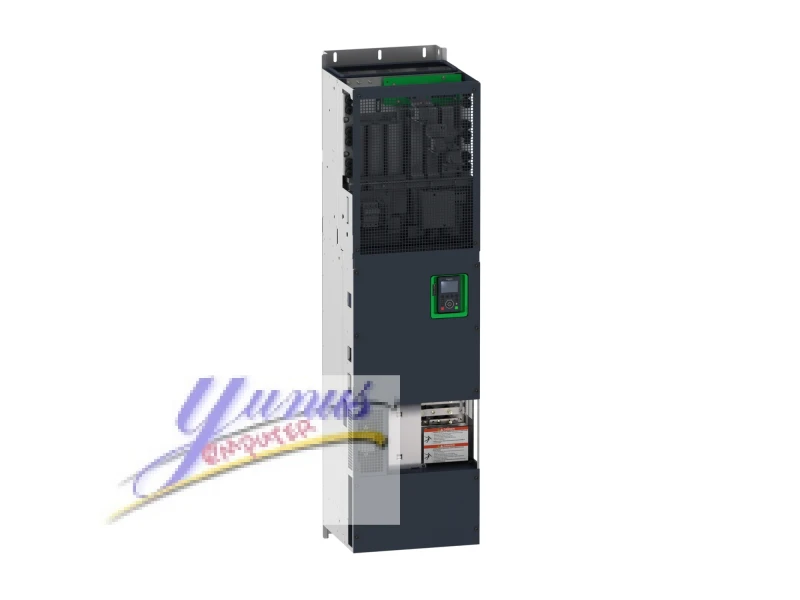

Schneider ATV9B0C13Q6 Variable Speed Drive (VSD) - Altivar Process Modular, ATV900 Series, Low Harmonic/Regen Drive
The Schneider ATV9B0C13Q6 Variable Speed Drive (VSD) from the Altivar Process Modular series is an exceptional addition to the ATV900 lineup, specifically engineered to provide unparalleled control and efficiency in industrial applications requiring variable speed operations. Renowned for its cutting-edge technology, this drive offers enhanced performance, reliability, and energy efficiency, making it an ideal choice for diverse industrial sectors.
Features:
Low Harmonic/Regen Capability: The ATV9B0C13Q6 boasts an advanced low harmonic/regeneration capability, effectively mitigating harmonics while allowing for regenerative power in the system. This feature ensures optimized power consumption and reduced strain on the electrical network, leading to increased operational efficiency and cost savings.
Modular Design: Its modular design allows for easy customization and scalability, catering to specific application requirements. The adaptability and flexibility of this drive make it suitable for a wide range of industrial setups, offering seamless integration and improved functionality.
Advanced Control Algorithms: Equipped with state-of-the-art control algorithms, this VSD ensures precise and responsive motor control, resulting in smoother operations, reduced motor stress, and extended equipment lifespan.
Comprehensive Protection: With built-in protective measures, including short circuit protection, thermal overload protection, and integrated safety features, the ATV9B0C13Q6 ensures the safety of both the drive itself and the connected equipment, minimizing downtime and maximizing operational continuity.
Benefits:
Energy Efficiency: By optimizing energy consumption and reducing harmonics, this drive contributes significantly to energy efficiency, leading to reduced operational costs and a smaller environmental footprint.
Enhanced Performance: The high-performance capabilities of the ATV9B0C13Q6 drive result in improved process control, increased productivity, and overall operational excellence, meeting the demands of even the most complex industrial applications.
Reliability and Durability: Schneider's commitment to quality ensures the reliability and durability of this drive, offering consistent performance and longevity, thereby minimizing maintenance requirements and associated costs.
Applications:
The ATV9B0C13Q6 Variable Speed Drive finds extensive application in various industries, including but not limited to:
- Manufacturing
- Oil and Gas
- Water and Wastewater
- Mining
- HVAC
Conclusion:
The Schneider ATV9B0C13Q6 Variable Speed Drive, part of the Altivar Process Modular series, represents the pinnacle of innovation and functionality in the realm of variable speed drives. Engineered with precision and built on Schneider's legacy of excellence, this drive is a testament to cutting-edge technology, offering unmatched performance, reliability, and efficiency for diverse industrial applications.
Unlock the full potential of your industrial processes with the ATV9B0C13Q6 – a symbol of superior engineering and unmatched reliability in variable speed drive technology.
| range of product |
Altivar Process ATV900
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| device short name |
ATV9B0
|
|
| variant |
Modular version
|
|
| product destination |
Synchronous motors
Asynchronous motors |
|
| mounting mode |
Cabinet mount
|
|
| kit composition |
Mechanical mounting kits
Power connection Set of fuses 1 control unit 1 power module 200 kW |
|
| EMC filter |
Integrated conforming to EN/IEC 61800-3 category C3 with <= 300
m motor cable maxi
|
|
| IP degree of protection |
IP00 conforming to IEC 61800-5-1 for IP21 or IP54 cabinet
integration
IP00 conforming to IEC 60529 for IP21 or IP54 cabinet integration |
|
| degree of protection |
UL type 1 UL 61800-5-1 cabinet integration
UL type 12 UL 61800-5-1 cabinet integration |
|
| type of cooling |
Forced convection
|
|
| supply frequency |
50...60 Hz +/- 5 %
|
|
| network number of phases |
3 phases
|
|
| [Us] rated supply voltage |
690 V - 10...15 %
|
|
| motor power kW |
132 kW at 690 V (normal duty)
110 kW at 690 V (heavy duty) 132 kW at 690 V (normal duty) regenerative mode 110 kW at 690 V (heavy duty) regenerative mode |
|
| line current |
122 A at 690 V (normal duty)
102 A at 690 V (heavy duty) 99 A at 690 V (normal duty) regenerative mode 82 A at 690 V (heavy duty) regenerative mode |
|
| prospective line Isc |
50 kA
|
|
| apparent power |
146 kVA at 690 V (normal duty)
122 kVA at 690 V (heavy duty) 119 kVA at 690 V (normal duty) regenerative mode 98 kVA at 690 V (heavy duty) regenerative mode |
|
| continuous output current |
145 A at 2.5 kHz (normal duty)
125 A at 2.5 kHz (heavy duty) 145 A at 2.5 kHz (normal duty) regenerative mode 125 A at 2.5 kHz (heavy duty) regenerative mode |
|
| maximum transient current |
174 A during 60 s (normal duty)
187.5 A during 60 s (heavy duty) 174 A during 60 s regenerative mode (normal duty) 187.5 A during 60 s regenerative mode (heavy duty) |
|
| speed drive output frequency |
0.1...599 Hz
|
|
| nominal switching frequency |
2.5 kHz
|
|
| switching frequency |
2...4.9 kHz adjustable with derating factor
|
|
| safety function |
STO (safe torque off) SIL 3
|
|
| communication port protocol |
Ethernet/IP
Modbus TCP Modbus serial |
|
| option module |
Slot A : communication module for Profibus DP V1
Slot A : communication module for Profinet Slot A : communication module for DeviceNet Slot A : communication module for CANopen daisy chain RJ45 Slot A : communication module for CANopen SUB-D 9 Slot A : communication module for CANopen screw terminals Slot A : communication module for EtherCAT Slot A/slot B/slot C : digital and analog I/O extension module Slot A/slot B/slot C : output relay extension module Slot B : analog encoder interface module Slot B : resolver encoder interface module Slot B : digital encoder interface module for 5/12 V |
| motor slip compensation |
Not available in permanent magnet motor law
Automatic whatever the load Can be suppressed Adjustable |
|
|---|---|---|
| acceleration and deceleration ramps |
Linear adjustable separately from 0.01...9999 s
|
|
| protection type |
Safe torque off motor
Motor phase break motor Safe torque off drive Overheating drive Short-circuit protection drive Motor phase break drive Overspeed drive Break on the control circuit drive Overvoltages on the DC bus drive Overload of output voltage drive Line supply overvoltage drive Line supply phase loss drive Line supply undervoltage drive Overcurrent between output phases and earth drive Thermal protection motor Thermal protection drive |
|
| frequency resolution |
0.012/50 Hz analog input
0.1 Hz display unit |
|
| electrical connection |
Removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 control
Screw terminal line side M10 x 2 bars motor |
|
| connector type |
2 RJ45 for Ethernet IP/Modbus TCP on terminal
1 RJ45 for Modbus serial on terminal |
|
| physical interface |
2-wire RS 485 for Modbus serial
|
|
| transmission frame |
RTU for Modbus serial
|
|
| transmission rate |
10/100 Mbit/s for Ethernet IP/Modbus TCP
4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial |
|
| data format |
8 bits, configurable odd, even or no parity for Modbus serial
|
|
| type of polarization |
No impedance for Modbus serial
|
|
| number of addresses |
For Modbus serial
|
|
| method of access |
Slave for Modbus TCP
|
|
| analogue input type |
Software-configurable voltage AI1, AI3 0...10 V DC 30 kOhm 12
bits
Software-configurable current AI1, AI3 0...20 mA/4...20 mA 250 Ohm 12 bits Software-configurable voltage AI2 +/- 10 V DC 30 kOhm 12 bits Software-configurable voltage AI2 0...10 V DC 30 kOhm 12 bits |
| THDI |
<= 5 % full load conforming to IEEE 519
|
|
|---|---|---|
| electromagnetic compatibility |
1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to
IEC 61000-4-5
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
|
| pollution degree |
2 EN/IEC 61800-5-1
|
|
| vibration resistance |
1.5 mm peak to peak 2...13 Hz IEC 60068-2-6
0.5 gn 13...200 Hz IEC 60068-2-6 |
|
| shock resistance |
4 gn 11 ms IEC 60068-2-27
|
|
| relative humidity |
5...95 % without condensation conforming to IEC 60068-2-3
|
|
| ambient air temperature for operation |
40...50 °C with derating factor
-5...40 °C without |
|
| ambient air temperature for storage |
-40...70 °C
|
|
| operating altitude |
<= 2000 m with current derating above 1000m
|
|
| environmental characteristic |
Chemical pollution resistance class 3C3 EN/IEC 60721-3-3
Dust pollution resistance class 3S3 EN/IEC 60721-3-3 |
|
| standards |
EN/IEC 61800-3
EN/IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 |
|
| product certifications |
REACH
UL TÜV CUL |
|
| marking |
CE
|
