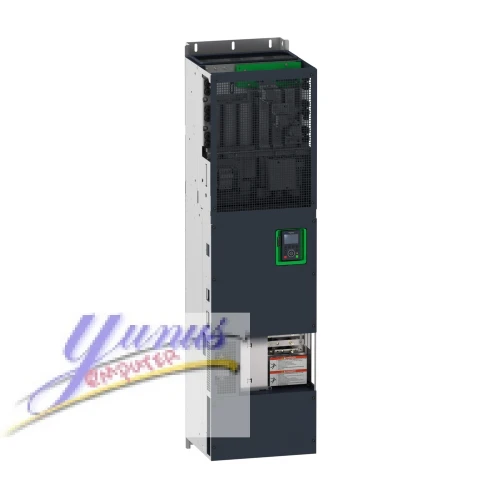

Schneider ATV9B0C20N6 Variable Speed Drive - Altivar Process Modular, ATV900, Low Harmonic/Regen Drive
The Schneider ATV9B0C20N6 is a cutting-edge variable speed drive from the Altivar Process Modular series, designed to meet the most demanding industrial requirements. This drive is engineered for applications that prioritize energy efficiency, process optimization, and seamless integration into existing automation systems. The ATV900 series is renowned for its advanced features, making it an ideal solution for industries seeking high-performance motor control with minimal harmonic distortion and regenerative capabilities.
Key Features and Benefits:
Low Harmonic Distortion: The ATV9B0C20N6 is equipped with active front-end technology, which significantly reduces harmonic distortion. This ensures compliance with stringent power quality standards, minimizes stress on the electrical network, and improves overall system efficiency.
Regenerative Functionality: With its built-in regenerative braking feature, this drive can recover and feed back excess energy into the power grid, leading to substantial energy savings, especially in applications with frequent deceleration or braking cycles.
High Performance and Reliability: The drive offers robust motor control, capable of handling high-inertia loads with precision and stability. Its advanced algorithms ensure smooth operation, reduced mechanical stress, and extended equipment lifespan.
Modular Design for Flexibility: The modular architecture of the ATV900 series allows for easy customization and scalability. Whether you need a standalone drive or integration into a complex system, the ATV9B0C20N6 provides the flexibility to adapt to your specific requirements.
Seamless Integration with Industrial Networks: The ATV9B0C20N6 supports a wide range of communication protocols, including Ethernet, Modbus, and CANopen, ensuring seamless integration into existing automation systems and facilitating real-time data exchange for improved process control.
Enhanced Energy Efficiency: The drive is designed with energy efficiency in mind, featuring advanced motor control techniques that optimize energy consumption while maintaining high performance. This not only reduces operating costs but also contributes to sustainable industrial practices.
User-Friendly Interface and Advanced Diagnostics: The intuitive interface simplifies configuration and monitoring, while the built-in diagnostics and predictive maintenance features help prevent downtime and ensure the drive operates at peak performance.
Technical Specifications:
- Power Rating: [Insert specific power rating]
- Voltage Range: [Insert voltage range]
- Communication Protocols: Ethernet, Modbus, CANopen, etc.
- Harmonic Distortion: THDi < [Insert value]
- Regenerative Efficiency: Up to [Insert percentage]
- Operating Temperature: [Insert range]
- Protection Class: [Insert IP rating]
The Schneider ATV9B0C20N6 is the ideal choice for industries looking to enhance their motor control systems with a reliable, energy-efficient, and versatile variable speed drive. Its advanced features and modular design make it a future-proof investment for any industrial application.
Applications:
This drive is particularly well-suited for industries such as:
- Water and Wastewater Treatment
- Oil and Gas
- Mining and Metals
- Pulp and Paper
- Material Handling
- HVAC Systems
Upgrade your motor control system with the Schneider ATV9B0C20N6 and experience unparalleled performance, efficiency, and reliability in your industrial operations.
| range of product |
Altivar Process ATV900
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| device short name |
ATV9B0
|
|
| variant |
Modular version
|
|
| product destination |
Asynchronous motors
Synchronous motors |
|
| mounting mode |
Cabinet mount
|
|
| kit composition |
Mechanical mounting kits
Power connection Set of fuses 1 control unit 1 power module 200 kW |
|
| EMC filter |
Integrated conforming to EN/IEC 61800-3 category C3 with <= 300
m motor cable maxi
|
|
| IP degree of protection |
IP00 conforming to IEC 61800-5-1 for IP21 or IP54 cabinet
integration
IP00 conforming to IEC 60529 for IP21 or IP54 cabinet integration |
|
| degree of protection |
UL type 1 UL 61800-5-1 cabinet integration
UL type 12 UL 61800-5-1 cabinet integration |
|
| type of cooling |
Forced convection
|
|
| supply frequency |
50...60 Hz +/- 5 %
|
|
| network number of phases |
3 phases
|
|
| [Us] rated supply voltage |
500 V - 10...15 %
|
|
| motor power kW |
132 kW at 500 V (normal duty)
110 kW at 500 V (heavy duty) 110 kW at 500 V (normal duty) regenerative mode 90 kW at 500 V (heavy duty) regenerative mode |
|
| line current |
141 A at 500 V (heavy duty)
169 A at 500 V (normal duty) 114 A at 500 V (normal duty) regenerative mode 92 A at 500 V (heavy duty) regenerative mode |
|
| prospective line Isc |
50 kA
|
|
| apparent power |
146 kVA at 500 V (normal duty)
122 kVA at 500 V (heavy duty) 98 kVA at 500 V (normal duty) regenerative mode 80 kVA at 500 V (heavy duty) regenerative mode |
|
| continuous output current |
215 A at 2.5 kHz (normal duty)
175 A at 2.5 kHz (heavy duty) 175 A at 2.5 kHz (normal duty) regenerative mode 145 A at 2.5 kHz (heavy duty) regenerative mode |
|
| maximum transient current |
258 A during 60 s (normal duty)
262.5 A during 60 s (heavy duty) 210 A during 60 s regenerative mode (normal duty) 217.5 A during 60 s regenerative mode (heavy duty) |
|
| speed drive output frequency |
0.1...599 Hz
|
|
| nominal switching frequency |
2.5 kHz
|
|
| switching frequency |
2...4.9 kHz adjustable with derating factor
|
|
| safety function |
STO (safe torque off) SIL 3
|
|
| communication port protocol |
Modbus serial
Ethernet/IP Modbus TCP |
|
| option module |
Slot A : communication module for Profibus DP V1
Slot A : communication module for Profinet Slot A : communication module for DeviceNet Slot A : communication module for CANopen daisy chain RJ45 Slot A : communication module for CANopen SUB-D 9 Slot A : communication module for CANopen screw terminals Slot A : communication module for EtherCAT Slot A/slot B/slot C : digital and analog I/O extension module Slot A/slot B/slot C : output relay extension module Slot B : analog encoder interface module Slot B : resolver encoder interface module Slot B : digital encoder interface module for 5/12 V |
| motor slip compensation |
Can be suppressed
Automatic whatever the load Not available in permanent magnet motor law Adjustable |
|
|---|---|---|
| acceleration and deceleration ramps |
Linear adjustable separately from 0.01...9999 s
|
|
| protection type |
Safe torque off motor
Motor phase break motor Safe torque off drive Overheating drive Short-circuit protection drive Motor phase break drive Overspeed drive Break on the control circuit drive Overvoltages on the DC bus drive Overload of output voltage drive Line supply overvoltage drive Line supply phase loss drive Line supply undervoltage drive Overcurrent between output phases and earth drive Thermal protection motor Thermal protection drive |
|
| frequency resolution |
0.012/50 Hz analog input
0.1 Hz display unit |
|
| electrical connection |
Removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 control
Screw terminal line side M10 x 2 bars motor |
|
| connector type |
2 RJ45 for Ethernet IP/Modbus TCP on terminal
1 RJ45 for Modbus serial on terminal |
|
| physical interface |
2-wire RS 485 for Modbus serial
|
|
| transmission frame |
RTU for Modbus serial
|
|
| transmission rate |
10/100 Mbit/s for Ethernet IP/Modbus TCP
4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial |
|
| data format |
8 bits, configurable odd, even or no parity for Modbus serial
|
|
| type of polarization |
No impedance for Modbus serial
|
|
| number of addresses |
For Modbus serial
|
|
| method of access |
Slave for Modbus TCP
|
|
| analogue input type |
Software-configurable voltage AI1, AI3 0...10 V DC 30 kOhm 12
bits
Software-configurable current AI1, AI3 0...20 mA/4...20 mA 250 Ohm 12 bits Software-configurable voltage AI2 +/- 10 V DC 30 kOhm 12 bits Software-configurable voltage AI2 0...10 V DC 30 kOhm 12 bits |
| THDI |
<= 5 % full load conforming to IEEE 519
|
|
|---|---|---|
| electromagnetic compatibility |
1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to
IEC 61000-4-5
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
|
| pollution degree |
2 EN/IEC 61800-5-1
|
|
| vibration resistance |
1.5 mm peak to peak 2...13 Hz IEC 60068-2-6
0.5 gn 13...200 Hz IEC 60068-2-6 |
|
| shock resistance |
4 gn 11 ms IEC 60068-2-27
|
|
| relative humidity |
5...95 % without condensation conforming to IEC 60068-2-3
|
|
| ambient air temperature for operation |
40...50 °C with derating factor
-5...40 °C without |
|
| ambient air temperature for storage |
-40...70 °C
|
|
| operating altitude |
<= 2000 m with current derating above 1000m
|
|
| environmental characteristic |
Chemical pollution resistance class 3C3 EN/IEC 60721-3-3
Dust pollution resistance class 3S3 EN/IEC 60721-3-3 |
|
| standards |
EN/IEC 61800-3
EN/IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 |
|
| product certifications |
UL
TÜV REACH CUL |
|
| marking |
CE
|
Schneider ATV9B0C20N6 Variable Speed Drive - Altivar Process Modular, ATV900, Low Harmonic/Regen Drive
- Brand: Schneider
- Product Code: ATV9B0C20N6
- Availability: 1000
Tags: Schneider ATV9B0C20N6, Variable Speed Drive, Altivar Process Modular, ATV900, Low Harmonic Drive, Regenerative Drive, Industrial Automation, Motor Control, Energy Efficiency, Schneider Electric
