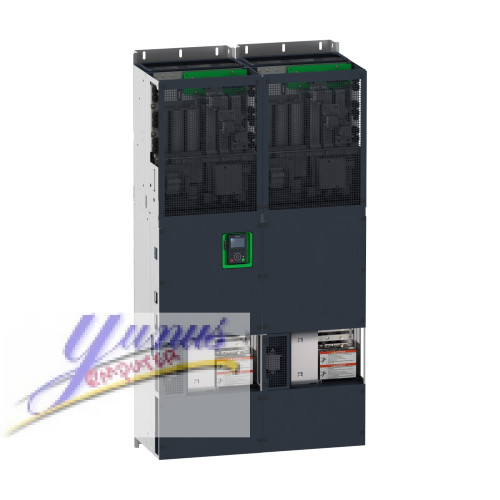

• Schneider ATV9B0C31N6 Variable Speed Drive - Altivar Process Modular, ATV900, Low Harmonic/Regen Drive

Schneider ATV9B0C31N6 Variable Speed Drive – Altivar Process Modular, ATV900 Series

Elevate your industrial processes to unprecedented levels of efficiency with the Schneider ATV9B0C31N6 Variable Speed Drive from the renowned Altivar Process Modular ATV900 series. Engineered for precision and performance, this Low Harmonic/Regen Drive is a game-changer in the realm of variable speed control.

Key Features:

  1. Low Harmonic Distortion: The ATV9B0C31N6 is designed to minimize harmonic distortion, ensuring a cleaner power supply and reducing the risk of electrical issues. This translates to enhanced reliability and prolonged equipment life.

  2. Regenerative Capability: Featuring advanced regenerative technology, this drive is capable of converting excess energy back into the power grid. This not only optimizes energy usage but also contributes to a greener and more sustainable operation.

  3. Altivar Process Modular Design: The Altivar Process Modular architecture ensures adaptability to diverse industrial environments. With modular components, the ATV900 series allows for scalability and flexibility, accommodating the evolving needs of your application.

  4. Precise Speed Control: Achieve unparalleled control over motor speed with the ATV9B0C31N6. Whether for constant torque or variable torque applications, this drive provides precise speed regulation, optimizing performance across a wide range of industrial processes.

  5. Comprehensive Connectivity: Seamlessly integrate the ATV9B0C31N6 into your existing automation system with its extensive connectivity options. With compatibility across various communication protocols, including Modbus, Ethernet, and more, this drive ensures easy interoperability.

  6. User-Friendly Interface: The intuitive user interface simplifies configuration and monitoring. A high-resolution display provides real-time data on key performance metrics, enabling operators to make informed decisions and adjustments on the fly.

  7. Robust Construction: Built to withstand demanding industrial environments, the ATV9B0C31N6 boasts a robust and durable design. Its high-quality components ensure reliable operation even in challenging conditions.

Applications:

  • Industrial Automation: Perfect for applications requiring precise speed control and high efficiency, such as conveyors, pumps, and fans.

  • Water and Wastewater Treatment: Ideal for optimizing the performance of water and wastewater treatment processes with its low harmonic distortion and regenerative capabilities.

  • Oil and Gas Industry: Suited for variable speed applications in the oil and gas sector, ensuring efficient and reliable operation.

Elevate your industrial processes with the Schneider ATV9B0C31N6 Variable Speed Drive. Unleash the power of precision, reliability, and sustainability in one advanced package.

Invest in the future of industrial automation. Choose Schneider – where innovation meets performance.

Note: Ensure professional installation and configuration by qualified technicians for optimal performance.

Main
range of product
Altivar Process ATV900
product or component type
Variable speed drive
device short name
ATV9B0
variant
Modular version
product destination
Synchronous motors
Asynchronous motors
mounting mode
Cabinet mount
kit composition
Mechanical mounting kits
Power connection
Set of fuses
1 control unit
1 front cover
2 power module 200 kW
EMC filter
Integrated conforming to EN/IEC 61800-3 category C3 with <= 300 m motor cable maxi
IP degree of protection
IP00 conforming to IEC 61800-5-1 for IP21 or IP54 cabinet integration
IP00 conforming to IEC 60529 for IP21 or IP54 cabinet integration
degree of protection
UL type 1 UL 61800-5-1 cabinet integration
UL type 12 UL 61800-5-1 cabinet integration
type of cooling
Forced convection
supply frequency
50...60 Hz +/- 5 %
network number of phases
3 phases
[Us] rated supply voltage
500 V - 10...15 %
motor power kW
220 kW at 500 V (normal duty)
160 kW at 500 V (heavy duty)
220 kW at 500 V (normal duty) regenerative mode
160 kW at 500 V (heavy duty) regenerative mode
line current
278 A at 500 V (normal duty)
204 A at 500 V (heavy duty)
231 A at 500 V (normal duty) regenerative mode
167 A at 500 V (heavy duty) regenerative mode
prospective line Isc
50 kA
apparent power
241 kVA at 500 V (normal duty)
176 kVA at 500 V (heavy duty)
200 kVA at 500 V (normal duty) regenerative mode
145 kVA at 500 V (heavy duty) regenerative mode
continuous output current
340 A at 2.5 kHz (normal duty)
275 A at 2.5 kHz (heavy duty)
340 A at 2.5 kHz (normal duty) regenerative mode
275 A at 2.5 kHz (heavy duty) regenerative mode
maximum transient current
408 A during 60 s (normal duty)
412.5 A during 60 s (heavy duty)
408 A during 60 s regenerative mode (normal duty)
412.5 A during 60 s regenerative mode (heavy duty)
speed drive output frequency
0.1...599 Hz
nominal switching frequency
2.5 kHz
switching frequency
2...4.9 kHz adjustable with derating factor
safety function
STO (safe torque off) SIL 3
communication port protocol
Ethernet/IP
Modbus serial
Modbus TCP
option module
Slot A : communication module for Profibus DP V1
Slot A : communication module for Profinet
Slot A : communication module for DeviceNet
Slot A : communication module for CANopen daisy chain RJ45
Slot A : communication module for CANopen SUB-D 9
Slot A : communication module for CANopen screw terminals
Slot A : communication module for EtherCAT
Slot A/slot B/slot C : digital and analog I/O extension module
Slot A/slot B/slot C : output relay extension module
Slot B : analog encoder interface module
Slot B : resolver encoder interface module
Slot B : digital encoder interface module for 5/12 V
Complementary
motor slip compensation
Adjustable
Not available in permanent magnet motor law
Automatic whatever the load
Can be suppressed
acceleration and deceleration ramps
Linear adjustable separately from 0.01...9999 s
protection type
Safe torque off motor
Motor phase break motor
Safe torque off drive
Overheating drive
Short-circuit protection drive
Motor phase break drive
Overspeed drive
Break on the control circuit drive
Overvoltages on the DC bus drive
Overload of output voltage drive
Line supply overvoltage drive
Line supply phase loss drive
Line supply undervoltage drive
Overcurrent between output phases and earth drive
Thermal protection motor
Thermal protection drive
frequency resolution
0.012/50 Hz analog input
0.1 Hz display unit
electrical connection
Removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 control
Screw terminal line side
M10 x 2 bars motor
connector type
2 RJ45 for Ethernet IP/Modbus TCP on terminal
1 RJ45 for Modbus serial on terminal
physical interface
2-wire RS 485 for Modbus serial
transmission frame
RTU for Modbus serial
transmission rate
10/100 Mbit/s for Ethernet IP/Modbus TCP
4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial
data format
8 bits, configurable odd, even or no parity for Modbus serial
type of polarization
No impedance for Modbus serial
number of addresses
For Modbus serial
method of access
Slave for Modbus TCP
analogue input type
Software-configurable voltage AI1, AI3 0...10 V DC 30 kOhm 12 bits
Software-configurable current AI1, AI3 0...20 mA/4...20 mA 250 Ohm 12 bits
Software-configurable voltage AI2 +/- 10 V DC 30 kOhm 12 bits
Software-configurable voltage AI2 0...10 V DC 30 kOhm 12 bits

Environment
THDI
<= 5 % full load conforming to IEEE 519
electromagnetic compatibility
1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
pollution degree
2 EN/IEC 61800-5-1
vibration resistance
1.5 mm peak to peak 2...13 Hz IEC 60068-2-6
0.5 gn 13...200 Hz IEC 60068-2-6
shock resistance
4 gn 11 ms IEC 60068-2-27
relative humidity
5...95 % without condensation conforming to IEC 60068-2-3
ambient air temperature for operation
40...50 °C with derating factor
-5...40 °C without
ambient air temperature for storage
-40...70 °C
operating altitude
<= 2000 m with current derating above 1000m
environmental characteristic
Chemical pollution resistance class 3C3 EN/IEC 60721-3-3
Dust pollution resistance class 3S3 EN/IEC 60721-3-3
standards
EN/IEC 61800-3
EN/IEC 61800-5-1
IEC 61000-3-12
IEC 60721-3
IEC 61508
IEC 13849-1
product certifications
UL
TÜV
REACH
CUL
marking
CE
