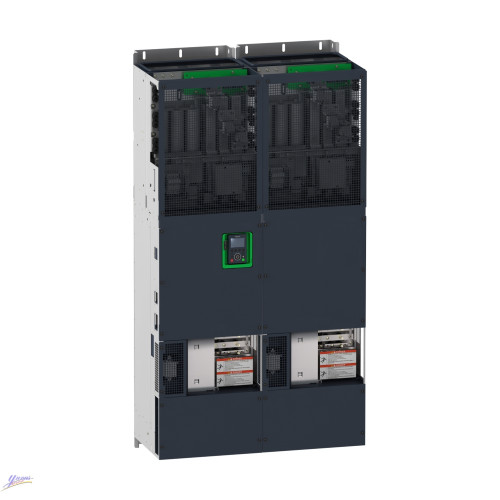

Introducing the Schneider ATV9B0C31Q6 Variable Speed Drive, an exemplary component of the Altivar Process Modular series, designed to elevate operational efficiency while minimizing harmonic distortions. Engineered with cutting-edge technology, this ATV900 series drive stands as an epitome of precision, reliability, and adaptability in industrial applications.
Key Features:
- Versatile Performance: The ATV9B0C31Q6 drive offers unparalleled versatility in speed control, catering to diverse industrial requirements with precision and agility.
- Low Harmonic Distortion: By integrating advanced harmonic reduction mechanisms, this drive ensures minimal harmonic distortions, contributing to a cleaner power grid and compliance with industry standards.
- Regenerative Capability: Its regenerative functionality not only optimizes energy consumption but also enhances operational efficiency by recuperating and reusing energy within the system.
- Modular Design: The modular architecture of the Altivar Process series allows for seamless integration into existing setups, facilitating enhanced scalability and customization.
- Robust Build: Crafted with robust materials and built to withstand rigorous industrial environments, ensuring prolonged durability and consistent performance.
Technical Specifications:
- Model: ATV9B0C31Q6
- Series: Altivar Process Modular, ATV900
- Type: Variable Speed Drive
- Harmonic/Regen Drive: Low Harmonic/Regen Drive
Applications:
- Oil & Gas Industries
- Chemical Processing Plants
- Manufacturing Facilities
- Water and Wastewater Treatment Plants
- Renewable Energy Installations
- And more
Benefit from the comprehensive control and monitoring capabilities of the Schneider ATV9B0C31Q6 Variable Speed Drive, ensuring optimal performance and energy efficiency across a spectrum of industrial operations. Elevate your production processes with a reliable, adaptable, and future-proof solution.
For more information or to integrate the Schneider ATV9B0C31Q6 into your industrial setup, contact us today.
| range of product |
Altivar Process ATV900
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| device short name |
ATV9B0
|
|
| variant |
Modular version
|
|
| product destination |
Asynchronous motors
Synchronous motors |
|
| mounting mode |
Cabinet mount
|
|
| kit composition |
Mechanical mounting kits
Power connection Set of fuses 1 control unit 1 front cover 2 power module 200 kW |
|
| EMC filter |
Integrated conforming to EN/IEC 61800-3 category C3 with <= 300
m motor cable maxi
|
|
| IP degree of protection |
IP00 conforming to IEC 61800-5-1 for IP21 or IP54 cabinet
integration
IP00 conforming to IEC 60529 for IP21 or IP54 cabinet integration |
|
| degree of protection |
UL type 1 UL 61800-5-1 cabinet integration
UL type 12 UL 61800-5-1 cabinet integration |
|
| type of cooling |
Forced convection
|
|
| supply frequency |
50...60 Hz +/- 5 %
|
|
| network number of phases |
3 phases
|
|
| [Us] rated supply voltage |
690 V - 10...15 %
|
|
| motor power kW |
315 kW at 690 V (normal duty)
250 kW at 690 V (heavy duty) 315 kW at 690 V (normal duty) regenerative mode 250 kW at 690 V (heavy duty) regenerative mode |
|
| line current |
287 A at 690 V (normal duty)
228 A at 690 V (heavy duty) 241 A at 690 V (normal duty) regenerative mode 191 A at 690 V (heavy duty) regenerative mode |
|
| prospective line Isc |
50 kA
|
|
| apparent power |
343 kVA at 690 V (normal duty)
273 kVA at 690 V (heavy duty) 288 kVA at 690 V (normal duty) regenerative mode 228 kVA at 690 V (heavy duty) regenerative mode |
|
| continuous output current |
340 A at 2.5 kHz (normal duty)
275 A at 2.5 kHz (heavy duty) 340 A at 2.5 kHz (normal duty) regenerative mode 275 A at 2.5 kHz (heavy duty) regenerative mode |
|
| maximum transient current |
408 A during 60 s (normal duty)
412.5 A during 60 s (heavy duty) 408 A during 60 s regenerative mode (normal duty) 412.5 A during 60 s regenerative mode (heavy duty) |
|
| speed drive output frequency |
0.1...599 Hz
|
|
| nominal switching frequency |
2.5 kHz
|
|
| switching frequency |
2...4.9 kHz adjustable with derating factor
|
|
| safety function |
STO (safe torque off) SIL 3
|
|
| communication port protocol |
Ethernet/IP
Modbus serial Modbus TCP |
|
| option module |
Slot A : communication module for Profibus DP V1
Slot A : communication module for Profinet Slot A : communication module for DeviceNet Slot A : communication module for CANopen daisy chain RJ45 Slot A : communication module for CANopen SUB-D 9 Slot A : communication module for CANopen screw terminals Slot A : communication module for EtherCAT Slot A/slot B/slot C : digital and analog I/O extension module Slot A/slot B/slot C : output relay extension module Slot B : analog encoder interface module Slot B : resolver encoder interface module Slot B : digital encoder interface module for 5/12 V |
| motor slip compensation |
Automatic whatever the load
Can be suppressed Adjustable Not available in permanent magnet motor law |
|
|---|---|---|
| acceleration and deceleration ramps |
Linear adjustable separately from 0.01...9999 s
|
|
| protection type |
Safe torque off motor
Motor phase break motor Safe torque off drive Overheating drive Short-circuit protection drive Motor phase break drive Overspeed drive Break on the control circuit drive Overvoltages on the DC bus drive Overload of output voltage drive Line supply overvoltage drive Line supply phase loss drive Line supply undervoltage drive Overcurrent between output phases and earth drive Thermal protection motor Thermal protection drive |
|
| frequency resolution |
0.012/50 Hz analog input
0.1 Hz display unit |
|
| electrical connection |
Removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 control
Screw terminal line side M10 x 2 bars motor |
|
| connector type |
2 RJ45 for Ethernet IP/Modbus TCP on terminal
1 RJ45 for Modbus serial on terminal |
|
| physical interface |
2-wire RS 485 for Modbus serial
|
|
| transmission frame |
RTU for Modbus serial
|
|
| transmission rate |
10/100 Mbit/s for Ethernet IP/Modbus TCP
4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial |
|
| data format |
8 bits, configurable odd, even or no parity for Modbus serial
|
|
| type of polarization |
No impedance for Modbus serial
|
|
| number of addresses |
For Modbus serial
|
|
| method of access |
Slave for Modbus TCP
|
|
| analogue input type |
Software-configurable voltage AI1, AI3 0...10 V DC 30 kOhm 12
bits
Software-configurable current AI1, AI3 0...20 mA/4...20 mA 250 Ohm 12 bits Software-configurable voltage AI2 +/- 10 V DC 30 kOhm 12 bits Software-configurable voltage AI2 0...10 V DC 30 kOhm 12 bits |
| THDI |
<= 5 % full load conforming to IEEE 519
|
|
|---|---|---|
| electromagnetic compatibility |
1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to
IEC 61000-4-5
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
|
| pollution degree |
2 EN/IEC 61800-5-1
|
|
| vibration resistance |
1.5 mm peak to peak 2...13 Hz IEC 60068-2-6
0.5 gn 13...200 Hz IEC 60068-2-6 |
|
| shock resistance |
4 gn 11 ms IEC 60068-2-27
|
|
| relative humidity |
5...95 % without condensation conforming to IEC 60068-2-3
|
|
| ambient air temperature for operation |
40...50 °C with derating factor
-5...40 °C without |
|
| ambient air temperature for storage |
-40...70 °C
|
|
| operating altitude |
<= 2000 m with current derating above 1000m
|
|
| environmental characteristic |
Chemical pollution resistance class 3C3 EN/IEC 60721-3-3
Dust pollution resistance class 3S3 EN/IEC 60721-3-3 |
|
| standards |
EN/IEC 61800-3
EN/IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 |
|
| product certifications |
REACH
TÜV UL CUL |
|
| marking |
CE
|
Schneider ATV9B0C31Q6 Variable Speed Drive Altivar Process Modular, ATV900, Low Harmonic/Regen Drive
- Brand: Schneider
- Product Code: ATV9B0C31Q6
- Availability: 1000
Tags: Schneider, ATV9B0C31Q6, Variable Speed Drive, Altivar Process, Modular, ATV900, Low Harmonic, Regen
