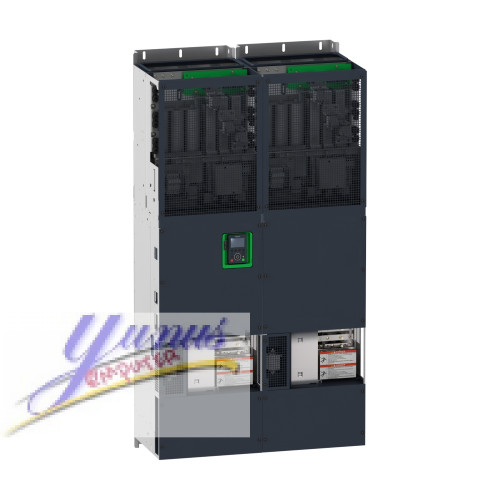

Schneider ATV9B0C40N6 Variable Speed Drive: Altivar Process Modular, ATV900 Series, Low Harmonic/Regen Drive
The Schneider ATV9B0C40N6 is a cutting-edge Variable Speed Drive (VSD) meticulously designed to meet the dynamic needs of modern industrial processes. A part of the Altivar Process Modular series, this ATV900 model exemplifies unparalleled performance, versatility, and efficiency in optimizing motor control applications across diverse industries.
Features and Highlights:
Advanced Variable Speed Control:
The ATV9B0C40N6 offers precise and adaptive motor control, ensuring optimal speed adjustments with exceptional accuracy, enhancing operational efficiency while reducing energy consumption.
Low Harmonic and Regenerative Drive:
Designed to mitigate harmonic distortions, this drive minimizes electrical network pollution, ensuring compliance with stringent power quality regulations. Additionally, its regenerative capabilities enable the recovery of energy, contributing to cost savings and sustainability efforts.
Modular Design for Versatility:
The Altivar Process Modular series is renowned for its adaptability. The ATV9B0C40N6 seamlessly integrates into various systems and applications, offering flexibility and ease of installation.
Robust and Reliable Performance:
Crafted with industry-leading technology and durable components, this VSD guarantees robust and reliable performance, ensuring uninterrupted operations even in demanding environments.
Technical Specifications:
- Model: ATV9B0C40N6
- Series: Altivar Process Modular, ATV900
- Input Voltage: [Input Voltage Range]
- Output Voltage: [Output Voltage Range]
- Power Rating: [Power Rating in kW/hp]
- Control Type: [Control Type: Open Loop/Closed Loop]
- Enclosure Type: [Enclosure Type: IPXX]
Application Areas:
- Industrial Automation: Suitable for various industrial processes, including pumps, fans, conveyors, and more.
- Energy Optimization: Ideal for applications requiring energy-efficient motor control and regenerative capabilities.
- Harmonic Mitigation: Perfect for environments where minimizing harmonic distortions is essential for electrical network stability.
Why Choose Schneider ATV9B0C40N6?
Schneider Electric's commitment to innovation and quality ensures that the ATV9B0C40N6 stands as an epitome of excellence in motor control technology. By choosing this drive, businesses benefit from:
- Enhanced operational efficiency
- Compliance with power quality regulations
- Reduced energy consumption
- Sustainable and eco-friendly operations
- Minimal downtime and maximum reliability
Conclusion:
In conclusion, the Schneider ATV9B0C40N6 Variable Speed Drive from the Altivar Process Modular series is a pioneering solution that redefines motor control in the industrial landscape. Its technological prowess, adaptability, and reliability make it a compelling choice for businesses aiming to optimize operations while prioritizing energy efficiency and compliance.
Note: For specific technical details, consult the official Schneider Electric documentation.
| range of product |
Altivar Process ATV900
|
|
|---|---|---|
| product or component type |
Variable speed drive
|
|
| device short name |
ATV9B0
|
|
| variant |
Modular version
|
|
| product destination |
Synchronous motors
Asynchronous motors |
|
| mounting mode |
Cabinet mount
|
|
| kit composition |
Mechanical mounting kits
Power connection Set of fuses 1 control unit 1 front cover 2 power module 200 kW |
|
| EMC filter |
Integrated conforming to EN/IEC 61800-3 category C3 with <= 300
m motor cable maxi
|
|
| IP degree of protection |
IP00 conforming to IEC 61800-5-1 for IP21 or IP54 cabinet
integration
IP00 conforming to IEC 60529 for IP21 or IP54 cabinet integration |
|
| degree of protection |
UL type 1 UL 61800-5-1 cabinet integration
UL type 12 UL 61800-5-1 cabinet integration |
|
| type of cooling |
Forced convection
|
|
| supply frequency |
50...60 Hz +/- 5 %
|
|
| network number of phases |
3 phases
|
|
| [Us] rated supply voltage |
500 V - 10...15 %
|
|
| motor power kW |
280 kW at 500 V (normal duty)
220 kW at 500 V (heavy duty) 220 kW at 500 V (normal duty) regenerative mode 160 kW at 500 V (heavy duty) regenerative mode |
|
| line current |
352 A at 500 V (normal duty)
278 A at 500 V (heavy duty) 231 A at 500 V (normal duty) regenerative mode 167 A at 500 V (heavy duty) regenerative mode |
|
| prospective line Isc |
50 kA
|
|
| apparent power |
305 kVA at 500 V (normal duty)
241 kVA at 500 V (heavy duty) 200 kVA at 500 V (normal duty) regenerative mode 145 kVA at 500 V (heavy duty) regenerative mode |
|
| continuous output current |
425 A at 2.5 kHz (normal duty)
340 A at 2.5 kHz (heavy duty) 340 A at 2.5 kHz (normal duty) regenerative mode 275 A at 2.5 kHz (heavy duty) regenerative mode |
|
| maximum transient current |
510 A during 60 s (heavy duty)
510 A during 60 s (normal duty) 408 A during 60 s regenerative mode (normal duty) 412.5 A during 60 s regenerative mode (heavy duty) |
|
| speed drive output frequency |
0.1...599 Hz
|
|
| nominal switching frequency |
2.5 kHz
|
|
| switching frequency |
2...4.9 kHz adjustable with derating factor
|
|
| safety function |
STO (safe torque off) SIL 3
|
|
| communication port protocol |
Modbus TCP
Modbus serial Ethernet/IP |
|
| option module |
Slot A : communication module for Profibus DP V1
Slot A : communication module for Profinet Slot A : communication module for DeviceNet Slot A : communication module for CANopen daisy chain RJ45 Slot A : communication module for CANopen SUB-D 9 Slot A : communication module for CANopen screw terminals Slot A : communication module for EtherCAT Slot A/slot B/slot C : digital and analog I/O extension module Slot A/slot B/slot C : output relay extension module Slot B : analog encoder interface module Slot B : resolver encoder interface module Slot B : digital encoder interface module for 5/12 V |
| motor slip compensation |
Adjustable
Can be suppressed Automatic whatever the load Not available in permanent magnet motor law |
|
|---|---|---|
| acceleration and deceleration ramps |
Linear adjustable separately from 0.01...9999 s
|
|
| protection type |
Safe torque off motor
Motor phase break motor Safe torque off drive Overheating drive Short-circuit protection drive Motor phase break drive Overspeed drive Break on the control circuit drive Overvoltages on the DC bus drive Overload of output voltage drive Line supply overvoltage drive Line supply phase loss drive Line supply undervoltage drive Overcurrent between output phases and earth drive Thermal protection motor Thermal protection drive |
|
| frequency resolution |
0.012/50 Hz analog input
0.1 Hz display unit |
|
| electrical connection |
Removable screw terminals 0.5...1.5 mm² AWG 20...AWG 16 control
Screw terminal line side M10 x 2 bars motor |
|
| connector type |
2 RJ45 for Ethernet IP/Modbus TCP on terminal
1 RJ45 for Modbus serial on terminal |
|
| physical interface |
2-wire RS 485 for Modbus serial
|
|
| transmission frame |
RTU for Modbus serial
|
|
| transmission rate |
10/100 Mbit/s for Ethernet IP/Modbus TCP
4.8, 9.6, 19.2, 38.4 kbit/s for Modbus serial |
|
| data format |
8 bits, configurable odd, even or no parity for Modbus serial
|
|
| type of polarization |
No impedance for Modbus serial
|
|
| number of addresses |
For Modbus serial
|
|
| method of access |
Slave for Modbus TCP
|
|
| analogue input type |
Software-configurable voltage AI1, AI3 0...10 V DC 30 kOhm 12
bits
Software-configurable current AI1, AI3 0...20 mA/4...20 mA 250 Ohm 12 bits Software-configurable voltage AI2 +/- 10 V DC 30 kOhm 12 bits Software-configurable voltage AI2 0...10 V DC 30 kOhm 12 bits |
| THDI |
<= 5 % full load conforming to IEEE 519
|
|
|---|---|---|
| electromagnetic compatibility |
1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to
IEC 61000-4-5
Electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4 Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2 Radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3 Conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6 |
|
| pollution degree |
2 EN/IEC 61800-5-1
|
|
| vibration resistance |
1.5 mm peak to peak 2...13 Hz IEC 60068-2-6
0.5 gn 13...200 Hz IEC 60068-2-6 |
|
| shock resistance |
4 gn 11 ms IEC 60068-2-27
|
|
| relative humidity |
5...95 % without condensation conforming to IEC 60068-2-3
|
|
| ambient air temperature for operation |
40...50 °C with derating factor
-5...40 °C without |
|
| ambient air temperature for storage |
-40...70 °C
|
|
| operating altitude |
<= 2000 m with current derating above 1000m
|
|
| environmental characteristic |
Chemical pollution resistance class 3C3 EN/IEC 60721-3-3
Dust pollution resistance class 3S3 EN/IEC 60721-3-3 |
|
| standards |
EN/IEC 61800-3
EN/IEC 61800-5-1 IEC 61000-3-12 IEC 60721-3 IEC 61508 IEC 13849-1 |
|
| product certifications |
UL
CUL REACH TÜV |
|
| marking |
CE
|
