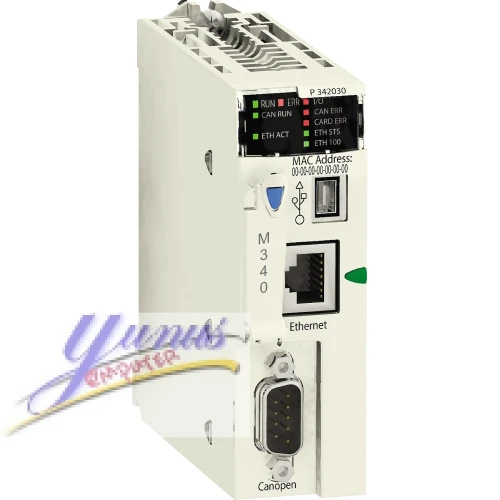

Schneider BMXP3420302 Processor Module M340 - Advanced Control with Comprehensive I/O Capacity and CANopen Communication
Product Overview:
The Schneider BMXP3420302 Processor Module is a cutting-edge component in the M340 series, designed to deliver unparalleled performance in industrial automation and control systems. Engineered by Schneider Electric, this processor module is ideal for complex applications requiring robust processing power, extensive I/O capabilities, and reliable communication protocols.
Key Features:
High Processing Power: The BMXP3420302 is equipped with a state-of-the-art processor that ensures rapid and efficient execution of control algorithms and processes. This high-performance processor is essential for applications demanding precision and speed.
I/O Capacity: The module supports up to 1024 discrete I/O points and 256 analog I/O points, making it highly versatile and suitable for a wide range of automation tasks. This extensive I/O capacity allows for comprehensive data collection and control, enhancing operational efficiency and flexibility.
CANopen Communication: Integrated CANopen communication protocol facilitates seamless connectivity with various field devices and other modules. This ensures reliable data exchange and integration within a networked automation environment.
Modular Design: As part of the M340 series, the BMXP3420302 features a modular design that allows for easy expansion and customization. This flexibility is crucial for adapting to evolving industrial requirements and optimizing system performance.
Enhanced Diagnostics and Monitoring: Advanced diagnostic and monitoring capabilities are embedded within the module, providing real-time insights into system status and performance. This feature aids in proactive maintenance and reduces downtime.
Robust Construction: Designed to withstand demanding industrial environments, the BMXP3420302 boasts a rugged construction that ensures long-term reliability and durability, even in harsh conditions.
Applications:
The Schneider BMXP3420302 Processor Module is perfect for a variety of applications including:
- Manufacturing Automation: Streamline complex manufacturing processes with high-speed processing and extensive I/O support.
- Process Control: Manage intricate process control systems with precise data acquisition and control capabilities.
- Machine Automation: Enhance machine performance and integration with advanced communication and I/O options.
- Building Management Systems: Implement efficient building management solutions with reliable control and monitoring features.
Technical Specifications:
- Discrete I/O Capacity: Up to 1024 points
- Analog I/O Capacity: Up to 256 points
- Communication Protocol: CANopen
- Compatibility: M340 series
Why Choose Schneider BMXP3420302?
Choosing the Schneider BMXP3420302 Processor Module ensures your industrial automation systems are equipped with the latest technology for superior performance and reliability. Schneider Electric’s commitment to innovation and quality is reflected in this advanced module, making it a trusted choice for professionals seeking excellence in control and automation.
Order Your Schneider BMXP3420302 Today!
Elevate your industrial automation capabilities with the Schneider BMXP3420302 Processor Module. Contact us to learn more or place your order, and experience the advanced features and reliability that Schneider Electric offers.
| range of product |
Modicon M340 automation platform
|
|
|---|---|---|
| product or component type |
Processor module
|
|
| concept |
Transparent Ready
CANopen |
|
| number of racks |
4
|
|
| number of slots |
11
|
|
| discrete I/O processor capacity |
1024 I/O multi-rack configuration
704 I/O single-rack configuration |
|
| analogue I/O processor capacity |
256 I/O multi-rack configuration
66 I/O single-rack configuration |
|
| number of application specific channel |
36
|
| control channels |
Programmable loops
|
|
|---|---|---|
| motion control |
Independent axis CANopen
|
|
| integrated connection type |
Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair
USB port 12 Mbit/s CANopen master bus SUB-D 9 20 kbit/s...1 Mbit/s 2 twisted shielded pairs |
|
| communication module processor capacity |
2 Ethernet communication module
4 AS-Interface module |
|
| embedded communication service |
Bandwidth management, Ethernet TCP/IP
Data Editor, Ethernet TCP/IP Modbus TCP messaging, Ethernet TCP/IP Rack Viewer, Ethernet TCP/IP SNMP network administrator, Ethernet TCP/IP Network management (NMT) CANopen Process Data Object (PDO) CANopen Service Data Object (SDO) CANopen Special functions (SYNC, EMCY, TIME) CANopen |
|
| port Ethernet |
10BASE-T/100BASE-TX
|
|
| transmission rate |
1 Mbit/s 0...20 m 0...0.6 m
125 kbit/s 0...500 m 0...10 m 20 kbit/s 0...2500 m 0...300 m 250 kbit/s 0...250 m 0...10 m 50 kbit/s 0...1000 m 0...120 m 500 kbit/s 0...100 m 0...10 m 800 kbit/s 0...40 m 0...6 m |
|
| bus type |
CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap
junctions CSMA/CA
CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA |
|
| number of slave |
63 CANopen
|
|
| number of devices per segment |
0...16 <= 205 m CANopen
0...32 <= 185 m CANopen 0...64 <= 160 m CANopen |
|
| memory description |
4096 kB internal RAM
256 kB internal RAM for data 3584 kB internal RAM for program constants and symbols Supplied memory card (BMXRMS008MP) for activation of standard web server, class B10 Supplied memory card (BMXRMS008MP) for backup of programs, constants, symbols and data |
|
| maximum size of object areas |
256 kB unlocated internal data
32634 %Mi located internal bits |
|
| default size of object areas |
1024 %MWi internal words located internal data
256 %KWi constant words located internal data 512 %Mi located internal bits |
|
| application structure |
64 event tasks
No auxiliary task 1 cyclic/periodic master task 1 periodic fast task |
|
| execution time per instruction |
0.12 µs Boolean
0.17 µs double-length words 0.25 µs single-length words 1.16 µs floating points |
|
| number of instructions per ms |
6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
8.1 Kinst/ms 100 % Boolean |
|
| system overhead |
0.13 ms fast task
0.7 ms master task |
|
| current consumption |
135 mA 24 V DC
|
|
| supply |
Internal power supply via rack
|
|
| marking |
CE
|
|
| status LED |
1 LED green activity on Ethernet network (ETH ACT)
1 LED green integrated machine/installation bus operational (CAN RUN) 1 LED green processor running (RUN) 1 LED green status of Ethernet network (ETH STS) 1 LED red data rate (ETH 100) 1 LED red I/O module fault (I/O) 1 LED red integrated machine/installation bus fault (CAN ERR) 1 LED red memory card fault (CARD ERR) 1 LED red processor or system fault (ERR) 1 LED yellow activity on Modbus (SER COM) |
|
| product weight |
0.215 kg
|
| ambient air temperature for operation |
0...60 °C
|
|
|---|---|---|
| relative humidity |
10...95 % without condensation
|
|
| IP degree of protection |
IP20
|
|
| protective treatment |
TC
|
|
| directives |
2014/35/EU - low voltage directive
2014/30/EU - electromagnetic compatibility 2012/19/EU - WEEE directive |
|
| standards |
EN 61131-2
EN 61000-6-2 EN 61000-6-4 EN 61010-2-201 |
Schneider BMXP3420302 Processor Module M340 | 1024 Discrete I/O + 256 Analog I/O | CANopen Communication
- Brand: Schneider
- Product Code: BMXP3420302
- Availability: 1000
Tags: Schneider BMXP3420302, M340 Processor Module, Discrete I/O, Analog I/O, CANopen, Industrial Control, Automation Module, Schneider Electric, High Performance Processor, Modular I/O Module
