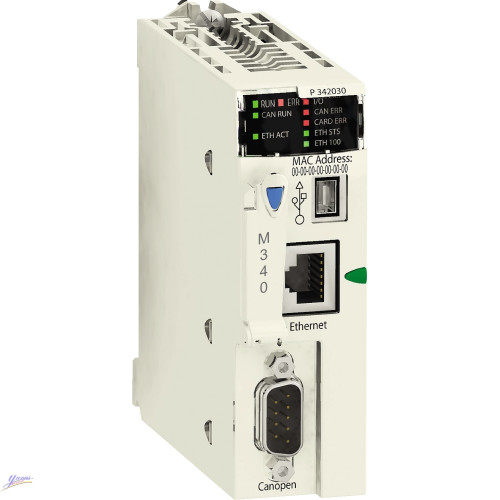

Schneider BMXP3420302CL Processor Module M340 - Advanced Performance with CANOpen and High Discrete I/O Capacity
Product Overview
The Schneider BMXP3420302CL Processor Module is a high-performance component of the M340 series, designed to deliver exceptional reliability and efficiency in industrial automation systems. This state-of-the-art processor module is engineered for applications requiring robust control and comprehensive connectivity. With a capacity to manage up to 1024 discrete I/O points and integrated CANOpen communication protocol support, this module is ideal for complex, large-scale automation tasks.
Key Features
- Processor Type: The BMXP3420302CL is equipped with an advanced processing unit that ensures high-speed data handling and efficient control operations.
- I/O Capacity: Capable of managing up to 1024 discrete I/O points, this module supports extensive input and output operations, making it suitable for complex industrial processes.
- Communication Protocol: Integrated CANOpen support allows for seamless communication between the processor and various networked devices, enhancing system interoperability and data exchange.
- Memory: Note that this model is supplied without a memory card, allowing users to customize their memory configuration according to specific application requirements.
- Modularity: Designed as part of the M340 range, the BMXP3420302CL integrates smoothly into Schneider Electric’s modular control systems, ensuring scalability and flexibility.
- Reliability: Built to withstand the demands of industrial environments, this processor module offers robust performance with minimal maintenance.
Applications
The Schneider BMXP3420302CL Processor Module is ideal for:
- Manufacturing Automation: Efficiently manages and controls manufacturing processes, improving production efficiency and accuracy.
- Process Control: Facilitates complex process control applications, ensuring precise monitoring and regulation.
- Machine Control: Enhances the control and automation of machinery, providing reliable operation in demanding environments.
Technical Specifications
- Model: BMXP3420302CL
- Series: M340
- Maximum Discrete I/O: 1024
- Communication Protocol: CANOpen
- Memory Card: Not Included
Why Choose Schneider BMXP3420302CL?
Opt for the Schneider BMXP3420302CL Processor Module for its superior processing power, extensive I/O handling capabilities, and seamless CANOpen communication. Its modular design and high reliability make it a valuable asset for optimizing industrial automation systems. Whether you are upgrading an existing system or developing a new application, this processor module delivers the performance and flexibility needed to meet your automation challenges.
Get In Touch
For more information about the Schneider BMXP3420302CL Processor Module or to discuss your specific requirements, please contact our sales team or visit our website.
| range of product |
Modicon M340 automation platform
|
|
|---|---|---|
| product or component type |
Processor module
|
|
| condition of use |
Requires a memory card to work (not supplied)
|
|
| concept |
CANopen
Transparent Ready |
|
| number of racks |
4
|
|
| number of slots |
11
|
|
| discrete I/O processor capacity |
1024 I/O multi-rack configuration
704 I/O single-rack configuration |
|
| analogue I/O processor capacity |
256 I/O multi-rack configuration
66 I/O single-rack configuration |
|
| number of application specific channel |
36
|
| control channels |
Programmable loops
|
|
|---|---|---|
| motion control |
Independent axis CANopen
|
|
| integrated connection type |
Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair
USB port 12 Mbit/s CANopen master bus SUB-D 9 20 kbit/s...1 Mbit/s 2 twisted shielded pairs |
|
| communication module processor capacity |
2 Ethernet communication module
4 AS-Interface module |
|
| embedded communication service |
Bandwidth management, Ethernet TCP/IP
Data Editor, Ethernet TCP/IP Modbus TCP messaging, Ethernet TCP/IP Rack Viewer, Ethernet TCP/IP SNMP network administrator, Ethernet TCP/IP Network management (NMT) CANopen Process Data Object (PDO) CANopen Service Data Object (SDO) CANopen Special functions (SYNC, EMCY, TIME) CANopen |
|
| port Ethernet |
10BASE-T/100BASE-TX
|
|
| transmission rate |
1 Mbit/s 0...20 m 0...0.6 m
125 kbit/s 0...500 m 0...10 m 20 kbit/s 0...2500 m 0...300 m 250 kbit/s 0...250 m 0...10 m 50 kbit/s 0...1000 m 0...120 m 500 kbit/s 0...100 m 0...10 m 800 kbit/s 0...40 m 0...6 m |
|
| bus type |
CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap
junctions CSMA/CA
CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA |
|
| number of slave |
63 CANopen
|
|
| number of devices per segment |
0...16 <= 205 m CANopen
0...32 <= 185 m CANopen 0...64 <= 160 m CANopen |
|
| memory description |
4096 kB internal RAM
256 kB internal RAM for data 3584 kB internal RAM for program constants and symbols |
|
| maximum size of object areas |
256 kB unlocated internal data
32634 %Mi located internal bits |
|
| default size of object areas |
1024 %MWi internal words located internal data
256 %KWi constant words located internal data 512 %Mi located internal bits |
|
| application structure |
1 periodic fast task
64 event tasks 1 cyclic/periodic master task No auxiliary task |
|
| execution time per instruction |
0.12 µs Boolean
0.17 µs double-length words 0.25 µs single-length words 1.16 µs floating points |
|
| number of instructions per ms |
6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
8.1 Kinst/ms 100 % Boolean |
|
| system overhead |
0.13 ms fast task
0.7 ms master task |
|
| current consumption |
135 mA 24 V DC
|
|
| supply |
Internal power supply via rack
|
|
| marking |
CE
|
|
| status LED |
1 LED green activity on Ethernet network (ETH ACT)
1 LED green integrated machine/installation bus operational (CAN RUN) 1 LED green processor running (RUN) 1 LED green status of Ethernet network (ETH STS) 1 LED red data rate (ETH 100) 1 LED red I/O module fault (I/O) 1 LED red integrated machine/installation bus fault (CAN ERR) 1 LED red memory card fault (CARD ERR) 1 LED red processor or system fault (ERR) 1 LED yellow activity on Modbus (SER COM) |
|
| product weight |
0.215 kg
|
| ambient air temperature for operation |
0...60 °C
|
|
|---|---|---|
| relative humidity |
10...95 % without condensation
|
|
| IP degree of protection |
IP20
|
|
| protective treatment |
TC
|
|
| directives |
2012/19/EU - WEEE directive
2014/35/EU - low voltage directive 2014/30/EU - electromagnetic compatibility |
|
| standards |
EN 61000-6-2
EN 61131-2 EN 61000-6-4 EN 61010-2-201 |
Schneider BMXP3420302CL M340 Processor Module - 1024 Discrete I/O, CANOpen, No Memory Card
- Brand: Schneider
- Product Code: BMXP3420302CL
- Availability: 1000
