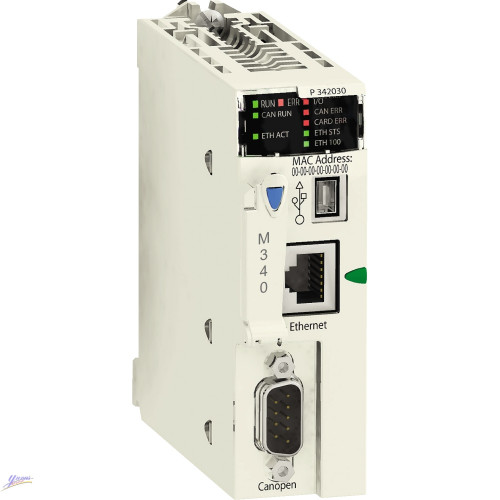

Schneider BMXP3420302H Processor Module M340 - Max 1024 Discrete + 256 Analog I/O - CANOpen
Description:
The Schneider BMXP3420302H Processor Module M340 stands as an epitome of cutting-edge industrial automation technology. Designed with precision and reliability, this module serves as the cornerstone for high-performance control systems, offering unparalleled capabilities in managing a myriad of industrial processes.
Key Features:
High-Capacity I/O: With the ability to handle a maximum of 1024 discrete and 256 analog I/O, this module delivers unparalleled flexibility and scalability, catering to diverse automation requirements with utmost efficiency.
Seamless Connectivity: Equipped with CANOpen protocol support, this module ensures seamless integration and communication within industrial networks, fostering interoperability and enhancing overall system functionality.
Robust Processing Power: Powered by advanced processing capabilities, the M340 Processor Module enables rapid data processing, ensuring real-time responsiveness crucial for mission-critical applications.
Reliability & Durability: Built to withstand challenging industrial environments, the module exhibits robustness and resilience, guaranteeing consistent performance even in demanding operational conditions.
Scalability & Adaptability: Offering extensive configuration options, this module adapts effortlessly to evolving automation needs, facilitating easy expansion and customization as per specific industrial requirements.
Applications:
- Industrial Automation Systems
- Manufacturing Processes
- Control and Monitoring Systems
- Machinery Automation
- Robotics and Motion Control
This Schneider BMXP3420302H Processor Module M340 represents a pinnacle in automation technology, embodying reliability, versatility, and innovation. Engineered to deliver exceptional performance, it empowers industries to achieve operational excellence while ensuring future-proof solutions for evolving automation needs.
range of product |
Modicon M340 automation platform
|
|
---|---|---|
product or component type |
Processor module
|
|
product specific application |
For severe environments
|
|
concept |
Transparent Ready
CANopen |
|
number of racks |
4
|
|
number of slots |
11
|
|
discrete I/O processor capacity |
1024 I/O multi-rack configuration
704 I/O single-rack configuration |
|
analogue I/O processor capacity |
256 I/O multi-rack configuration
66 I/O single-rack configuration |
|
number of application specific channel |
36
|
control channels |
Programmable loops
|
|
---|---|---|
motion control |
Independent axis CANopen
|
|
integrated connection type |
Ethernet TCP/IP RJ45 10/100 Mbit/s 1 twisted pair
USB port 12 Mbit/s CANopen master bus SUB-D 9 20 kbit/s...1 Mbit/s 2 twisted shielded pairs |
|
communication module processor capacity |
2 Ethernet communication module
4 AS-Interface module |
|
embedded communication service |
Bandwidth management, Ethernet TCP/IP
Data Editor, Ethernet TCP/IP Modbus TCP messaging, Ethernet TCP/IP Rack Viewer, Ethernet TCP/IP SNMP network administrator, Ethernet TCP/IP Network management (NMT) CANopen Process Data Object (PDO) CANopen Service Data Object (SDO) CANopen Special functions (SYNC, EMCY, TIME) CANopen |
|
port Ethernet |
10BASE-T/100BASE-TX
|
|
transmission rate |
1 Mbit/s 0...20 m 0...0.6 m
125 kbit/s 0...500 m 0...10 m 20 kbit/s 0...2500 m 0...300 m 250 kbit/s 0...250 m 0...10 m 50 kbit/s 0...1000 m 0...120 m 500 kbit/s 0...100 m 0...10 m 800 kbit/s 0...40 m 0...6 m |
|
bus type |
CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap
junctions CSMA/CA
CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA |
|
number of slave |
63 CANopen
|
|
number of devices per segment |
16 <= 205 m CANopen
32 <= 185 m CANopen 64 <= 160 m CANopen |
|
memory description |
4096 kB internal RAM
256 kB internal RAM for data 3584 kB internal RAM for program constants and symbols Supplied memory card (BMXRMS008MP) for activation of standard web server, class B10 Supplied memory card (BMXRMS008MP) for backup of programs, constants, symbols and data |
|
maximum size of object areas |
256 kB unlocated internal data
32634 %Mi located internal bits |
|
default size of object areas |
1024 %MWi internal words located internal data
256 %KWi constant words located internal data 512 %Mi located internal bits |
|
application structure |
64 event tasks
1 periodic fast task 1 cyclic/periodic master task No auxiliary task |
|
execution time per instruction |
0.12 µs Boolean
0.17 µs double-length words 0.25 µs single-length words 1.16 µs floating points |
|
number of instructions per ms |
6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic
8.1 Kinst/ms 100 % Boolean |
|
system overhead |
0.13 ms fast task
0.7 ms master task |
|
current consumption |
135 mA 24 V DC
|
|
supply |
Internal power supply via rack
|
|
marking |
CE
|
|
status LED |
1 LED green activity on Ethernet network (ETH ACT)
1 LED green integrated machine/installation bus operational (CAN RUN) 1 LED green processor running (RUN) 1 LED green status of Ethernet network (ETH STS) 1 LED red data rate (ETH 100) 1 LED red I/O module fault (I/O) 1 LED red integrated machine/installation bus fault (CAN ERR) 1 LED red memory card fault (CARD ERR) 1 LED red processor or system fault (ERR) 1 LED yellow activity on Modbus (SER COM) |
|
product weight |
0.215 kg
|
ambient air temperature for operation |
-25...70 °C
|
|
---|---|---|
relative humidity |
10...95 % without condensation
|
|
IP degree of protection |
IP20
|
|
protective treatment |
Conformal coating
|
|
environmental characteristic |
Gas resistant class Gx
Gas resistant class 3C4 Dust resistant class 3S4 Sand resistant class 3S4 Salt resistant level 2 Mold growth resistant class 3B2 Fungal spore resistant class 3B2 |
|
directives |
2014/30/EU - electromagnetic compatibility
2014/35/EU - low voltage directive 2012/19/EU - WEEE directive |
|
standards |
EN 61131-2
EN 61010-2-201 EN 61000-6-4 EN 61000-6-2 |
