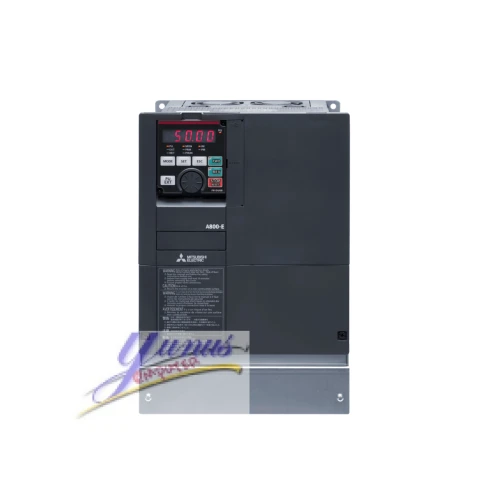

Mitsubishi FR-A820-00490-E1-N6 Inverter
Overview: The Mitsubishi FR-A820-00490-E1-N6 Inverter is a cutting-edge variable frequency drive designed to deliver unparalleled performance, reliability, and efficiency in industrial automation applications. With advanced features and precise control capabilities, this inverter empowers businesses to optimize their operations while reducing energy consumption and maximizing productivity.
Key Features:
High Performance: The FR-A820-00490-E1-N6 is engineered to deliver exceptional performance, offering precise speed and torque control for a wide range of industrial applications. Its advanced control algorithms ensure smooth operation and superior responsiveness, even in the most demanding environments.
Wide Power Range: This inverter is capable of handling a wide range of motor capacities, making it suitable for various industrial machinery and equipment. With a power rating of 90 kW, it provides the flexibility to accommodate different system requirements with ease.
Energy Efficiency: Mitsubishi's innovative design integrates energy-saving features to optimize efficiency and minimize power consumption. By adjusting motor speed according to load requirements, the FR-A820-00490-E1-N6 helps businesses reduce energy costs and lower their carbon footprint.
Robust Design: Built to withstand harsh industrial environments, the FR-A820-00490-E1-N6 features a rugged construction and high-quality components that ensure long-term reliability and durability. Its compact design allows for easy installation and integration into existing systems.
Advanced Control Options: Equipped with a range of advanced control options, including vector control, sensorless vector control, and V/f control, this inverter offers precise motor control and optimization capabilities. Users can customize parameters to meet specific application requirements and achieve optimal performance.
Integrated Safety Features: Safety is paramount in industrial settings, and the FR-A820-00490-E1-N6 prioritizes it with integrated safety features such as overload protection, overvoltage protection, and motor stall prevention. These features not only protect equipment and personnel but also ensure uninterrupted operation and productivity.
Applications:
Manufacturing: Ideal for use in various manufacturing processes such as conveyor systems, pumps, fans, and compressors, the FR-A820-00490-E1-N6 enhances productivity and efficiency while reducing downtime and maintenance costs.
Material Handling: From elevators and cranes to hoists and conveyor belts, this inverter provides precise control and reliable performance, making it an ideal choice for material handling applications in warehouses, distribution centers, and production facilities.
HVAC Systems: With its energy-efficient design and advanced control capabilities, the FR-A820-00490-E1-N6 is well-suited for HVAC (Heating, Ventilation, and Air Conditioning) systems, helping businesses optimize comfort levels while minimizing energy consumption and operating costs.
Conclusion: The Mitsubishi FR-A820-00490-E1-N6 Inverter sets a new standard for performance, reliability, and efficiency in industrial automation. With its advanced features, robust design, and versatile applications, it offers businesses a competitive edge by optimizing operations, reducing energy costs, and enhancing productivity. Invest in the FR-A820-00490-E1-N6 to elevate your industrial automation capabilities and drive success in today's dynamic marketplace.
Mitsubishi FR-A820-00490-E1-N6 Inverter AC; Pn: 5,5-11kW; 3x200-240V;In max: 49A;(7,5kW; 33A); IP20
Type | FR-A800 ADVANCED INVERTER |
Minimum Rated Voltage (V) | 200 |
Min. Permissible Voltage (V) | 170 |
Maximum Rated Voltage (V) | 240 |
Max. Permissible Voltage (V) | 264 |
Current Type | AC |
Phases | 3 |
Rated Output Current SLD (A) | 49 |
Rated Output Current LD (A) | 45 |
Rated Output Current ND (A) | 33 |
Rated Output Current HD (A) | 24 |
Rated Motor Capacity SLD (kW) | 11 |
Rated Motor Capacity LD (kW) | 11 |
Rated Motor Capacity ND (kW) | 7,5 |
Rated Motor Capacity HD (kW) | 5,5 |
Control Method | VECTOR CONTROL |
Motor Type | INDUCTION MOTOR, PM MOTOR |
Integrated EMC Filter | NO |
Safe Torque Off (STO) | YES |
Regenerative (4Q) | NO |
Integrated DC Choke | NO |
Display | FR-DU08 |
Display Type | 5 DIGITS LED |
PLC Function | YES |
Program Memory | 6K |
Program Memory Unit | STEPS |
Integrated Digital Inputs | 12 |
Digital Outputs (Transistor) | 5 |
Digital Outputs (Relay) | 2 |
Integrated Analogue Inputs | 3 |
Integrated Analogue Outputs | 2 |
Type of Terminal Block | PLUG |
Expandable | YES |
USB | 2 |
Built-In Network | CC-LINK IE FIELD; MODBUS/TCP |
Protection Class | IP20 |
Leakage Current (mA) | 22 |
Width (mm) | 220 |
Height (mm) | 260 |
Depth (mm) | 170 |
Weight (kg) | 6,7 |
European Order Code | 297619 |
Global Order Code | 1AYY67 |
Product hierarchy | IAK24104 |
Class Description | FA-Inverter: Inverter |
External Material Group | Standard Material |
Logistic Class | B |
Gross Weight | 9.526 KG |
Volume | 28.971 CDM |
Length | 27,5 CM |
Width | 43 CM |
Height | 24,5 CM |
Commodity Code | 85371091 |
Country of Origin | JP |
Predecessor | 284529 |
Selling Status | Standard |
REACH Limit Exceeded | NO |
Dangerous Goods Regulations | NO |
