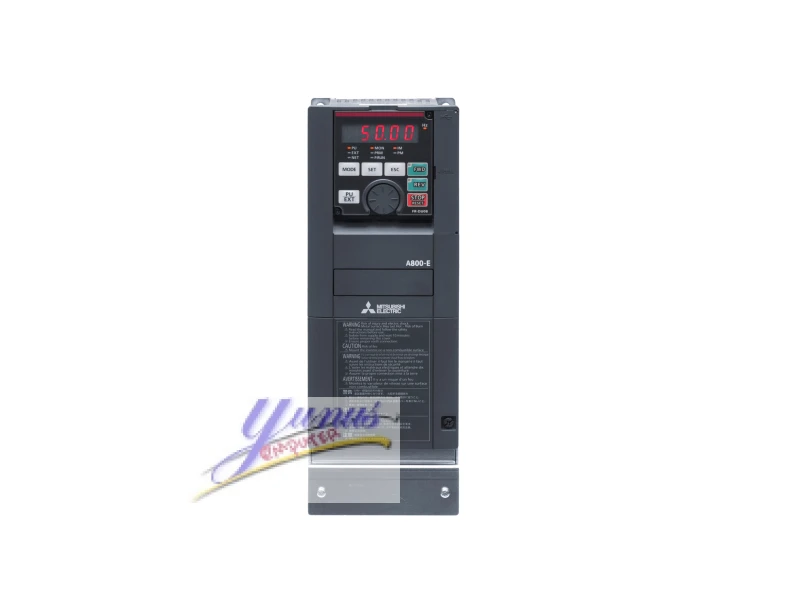

Mitsubishi FR-A820-01250-E1-N6 Inverter – High-Performance Industrial Drive
  • Brand: Mitsubishi
  • Product Code: FR-A820-01250-E1-N6
1000 |

Ex Tax: $0.00
Loading...

Description

Mitsubishi FR-A820-01250-E1-N6 Inverter

Product Overview:

The Mitsubishi FR-A820-01250-E1-N6 Inverter is a high-performance, advanced drive solution designed for sophisticated industrial applications. With a robust feature set and cutting-edge technology, this inverter excels in providing reliable and efficient motor control, making it ideal for use in a wide range of automation and process control environments.

Key Features:

  • High Efficiency and Reliability: The FR-A820-01250-E1-N6 is engineered for superior performance, offering high-efficiency operation and exceptional reliability. Its advanced design ensures minimal downtime and maintenance, enhancing overall system productivity.

  • Wide Input Voltage Range: This inverter supports a wide input voltage range, making it versatile for various applications and adaptable to different power supply conditions. It ensures stable performance across diverse operational environments.

  • Advanced Control Functions: The FR-A820 series incorporates sophisticated control functions, including vector control and precise speed regulation. These features enable accurate and smooth motor control, enhancing operational precision and efficiency.

  • Enhanced Communication Capabilities: Equipped with multiple communication options, including Ethernet and serial communication interfaces, the FR-A820-01250-E1-N6 facilitates seamless integration with existing control systems and networks, ensuring versatile connectivity and data exchange.

  • User-Friendly Interface: The inverter comes with an intuitive, easy-to-use interface that simplifies programming and operation. The clear display and accessible controls make configuration and monitoring straightforward, even for complex applications.

  • Robust Protection Features: Designed to operate in challenging environments, this inverter includes advanced protection features such as overload protection, short circuit protection, and thermal management. These safeguards ensure reliable operation and extend the lifespan of both the inverter and connected equipment.

  • Compact and Durable Design: The FR-A820-01250-E1-N6 features a compact and rugged design, allowing for easy installation in space-constrained environments while withstanding harsh industrial conditions.

Technical Specifications:

  • Model: FR-A820-01250-E1-N6
  • Input Voltage: [Specify Input Voltage Range]
  • Output Current: [Specify Output Current]
  • Control Type: Vector Control
  • Communication Interfaces: Ethernet, Serial
  • Protection Features: Overload, Short Circuit, Thermal Management
  • Dimensions: [Specify Dimensions]
  • Weight: [Specify Weight]

Applications:

The Mitsubishi FR-A820-01250-E1-N6 Inverter is ideal for use in a variety of industrial applications, including:

  • Manufacturing Processes: Improve operational efficiency and precision in automated manufacturing systems.
  • HVAC Systems: Enhance control and energy savings in heating, ventilation, and air conditioning systems.
  • Pumping and Blowing Systems: Achieve reliable and efficient motor control for pumps and blowers.
  • Material Handling: Optimize performance in conveyors and other material handling equipment.

Why Choose Mitsubishi FR-A820-01250-E1-N6?

Choosing the Mitsubishi FR-A820-01250-E1-N6 Inverter ensures you are investing in a high-quality, dependable drive solution that enhances performance and efficiency. With its advanced features, robust design, and versatile applications, it is the ideal choice for demanding industrial environments.

For more information on the Mitsubishi FR-A820-01250-E1-N6 Inverter, or to place an order, please contact us today.

Mitsubishi FR-A820-01250-E1-N6 Inverter AC; Pn: 18,5-30kW; 3x200-240V;In max: 125A;(22kW; 90A); IP20

  INVERTER
Type FR-A800 ADVANCED INVERTER
Minimum Rated Voltage (V) 200
Min. Permissible Voltage (V) 170
Maximum Rated Voltage (V) 240
Max. Permissible Voltage (V) 264
Current Type AC
Phases 3
Rated Output Current SLD (A) 125
Rated Output Current LD (A) 114
Rated Output Current ND (A) 90
Rated Output Current HD (A) 76
Rated Motor Capacity SLD (kW) 30
Rated Motor Capacity LD (kW) 30
Rated Motor Capacity ND (kW) 22
Rated Motor Capacity HD (kW) 18,5
Control Method VECTOR CONTROL
Motor Type INDUCTION MOTOR, PM MOTOR
Integrated EMC Filter NO
Safe Torque Off (STO) YES
Regenerative (4Q) NO
Integrated DC Choke NO
Display FR-DU08
Display Type 5 DIGITS LED
PLC Function YES
Program Memory 6K
Program Memory Unit STEPS
Integrated Digital Inputs 12
Digital Outputs (Transistor) 5
Digital Outputs (Relay) 2
Integrated Analogue Inputs 3
Integrated Analogue Outputs 2
Type of Terminal Block PLUG
Expandable YES
USB 2
Built-In Network CC-LINK IE FIELD; MODBUS/TCP
Protection Class IP20
Leakage Current (mA) 22
PRODUCT DIMENSIONS & WEIGHT
Width (mm) 250
Height (mm) 400
Depth (mm) 190
Weight (kg) 15
ORDER CODES
European Order Code 297623
Global Order Code 1AYY71
CLASSIFICATION DATA
Product hierarchy IAK24104
Class Description FA-Inverter: Inverter
External Material Group Standard Material
AVAILABILITY
Logistic Class B
PACKAGING DIMENSIONS & WEIGHT
Gross Weight 19.947  KG
Volume 49.14  CDM
Length 30 CM
Width 63 CM
Height 26 CM
COMMODITY / IMPORT CODE
Commodity Code 85371091
Country of Origin JP
LIFE CYCLE
Predecessor 284533
CAMPAIGNS
Selling Status Standard
ENVIRONMENTAL

REACH Limit Exceeded NO
Dangerous Goods Regulations NO
