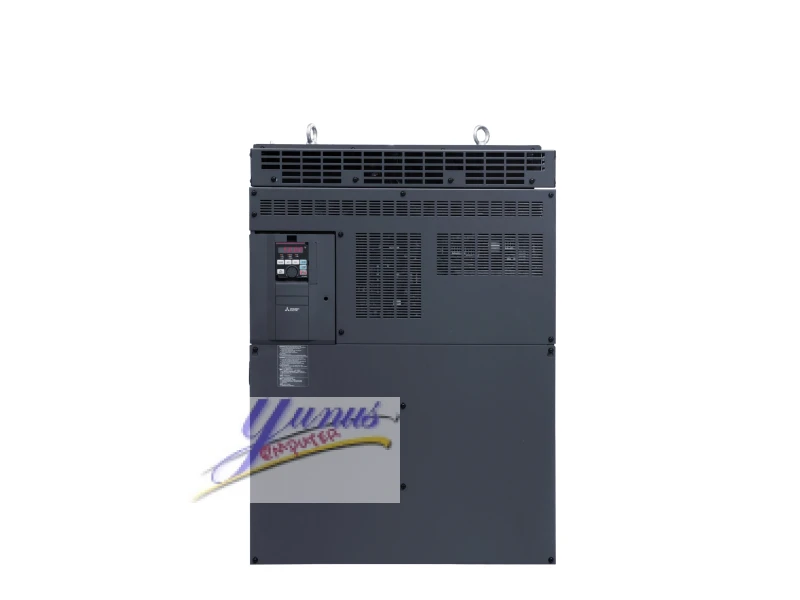

Mitsubishi FR-AF840-06830-60 Inverter Body
Product Overview
The Mitsubishi FR-AF840-06830-60 Inverter Body represents the pinnacle of innovation and efficiency in industrial automation. Engineered for superior performance and reliability, this inverter body is designed to meet the rigorous demands of modern industrial applications. With a robust construction and advanced features, the FR-AF840-06830-60 is an ideal solution for optimizing motor control and enhancing system productivity.
Key Features
Advanced Control Technology
- Vector Control and V/F Control: Provides precise and stable motor control for various applications, ensuring optimal performance and energy efficiency.
- Auto-tuning Function: Automatically adjusts parameters for optimal motor performance, reducing setup time and ensuring smooth operation.
High Efficiency and Energy Saving
- Regenerative Function: Captures and reuses energy, significantly reducing power consumption and operational costs.
- Intelligent Energy Optimization: Adjusts power usage based on load conditions, maximizing energy efficiency and minimizing wastage.
Robust and Durable Design
- Heavy-Duty Construction: Built to withstand harsh industrial environments, ensuring long-term reliability and reduced maintenance.
- Wide Operating Temperature Range: Capable of operating in extreme temperatures, making it suitable for diverse applications.
Comprehensive Protection Mechanisms
- Overload and Overcurrent Protection: Safeguards the inverter and connected equipment from damage, enhancing system longevity.
- Short Circuit and Ground Fault Protection: Ensures safe operation by preventing electrical faults and mitigating risks.
User-Friendly Interface
- Easy-to-Use Programming: Intuitive programming interface simplifies setup and operation, allowing quick adjustments and parameter changes.
- Real-Time Monitoring: Provides real-time data on performance and status, enabling proactive maintenance and troubleshooting.
Technical Specifications
- Input Voltage: 380-480V AC
- Output Power: 68.3 kW
- Control Method: V/F Control, Vector Control
- Frequency Range: 0.2 to 400 Hz
- Protection Class: IP20
- Operating Temperature: -10°C to 50°C
- Communication Protocols: Modbus RTU, Ethernet/IP (optional)
Applications
The Mitsubishi FR-AF840-06830-60 Inverter Body is versatile and can be deployed across various industries, including:
- Manufacturing: Enhances production line efficiency and reduces downtime.
- HVAC Systems: Optimizes energy use in heating, ventilation, and air conditioning systems.
- Water Treatment: Ensures reliable and efficient operation of pumps and filtration systems.
- Material Handling: Improves control and safety in conveyor and hoisting applications.
Why Choose Mitsubishi FR-AF840-06830-60 Inverter Body?
Selecting the Mitsubishi FR-AF840-06830-60 Inverter Body means investing in a product that combines cutting-edge technology, robust design, and energy efficiency. Backed by Mitsubishi’s renowned quality and support, this inverter body delivers unparalleled performance, making it a trusted choice for demanding industrial environments.
Conclusion
For industries seeking to elevate their operational efficiency and reduce energy costs, the Mitsubishi FR-AF840-06830-60 Inverter Body is the ultimate solution. Its advanced features, durability, and user-friendly interface make it an indispensable component for modern industrial automation systems. Explore the future of motor control with the Mitsubishi FR-AF840-06830-60 Inverter Body and experience the difference in performance and reliability.
Mitsubishi FR-AF840-06830-60 Inverter Body AC; Pn: 250-355kW; 3x380-500V;In max: 683A;(280kW; 547A); IP00
Type | BASE UNIT FOR INV A840/F840 |
Minimum Rated Voltage (V) | 380 |
Min. Permissible Voltage (V) | 323 |
Maximum Rated Voltage (V) | 500 |
Max. Permissible Voltage (V) | 550 |
Current Type | AC |
Phases | 3 |
Rated Output Current SLD (A) | 683 |
Rated Output Current LD (A) | 610 |
Rated Output Current ND (A) | 547 |
Rated Output Current HD (A) | 481 |
Rated Motor Capacity SLD (kW) | 355 |
Rated Motor Capacity LD (kW) | 315 |
Rated Motor Capacity ND (kW) | 280 |
Rated Motor Capacity HD (kW) | 250 |
Control Method | VECTOR CONTROL |
Motor Type | INDUCTION MOTOR, PM MOTOR |
Integrated EMC Filter | YES |
Safe Torque Off (STO) | YES |
Regenerative (4Q) | NO |
Integrated DC Choke | NO |
Display | FR-DU08 |
Display Type | 5 DIGITS LED |
PLC Function | YES |
Program Memory | 6K |
Program Memory Unit | STEPS |
Integrated Digital Inputs | 12 |
Digital Outputs (Transistor) | 5 |
Digital Outputs (Relay) | 2 |
Integrated Analogue Inputs | 3 |
Integrated Analogue Outputs | 2 |
Type of Terminal Block | PLUG |
Expandable | YES |
RS-485 | 2 |
USB | 2 |
Protection Class | IP00 |
Power Loss (W) | 7550 |
Standby Power Consumption (W) | 125 |
Leakage Current (mA) | 35(DELTA) / 2(STAR) |
Width (mm) | 680 |
Height (mm) | 1010 |
Depth (mm) | 380 |
European Order Code | 307194 |
Global Order Code | FRAF84006830 |
Product hierarchy | IAK244 |
Class Description | FA-Inverter: Inverter |
External Material Group | Standard Material |
Logistic Class | A |
Gross Weight | 181.5 KG |
Volume | 506.22 CDM |
Length | 118 CM |
Width | 82,5 CM |
Height | 52 CM |
Commodity Code | 85044090 |
Country of Origin | CN |
Predecessor | 169839 |
Selling Status | Standard |
REACH Limit Exceeded | NO |
Dangerous Goods Regulations | NO |
