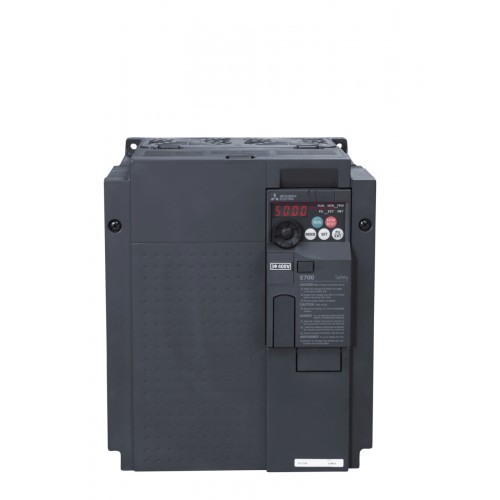

Mitsubishi FR-E740-026-EC Inverter
Overview
The Mitsubishi FR-E740-026-EC Inverter is engineered for precision and reliability, offering superior performance in a compact, user-friendly package. Designed for various industrial applications, this high-performance inverter provides efficient control of AC motors, optimizing energy use and enhancing operational efficiency.
Key Features
- Advanced Control Technology: Incorporates sophisticated vector control algorithms, ensuring precise speed and torque management for optimal motor performance.
- High Performance: Delivers a power output of 2.2 kW (3 HP) with a wide input voltage range, making it suitable for various industrial environments.
- Compact Design: Features a space-saving design without compromising on functionality, allowing for easy integration into tight spaces and minimizing installation costs.
- Enhanced User Interface: Equipped with a user-friendly keypad and LCD display for easy programming and monitoring, simplifying setup and operational adjustments.
- Energy Efficiency: Designed to reduce energy consumption and operational costs through advanced energy-saving features and efficient motor control.
- Versatile Applications: Ideal for a wide range of applications including conveyors, pumps, fans, and other machinery, providing flexible solutions for different operational needs.
- Robust Protection: Built with integrated protection features including overload, short circuit, and over-voltage protection to ensure reliable and safe operation.
Technical Specifications
- Model: FR-E740-026-EC
- Input Voltage: 200-240V AC, Single-Phase
- Output Power: 2.2 kW (3 HP)
- Frequency Range: 0.5 to 400 Hz
- Control Method: Vector Control (V/F control, vector control)
- Dimensions (W x H x D): [Specify dimensions]
- Weight: [Specify weight]
Applications
The FR-E740-026-EC Inverter is designed to meet the needs of demanding industrial applications. Its high control precision and reliability make it suitable for use in:
- Manufacturing: Enhancing the performance of automated production lines.
- HVAC Systems: Regulating the speed of fans and pumps in heating, ventilation, and air conditioning systems.
- Water Treatment: Controlling pumps and mixers for effective water management.
- Material Handling: Optimizing the operation of conveyors and other material handling equipment.
Why Choose Mitsubishi FR-E740-026-EC?
Choose the Mitsubishi FR-E740-026-EC Inverter for its proven reliability, advanced control capabilities, and cost-effective energy management. With its robust design and comprehensive protection features, it ensures uninterrupted operation and longevity in demanding environments. Upgrade your motor control systems with the FR-E740-026-EC and experience enhanced efficiency and performance.
This description incorporates technical details and emphasizes the product's key features and benefits, while also focusing on SEO-friendly elements.
Mitsubishi FR-E740-026-EC Inverter; Rated Power: 0,75kW; 3x380-480V; Rated Current: 2,6A@50°C; IP20
INVERTER
Type |
FR-E700 STANDARD INVERTER |
Minimum Rated Voltage (V) |
380 |
Min. Permissible Voltage (V) |
325 |
Maximum Rated Voltage (V) |
480 |
Max. Permissible Voltage (V) |
528 |
Current Type |
AC |
Phases |
3 |
Rated Output Current ND (A) |
2,6 |
Rated Motor Capacity ND (kW) |
0,75 |
Control Method |
ADVANCED MAGN. FLUX VEC. CTRL |
Motor Type |
INDUCTION MOTOR |
Brake Chopper ED (%) |
30 |
Integrated EMC Filter |
NO |
Safe Torque Off (STO) |
YES |
Regenerative (4Q) |
NO |
Integrated DC Choke |
NO |
Display |
BUILT-IN |
Display Type |
3 DIGITS LED |
PLC Function |
NO |
Integrated Digital Inputs |
6 |
Digital Outputs (Transistor) |
2 |
Digital Outputs (Relay) |
1 |
Integrated Analogue Inputs |
2 |
Integrated Analogue Outputs |
1 |
Type of Terminal Block |
PLUG |
Expandable |
YES |
RS-485 |
1 |
USB |
1 |
Built-In Network |
MODBUS-RTU |
Protection Class |
IP20 |
Power Loss (W) |
55 |
Standby Power Consumption (W) |
9,2 |
Leakage Current (mA) |
1 |
PRODUCT DIMENSIONS & WEIGHT
Width (mm) |
140 |
Height (mm) |
150 |
Depth (mm) |
114 |
Weight (kg) |
1,4 |
ORDER CODES
European Order Code |
211956 |
Global Order Code |
1ARB02E00 |
CLASSIFICATION DATA
Product hierarchy |
IAK234 |
Class Description |
FA-Inverter: Inverter |
External Material Group |
Standard Material |
AVAILABILITY
PACKAGING DIMENSIONS & WEIGHT
Gross Weight |
1.815 KG |
Volume |
9.148 CDM |
Length |
23 CM |
Width |
21,5 CM |
Height |
18,5 CM |
COMMODITY / IMPORT CODE
Commodity Code |
85044090 |
Country of Origin |
CN |
LIFE CYCLE
Successor |
234802 FR-E740-026SC-EC |
CAMPAIGNS
ENVIRONMENTAL
RoHS Compliance |
COMPLIANT |
REACH Limit Exceeded |
NO |
Dangerous Goods Regulations |
NO |
