• Mitsubishi FX3G-2AD-BD PLC Analog Adapter - 2-Channel High-Resolution Input Module

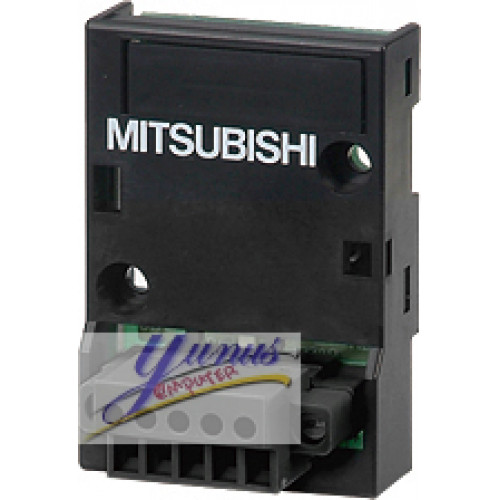

Mitsubishi FX3G-2AD-BD PLC Analog Adapter

Overview: The Mitsubishi FX3G-2AD-BD PLC Analog Adapter is an advanced, high-precision module designed to integrate seamlessly with the FX3G series of PLCs. This adapter enhances the functionality of your PLC system by providing reliable and accurate analog input capabilities, ideal for applications requiring precise data acquisition and control.

Key Features:

  • High-Resolution Analog Input: The FX3G-2AD-BD features 2 high-resolution analog input channels, supporting a wide range of analog signals. Each channel can handle voltage and current signals, ensuring compatibility with various sensors and devices.

  • Accurate Measurement and Conversion: With a 12-bit resolution, this analog adapter delivers precise measurement and conversion of analog signals into digital data. This high level of accuracy is crucial for applications requiring detailed and reliable data analysis.

  • Seamless Integration: Designed for easy integration with the FX3G PLC series, the FX3G-2AD-BD connects directly to the FX3G base unit, facilitating straightforward installation and configuration. This compatibility ensures minimal disruption and streamlined system enhancements.

  • Flexible Signal Types: The module supports multiple signal types, including voltage (0-10V) and current (4-20mA), offering versatility for different types of analog devices and sensors.

  • Robust Performance: Built to operate reliably in various industrial environments, the FX3G-2AD-BD is engineered to withstand challenging conditions while maintaining optimal performance and accuracy.

  • Enhanced System Control: By incorporating the FX3G-2AD-BD into your PLC system, you gain improved control over complex processes and systems, leveraging the analog data for more sophisticated automation and monitoring applications.

  • User-Friendly Configuration: The adapter features intuitive configuration options, allowing users to easily set up and calibrate the analog inputs through Mitsubishi’s programming software. This ease of use simplifies the setup process and reduces downtime.

Applications: The Mitsubishi FX3G-2AD-BD Analog Adapter is suitable for a wide range of industrial applications, including:

  • Process control systems requiring accurate measurement of analog signals
  • Automated machinery and equipment monitoring
  • Environmental monitoring and data acquisition
  • Precision control systems in manufacturing and production

Specifications:

  • Input Channels: 2
  • Resolution: 12-bit
  • Input Signal Types: Voltage (0-10V), Current (4-20mA)
  • Compatibility: Mitsubishi FX3G PLC Series
  • Operating Temperature: -10°C to 55°C
  • Dimensions: 25mm x 90mm x 60mm
  • Weight: 100g

Conclusion: The Mitsubishi FX3G-2AD-BD PLC Analog Adapter is an essential component for enhancing the analog input capabilities of your FX3G PLC system. With its high resolution, versatile signal support, and reliable performance, this adapter ensures that your automation and control processes are more precise and efficient. Elevate your PLC system’s capabilities with the Mitsubishi FX3G-2AD-BD and experience the benefits of advanced analog data integration.


Let me know if you need any adjustments or additional information!

Mitsubishi FX3G-2AD-BD PLC, FX3G Analog adapter, 2 analog inputs, 12bit

  ANALOGUE I/O MODULE
Type FX3G
Integrated Analogue Inputs 2
Input Voltage Range (V) 0-10
Input Current Range (mA) 4-20
Min. Ambient Temperature (°C) 0
Max. Ambient Temperature (°C) 55
PRODUCT DIMENSIONS & WEIGHT
Width (mm) 35
Height (mm) 51,2
Depth (mm) 12
Weight (kg) 0,02
ORDER CODES
European Order Code 221265
Global Order Code 09T346
CLASSIFICATION DATA
Product hierarchy IAD214
Class Description FA-COM PLC: Analogue I/O Module
External Material Group Standard Material
AVAILABILITY
Logistic Class A
PACKAGING DIMENSIONS & WEIGHT
Gross Weight 0.077  KG
Volume 0.64  CDM
Length 16 CM
Width 10 CM
Height 4 CM
COMMODITY / IMPORT CODE
Commodity Code 85389099
Country of Origin JP
LIFE CYCLE
Predecessor 139421  FX1N-2AD-BD
CAMPAIGNS
Selling Status Standard
ENVIRONMENTAL

RoHS Compliance COMPLIANT
REACH Limit Exceeded NO
Dangerous Goods Regulations NO

Mitsubishi FX3G-2AD-BD PLC Analog Adapter - 2-Channel High-Resolution Input Module

  • Brand: Mitsubishi
  • Product Code: FX3G-2AD-BD
  • Availability: 1000
