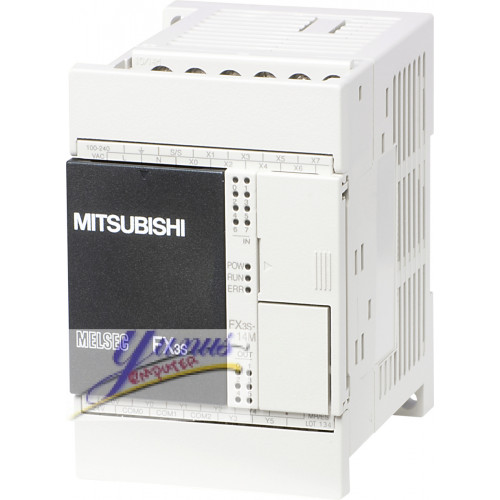

Mitsubishi FX3S-14MR/ES FX3S Base Unit

Overview

The Mitsubishi FX3S-14MR/ES FX3S Base Unit is an integral component in the Mitsubishi FX3S series, designed to deliver superior performance, flexibility, and efficiency for a wide range of industrial automation applications. As a compact and cost-effective solution, this base unit is tailored for small-scale automation tasks while ensuring seamless integration and robust functionality.

Key Features

1. Compact Design: The FX3S-14MR/ES boasts a space-saving design, making it ideal for applications with limited installation space. Its compact form factor does not compromise on performance, ensuring powerful control capabilities within a small footprint.

2. High Performance: Equipped with a powerful processor, the FX3S-14MR/ES ensures fast processing speeds and reliable operation. This enables precise control and coordination of various automation tasks, enhancing overall system efficiency.

3. I/O Capabilities: This base unit features 8 input and 6 relay output points, providing ample I/O options to manage multiple devices and sensors. The flexible I/O configuration supports various input types and ensures compatibility with a wide range of peripherals.

4. Built-in Functions: The FX3S-14MR/ES includes numerous built-in functions such as counters, timers, and data registers, reducing the need for additional programming and simplifying the implementation of complex control tasks.

5. Networking and Communication: With integrated communication ports, the FX3S-14MR/ES facilitates easy connection to other devices and networks. This ensures smooth data exchange and remote monitoring capabilities, enhancing the overall system's flexibility and scalability.

6. Energy Efficiency: Designed with energy efficiency in mind, the FX3S-14MR/ES minimizes power consumption without sacrificing performance. This makes it an environmentally friendly choice for modern automation systems.

7. Easy Programming: The FX3S-14MR/ES supports intuitive programming through Mitsubishi's GX Works3 software. This user-friendly interface allows for quick setup, programming, and troubleshooting, reducing downtime and increasing productivity.

Applications

The Mitsubishi FX3S-14MR/ES FX3S Base Unit is suitable for a wide range of applications, including but not limited to:

• Factory Automation: Ideal for controlling and monitoring manufacturing processes, ensuring optimal performance and productivity.
• Building Automation: Efficiently manages HVAC systems, lighting, and security systems in commercial and residential buildings.
• Machine Control: Provides precise control for various machinery, enhancing operational efficiency and safety.
• Process Control: Suitable for applications in chemical, pharmaceutical, and food processing industries, where accurate and reliable control is paramount.

Technical Specifications

• Model: FX3S-14MR/ES
• Power Supply: 100-240V AC
• Input Points: 8
• Output Points: 6 (Relay)
• Program Capacity: 4,000 steps
• Data Registers: 2,000
• Communication Ports: 1 RS-422/RS-485, 1 USB
• Operating Temperature: 0°C to 55°C
• Storage Temperature: -25°C to 75°C
• Dimensions: 90 x 60 x 75 mm (H x W x D)
• Weight: 0.35 kg

Conclusion

The Mitsubishi FX3S-14MR/ES FX3S Base Unit is a versatile and reliable solution for small-scale automation tasks, offering a perfect balance of performance, flexibility, and efficiency. Its compact design, high I/O capabilities, and robust functionality make it an ideal choice for various industrial and commercial applications. With easy programming and integrated communication features, the FX3S-14MR/ES ensures seamless integration and optimal control, driving productivity and efficiency in your automation systems.

Enhance your automation capabilities with the Mitsubishi FX3S-14MR/ES FX3S Base Unit, a trusted component in the Mitsubishi FX3S series.

Mitsubishi FX3S-14MR/ES FX3S Base Unit AC100-240V;8 Inputs DC24V;6 Relay Outputs
