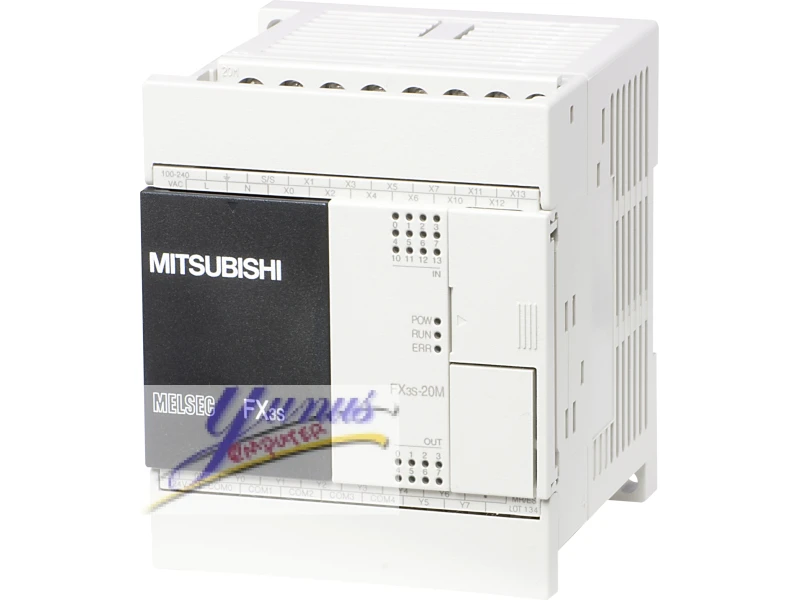

Mitsubishi FX3S-20MT/ES FX3S Base Unit
  • Brand: Mitsubishi
  • Product Code: FX3S-20MT/ES
1000 |

Ex Tax: $0.00
Loading...

Description

Mitsubishi FX3S-20MT/ES FX3S Base Unit

Enhance your automation projects with the Mitsubishi FX3S-20MT/ES FX3S Base Unit, a high-performance programmable logic controller (PLC) designed to meet the demanding requirements of modern industrial applications. As part of Mitsubishi’s renowned FX3S series, this compact and versatile PLC offers robust functionality and reliability for a wide range of automation tasks.

Key Features:

  • High Performance: The FX3S-20MT/ES boasts a powerful processing capability, featuring a 20-point input/output (I/O) configuration that ensures precise control and monitoring of your machinery and processes. This PLC is engineered to handle complex tasks with efficiency and speed.

  • Compact Design: With its compact footprint, the FX3S-20MT/ES is ideal for applications where space is limited. Its space-saving design does not compromise on performance, making it a practical choice for various industrial environments.

  • Enhanced Connectivity: The base unit comes with built-in communication ports, including an RS-232C serial interface, facilitating seamless integration with other devices and systems. This feature enhances flexibility and ease of use in complex automation setups.

  • Versatile Application: Designed for versatility, the FX3S-20MT/ES supports a wide range of expansion modules and accessories. This modular approach allows you to customize the PLC to meet specific requirements, making it suitable for diverse applications from small-scale operations to more intricate systems.

  • User-Friendly Programming: The FX3S-20MT/ES is compatible with Mitsubishi’s GX Works2 programming software, which offers a user-friendly interface for intuitive programming and configuration. This ease of use helps reduce setup time and enhances productivity.

  • Durability and Reliability: Built to withstand harsh industrial conditions, the FX3S-20MT/ES is engineered for durability and long-term reliability. Its robust construction ensures consistent performance even in challenging environments.

  • Energy Efficiency: Mitsubishi’s FX3S series is designed with energy efficiency in mind, helping to reduce operational costs and minimize environmental impact. The FX3S-20MT/ES contributes to a more sustainable automation solution.

Applications:

The Mitsubishi FX3S-20MT/ES FX3S Base Unit is ideal for a wide range of applications including manufacturing automation, process control, and machine control systems. Its compact design and advanced features make it suitable for use in various industries such as automotive, food and beverage, packaging, and more.

Technical Specifications:

  • Model: FX3S-20MT/ES
  • I/O Points: 20 (12 inputs, 8 outputs)
  • Communication Interface: RS-232C
  • Programming Software: GX Works2
  • Power Supply: 24V DC
  • Operating Temperature: 0°C to 55°C
  • Dimensions: [Insert Dimensions]
  • Weight: [Insert Weight]

Why Choose Mitsubishi FX3S-20MT/ES?

The Mitsubishi FX3S-20MT/ES FX3S Base Unit combines high performance, compact design, and versatile functionality to provide a reliable and efficient solution for your automation needs. With its advanced features and user-friendly programming, this PLC is engineered to deliver exceptional performance and ease of use, making it a valuable addition to any industrial automation system.

Optimize your automation processes with the Mitsubishi FX3S-20MT/ES and experience the reliability and efficiency that Mitsubishi products are known for.


Feel free to adjust the dimensions, weight, and any specific technical details as needed!

Mitsubishi FX3S-20MT/ES FX3S Base Unit AC100-240V;12 Inputs DC24V;8 Transistor Outputs (sink)

  MAIN UNIT
Type FX3S
Power Supply (V) 100-240
Current Type AC
Program Memory 16K STEPS
Program Memory Unit EEPROM
Integrated Digital Inputs 12
Integrated Digital Outputs 8
Output Type TRANSISTOR
Output Logic SINK
Local I/O Points 20
Local + Remote I/O Points 20
Expandable NO
Cycle Time LD (ns) 210
Cycle Time MOV (ns) 500
USB 1
RS-422 1
Power Consumption (W) 20
Buffer Battery NO
Protection Class IP10
Min. Ambient Temperature (°C) 0
Max. Ambient Temperature (°C) 55
PRODUCT DIMENSIONS & WEIGHT
Width (mm) 75
Height (mm) 90
Depth (mm) 75
Weight (kg) 0,4
ORDER CODES
European Order Code 267127
Global Order Code 09H032
CLASSIFICATION DATA
Product hierarchy IAD215
Class Description FA-COM PLC: Main Unit
External Material Group Standard Material
AVAILABILITY
Logistic Class C
PACKAGING DIMENSIONS & WEIGHT
Gross Weight 0.388  KG
Volume 1.54  CDM
Length 14 CM
Width 11 CM
Height 10 CM
COMMODITY / IMPORT CODE
Commodity Code 85371091
Country of Origin JP
CAMPAIGNS
Selling Status Standard
ENVIRONMENTAL

RoHS Compliance COMPLIANT
REACH Limit Exceeded NO
Dangerous Goods Regulations NO
