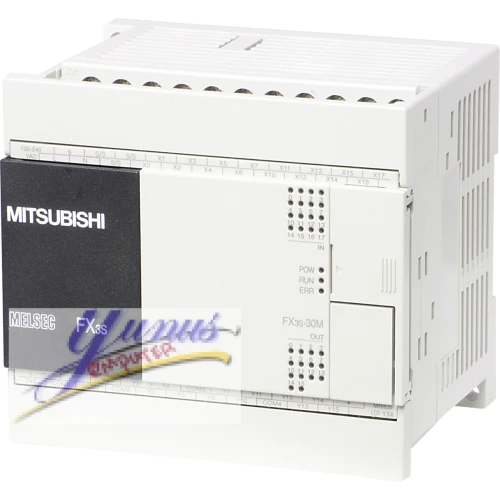

• Mitsubishi FX3S-30MT/DS FX3S Base Unit – Compact Programmable Logic Controller

Mitsubishi FX3S-30MT/DS FX3S Base Unit – Advanced Compact PLC for Precision Control

Enhance your automation capabilities with the Mitsubishi FX3S-30MT/DS FX3S Base Unit, a high-performance programmable logic controller (PLC) designed for precise control and reliability in a compact package. Ideal for various industrial applications, this base unit combines advanced technology with exceptional versatility to streamline your automation processes.

Key Features:

  • Compact and Efficient Design: The FX3S-30MT/DS features a space-saving design without compromising on performance. Its compact size allows for easy integration into tight spaces, making it perfect for applications where space is at a premium.

  • Integrated I/O Modules: This base unit comes with 30 integrated I/O points, including 20 digital inputs and 10 digital outputs, ensuring a wide range of connectivity options for your devices and sensors. This built-in functionality reduces the need for additional modules, simplifying system design and reducing overall costs.

  • High-Speed Processing: Equipped with a powerful processor, the FX3S-30MT/DS delivers fast and reliable execution of complex control tasks. Its high-speed processing capabilities ensure that even the most demanding applications are handled efficiently, improving overall system performance.

  • Enhanced Communication Capabilities: The FX3S-30MT/DS supports multiple communication protocols, including RS-232C and RS-422/485, enabling seamless integration with various industrial networks and devices. This flexibility enhances data exchange and communication within your automation system.

  • Advanced Programming and Configuration: Utilizing Mitsubishi’s GX Works2 software, programming and configuration of the FX3S-30MT/DS is straightforward and user-friendly. The software offers a range of features for efficient programming, debugging, and monitoring, facilitating rapid deployment and maintenance.

  • Robust and Reliable Operation: Designed for industrial environments, the FX3S-30MT/DS is built to withstand harsh conditions and maintain reliable performance. Its robust construction ensures durability and long-term operation, minimizing downtime and maintenance costs.

  • Scalable and Expandable: The FX3S series offers a range of expansion modules to meet your specific needs. As your requirements grow, you can easily expand the system with additional I/O modules, communication options, and other enhancements, ensuring long-term adaptability and scalability.

Applications:

The Mitsubishi FX3S-30MT/DS is ideal for a wide range of applications, including:

  • Manufacturing Automation: Control and monitor machinery, production lines, and processes with precision and reliability.
  • Building Automation: Manage HVAC systems, lighting, and other building controls efficiently.
  • Process Control: Implement accurate control for various industrial processes, ensuring optimal performance and safety.

Technical Specifications:

  • Model: Mitsubishi FX3S-30MT/DS
  • I/O Points: 30 (20 digital inputs, 10 digital outputs)
  • Communication Ports: RS-232C, RS-422/485
  • Programming Software: GX Works2
  • Environmental Rating: Industrial-grade for harsh conditions

Why Choose the Mitsubishi FX3S-30MT/DS FX3S Base Unit?

The Mitsubishi FX3S-30MT/DS stands out for its compact design, high-speed processing, and versatile communication capabilities. Its robustness and reliability make it an excellent choice for a wide range of industrial automation applications, ensuring precise control and efficient operation. Upgrade your automation system with the FX3S-30MT/DS and experience unparalleled performance and flexibility.


Feel free to adjust any specifics or add more details based on your requirements!

Mitsubishi FX3S-30MT/DS FX3S Base Unit DC24V;16 Inputs DC24V;14 Transistor Outputs (sink)

  MAIN UNIT
Type FX3S
Power Supply (V) 24
Current Type DC
Program Memory 16K STEPS
Program Memory Unit EEPROM
Integrated Digital Inputs 6
Integrated Digital Outputs 4
Output Type TRANSISTOR
Output Logic SINK
Local I/O Points 30
Local + Remote I/O Points 30
Expandable NO
Cycle Time LD (ns) 210
Cycle Time MOV (ns) 500
USB 1
RS-422 1
Power Consumption (W) 8,5
Buffer Battery NO
Protection Class IP10
Min. Ambient Temperature (°C) 0
Max. Ambient Temperature (°C) 55
PRODUCT DIMENSIONS & WEIGHT
Width (mm) 100
Height (mm) 90
Depth (mm) 49
Weight (kg) 0,35
ORDER CODES
European Order Code 271694
Global Order Code 09H063
CLASSIFICATION DATA
Product hierarchy IAD215
Class Description FA-COM PLC: Main Unit
External Material Group Standard Material
AVAILABILITY
Logistic Class C
PACKAGING DIMENSIONS & WEIGHT
Gross Weight 0.37  KG
Volume 1.54  CDM
Length 14 CM
Width 11 CM
Height 10 CM
COMMODITY / IMPORT CODE
Commodity Code 85371091
Country of Origin JP
LIFE CYCLE
Predecessor 154181
ENVIRONMENTAL

RoHS Compliance COMPLIANT
REACH Limit Exceeded NO
Dangerous Goods Regulations NO

Mitsubishi FX3S-30MT/DS FX3S Base Unit – Compact Programmable Logic Controller

  • Brand: Mitsubishi
  • Product Code: FX3S-30MT/DS
  • Availability: 1000

Tags: Mitsubishi FX3S-30MT/DS, FX3S Base Unit, Compact PLC, Programmable Logic Controller, Mitsubishi PLC, Industrial Automation, High-Speed PLC, Mitsubishi FX3S, Precision Control, Industrial Control System
