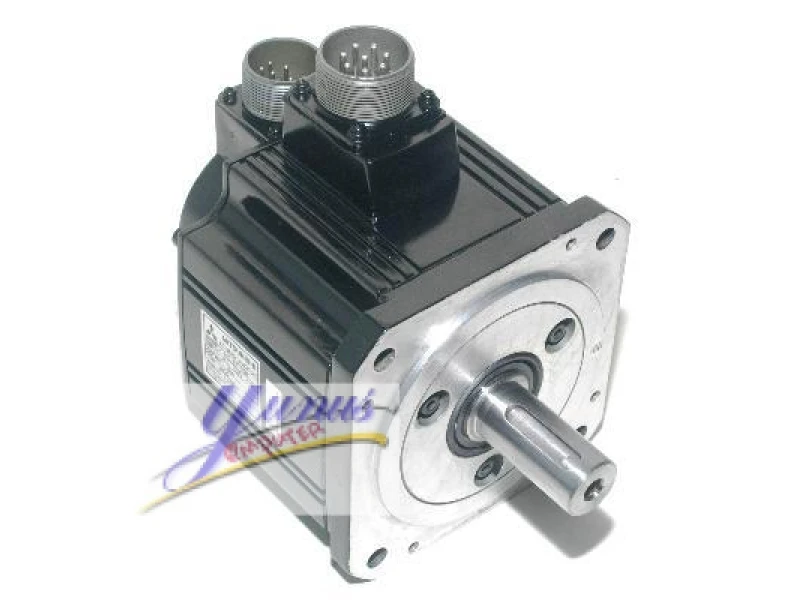

Mitsubishi HC-SFS1024B Servo Motor
  • Brand: Mitsubishi
  • Product Code: HC-SFS1024B
1000 |

Ex Tax: $0.00
Loading...

Description

Mitsubishi HC-SFS1024B Servo Motor: Precision and Performance Redefined

Overview

The Mitsubishi HC-SFS1024B Servo Motor is a high-performance, highly reliable servo motor designed to meet the demanding needs of modern industrial applications. Part of Mitsubishi's acclaimed Melservo J3 series, this servo motor delivers exceptional torque, speed, and precision, making it an ideal choice for a wide range of automation tasks.

Key Features

  • High Torque and Speed: The HC-SFS1024B offers a robust torque output of 10.2 Nm and operates at a maximum speed of 2,000 RPM, ensuring powerful and swift performance for various applications.
  • Compact and Lightweight Design: Engineered for space efficiency, this servo motor boasts a compact form factor without compromising on power, making it suitable for installations with limited space.
  • Advanced Encoder Technology: Equipped with a high-resolution absolute encoder, the HC-SFS1024B provides precise positioning and feedback, enhancing the accuracy and stability of your automation systems.
  • Durable Construction: Built with high-quality materials, the HC-SFS1024B is designed to withstand harsh industrial environments, ensuring long-term reliability and reduced maintenance costs.
  • Energy Efficiency: This servo motor incorporates Mitsubishi's advanced motor control technology, optimizing energy consumption and contributing to overall system efficiency.

Technical Specifications

  • Model Number: HC-SFS1024B
  • Rated Torque: 10.2 Nm
  • Maximum Speed: 2,000 RPM
  • Encoder Type: Absolute, 131,072 pulses/rev
  • Power Supply: 200V AC
  • Rated Current: 7.4 A
  • Weight: 7.2 kg
  • Protection Class: IP65 (dust-tight and water-resistant)

Applications

The Mitsubishi HC-SFS1024B Servo Motor is versatile and can be seamlessly integrated into a variety of industrial applications, including:

  • Robotics: Enhances the precision and agility of robotic arms and automated guided vehicles (AGVs).
  • CNC Machinery: Ensures accurate and smooth operation of CNC machines for cutting, milling, and drilling tasks.
  • Packaging Systems: Improves the efficiency and precision of packaging lines, from filling and sealing to labeling and palletizing.
  • Material Handling: Optimizes the performance of conveyors, hoists, and automated storage and retrieval systems (AS/RS).
  • Printing and Textile Machines: Delivers consistent and reliable performance in high-speed printing and textile processing equipment.

Benefits

  • Improved Productivity: With its high torque and speed, the HC-SFS1024B significantly enhances the throughput and efficiency of your industrial processes.
  • Precision and Control: The advanced encoder technology ensures unparalleled precision and control, reducing errors and improving product quality.
  • Long-Term Reliability: Built to endure, this servo motor reduces downtime and maintenance costs, providing a dependable solution for continuous operation.
  • Energy Savings: Mitsubishi's energy-efficient design helps lower operational costs and supports sustainable manufacturing practices.

Integration and Compatibility

The HC-SFS1024B is designed for easy integration with Mitsubishi's extensive range of motion controllers and amplifiers, offering a seamless solution for your automation needs. Its compatibility with various communication protocols ensures straightforward installation and operation within your existing systems.

Conclusion

For industries seeking a high-performance, reliable, and efficient servo motor, the Mitsubishi HC-SFS1024B stands out as a premier choice. Its blend of advanced features, robust construction, and energy efficiency makes it an indispensable component in achieving superior automation performance.

Upgrade your industrial automation with the Mitsubishi HC-SFS1024B Servo Motor and experience the next level of precision, power, and reliability.


Tags: Mitsubishi HC-SFS1024B, Servo Motor, Industrial Automation, High Torque Servo, Precision Motor, CNC Machinery, Robotics, Energy Efficient Servo, Melservo J3 Series, Mitsubishi Electric.

Mitsubishi HC-SFS1024B Servo Motor

  SERVO MOTOR
Type HC-SFS
Rated Torque (Nm) 4,78
Maximum Torque (Nm) 14,4
Rated Speed (rpm) 2000
Maximum Speed (rpm) 3000
Inertia (kg*cm2) 15,7
Brake YES
Shaft Type STRAIGHT SHAFT
Protection Class IP65
Power Supply (V) 400
Current Type AC
Encoder Type 17-BIT
Encoder Resolution (p/rev) 131072
PRODUCT DIMENSIONS & WEIGHT
Width (mm) 130
Height (mm) 130
Depth (mm) 178
Weight (kg) 9
ORDER CODES
European Order Code 151559
Global Order Code 0HG292001
CLASSIFICATION DATA
Product hierarchy IAK30205
Class Description FA-Servo-Motion: Servo Motor
External Material Group Discontinued Material
AVAILABILITY
Logistic Class C
PACKAGING DIMENSIONS & WEIGHT
Gross Weight 9.4  KG
Volume 11.776  CDM
Length 32 CM
Width 16 CM
Height 23 CM
COMMODITY / IMPORT CODE
Commodity Code 85015220
Country of Origin JP
LIFE CYCLE
Discontinued (EOL) 07.11.2013
Last Time Buy (LTB) 31.08.2015
End of Service (EOS) 31.08.2022
Successor 261439  HG-SR1024B
Successor Information SYSTEM CHANGE REQUIRED
ENVIRONMENTAL

RoHS Compliance COMPLIANT
REACH Limit Exceeded NO
Dangerous Goods Regulations NO
