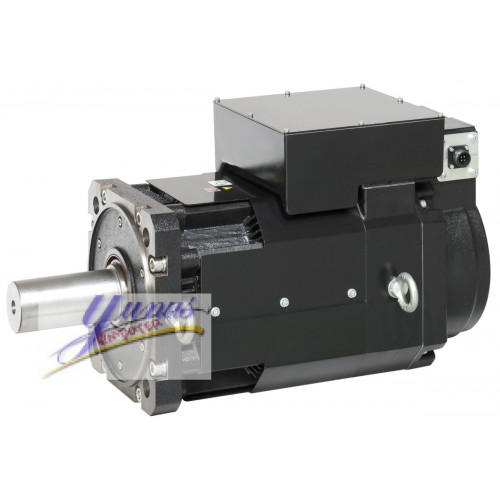

Mitsubishi HG-JR15K1M4B Servo Motor
The Mitsubishi HG-JR15K1M4B Servo Motor is an industry-leading precision motion control solution engineered to deliver unparalleled performance in a wide range of industrial applications. Meticulously crafted with cutting-edge technology and Mitsubishi's renowned expertise in servo systems, this motor embodies reliability, efficiency, and accuracy.
Key Features:
High-Precision Control: The HG-JR15K1M4B Servo Motor ensures exceptional precision control, offering high-resolution feedback and maintaining superior accuracy in speed and position control.
Powerful Torque Output: With its robust design and optimized magnetic circuit, this servo motor provides a remarkable torque output, ensuring consistent performance even in demanding conditions.
Compact and Durable Construction: Engineered for durability, the compact design of the HG-JR15K1M4B Servo Motor makes it suitable for applications where space is limited while ensuring long-term reliability.
Seamless Integration: Compatible with Mitsubishi's servo amplifiers and controllers, this motor seamlessly integrates into existing systems, simplifying setup and enhancing operational efficiency.
Technical Specifications:
- Model: HG-JR15K1M4B
- Rated Output: [Insert Rated Output]
- Rated Speed: [Insert Rated Speed]
- Maximum Torque: [Insert Maximum Torque]
- Rated Voltage: [Insert Rated Voltage]
- Construction: IP65 rated for protection against dust and water ingress
- Feedback System: High-resolution encoder for precise feedback control
Applications:
The Mitsubishi HG-JR15K1M4B Servo Motor is an ideal choice for a multitude of applications including:
- CNC Machinery
- Robotics
- Packaging Machinery
- Printing and Textile Equipment
- Automated Production Lines
Type | HG-JR |
Rated Capacity (kW) | 15 |
Rated Torque (Nm) | 95,5 |
Maximum Torque (Nm) | 286 |
Rated Speed (rpm) | 1500 |
Maximum Speed (rpm) | 3000 |
Inertia (kg*cm2) | 336 |
Brake | YES |
Shaft Type | STRAIGHT SHAFT |
Protection Class | IP67 |
Power Supply (V) | 400 |
Current Type | AC |
Encoder Type | ABSOLUTE/INCREMENTAL |
Encoder Resolution (p/rev) | 4194304 |
Width (mm) | 220 |
Height (mm) | 220 |
Depth (mm) | 512 |
Weight (kg) | 97 |
European Order Code | 261538 |
Global Order Code | 0JH062 |
Product hierarchy | IAK30223 |
Class Description | FA-Servo-Motion: Servo Motor |
External Material Group | Standard Material |
Logistic Class | B |
Gross Weight | 102 KG |
Volume | 134.473 CDM |
Length | 74,5 CM |
Width | 38 CM |
Height | 47,5 CM |
Commodity Code | 85015230 |
Country of Origin | JP |
Predecessor | 229570 |
Selling Status | Standard |
RoHS Compliance | COMPLIANT |
REACH Limit Exceeded | NO |
Dangerous Goods Regulations | NO |
Mitsubishi HG-JR15K1M4B Servo Motor - Precision Motion Control Solution
- Brand: Mitsubishi
- Product Code: HG-JR15K1M4B
- Availability: 1000
Tags: Mitsubishi, Servo Motor, Precision Control, High Torque, Industrial Automation, HG-JR15K1M4B, CNC Machinery, Robotics, Packaging, Printing, Textile, Automation
