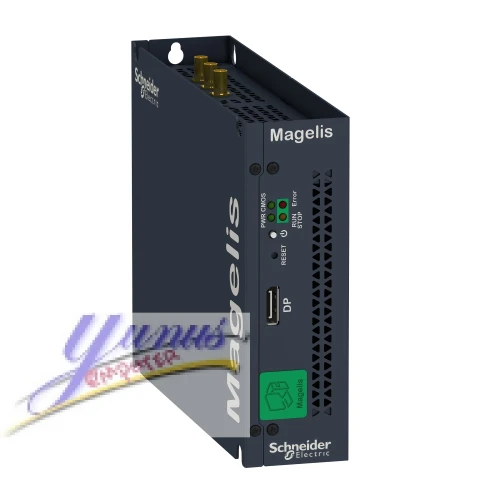

Schneider HMIBSCEA53D1L0A IIoT Edge Box Core eMMC DC Linux - Product Description
The Schneider HMIBSCEA53D1L0A IIoT Edge Box is a cutting-edge solution designed to meet the rigorous demands of modern industrial environments. Engineered for optimal performance, this IIoT Edge Box is equipped with a robust Core processor, providing the power and efficiency needed for data-intensive applications. Its integrated eMMC storage ensures reliable data retention, even in the most challenging conditions, while the DC power input offers compatibility with a wide range of industrial power systems.
Key Features:
- Core Processor: Delivers high-speed computing performance essential for real-time data processing and analysis in industrial Internet of Things (IIoT) applications.
- eMMC Storage: Provides durable and reliable storage, ensuring data integrity and quick access, critical for mission-critical operations.
- DC Power Input: Designed for compatibility with various industrial power systems, enhancing flexibility and ease of integration into existing setups.
- Linux Operating System: Pre-installed with a Linux OS, this device offers a secure and stable environment for running a wide array of industrial applications, with support for open-source software.
- Compact and Durable Design: Built to withstand the harsh conditions of industrial environments, including temperature extremes, vibration, and dust.
Applications:
Ideal for use in smart manufacturing, predictive maintenance, and real-time monitoring, the Schneider HMIBSCEA53D1L0A enables seamless connectivity between sensors, machinery, and cloud services. Its powerful processing capabilities and reliable storage make it an essential component in the automation of industrial processes, enhancing efficiency, reducing downtime, and driving operational excellence.
SEO Keywords:
Schneider IIoT Edge Box, industrial Internet of Things, Core eMMC, Linux OS industrial, DC power input, real-time data processing, smart manufacturing, industrial automation, predictive maintenance, Schneider Electric.
This highly detailed and professional product description emphasizes the Schneider HMIBSCEA53D1L0A IIoT Edge Box's key technical attributes, making it an attractive option for industries looking to enhance their IIoT infrastructure.
| range of product |
Magelis iPC
|
|
|---|---|---|
| product or component type |
IIoT Edge Box Core
|
|
| device short name |
IIoT Edge Box Core
|
|
| processor name |
ARM Cortex-A53 Quad core 1.2 GHz Qualcomm Snapdragon 410
|
|
| free slots |
1 SD card SD 3.0, max raw transfer rate 104 MBps . Supports
SD,SDHC,SDXC (Standard 32 mm x 24 mm)
|
|
| operating system |
Linux Yocto (Linux Yocto project Krogoth 2.1)
Linux Yocto (BitBake branch 1.30.0) Linux Yocto (Linux Kernel 4.4.38) |
|
| software package |
Node-RED and system nodes default IIoT Wiring
|
| range compatibility |
HMIYMIN4GEU1 Interface Mini PCIe 4G EU for iPC
HMIYMIN8AI1 Interface Mini PCIe 8x Analog Input 0-10V HMIYBIN2AIM21 Interface M.2 2x Analog Input 0-10V/4-20mA HMIYMIN4GUS1 Interface Mini PCIe 4G US for iPC |
|
|---|---|---|
| accessory / separate part destination |
Celullar 4G and analog Inputs
|
|
| mounting location |
Wall mounting
Flat mounting Book mounting |
|
| data storage equipment |
64 GB eMMC (soldered)
|
|
| memory description |
Internal 2 GB RAM LPDDR3 not expandable
|
|
| number of slots |
1 mini PCI Express full-size with optional interface plate
1 M.2 Not for storage |
|
| display resolution |
1920 x 1080 pixels at 60 Hz
|
|
| watchdog timer |
1...255 ms
|
|
| type of cooling |
Fanless
|
|
| electrical connection |
Connector SMA on top
Screw connector pin for 1 way ground on bottom |
|
| integrated connection type |
USB 2.0 port with 2 USB type A, transmission rate: 480 Mbit/s on
bottom
HDMI for For configuration only with 1 on bottom Wi-Fi for WCN3620 802.11 b/g/n 2.4 GHz with 1 Bluetooth for WCN3620 Bluetooth 4.1 with 1 Ethernet with 2 RJ45 SMSC LAN7500 (IEEE1588 not suported), transmission rate: 10/100/1000 Mbps on bottom COM1 serial link for battery backup with 1 male SUB-D 9 RS232/422/485 non-isolated 8x GPIO with 1 GPIO Pin 8 pins on bottom Software utility provided TPM connector Ver 2.0 for cyber security - hardware encryption TPM module HMIYMINATPM201 to be installed/default installed on mother board |
|
| Cyber secured boot |
Secure password boot
|
|
| [Us] rated supply voltage |
100...240 V AC power supply with additional adaptor HMIYPSOMAC1
24 V DC power supply |
|
| supply voltage limits |
12...24 V
|
|
| inrush current |
0.43 A
|
|
| power consumption in W |
16 W
|
|
| control type |
RESET button
|
|
| depth |
46 mm
|
|
| height |
150 mm
|
|
| width |
157 mm
|
|
| product weight |
1 kg
|
|
| impregnation material |
Conformal coated
|
|
| main type |
IIoT Edge Box Core
|
|
| number of slots available for expansion |
1 mini PCIe
1 M.2 (not for storage) |
| standards |
EN 61131-2
EN 55011 class A group 1 EN 61000-6-4 FCC Part 15 UL 60950 |
|
|---|---|---|
| product certifications |
CCC
EAC RCM UL 60950 (Information Technology Equipment) Radio Frequency certifications for WiFi/Bluetooth RED(Eu),FAC(Ru),FCC RF(USA),IC(Ca),Anatel(Br pending),SRRC(Cha),RCM(Au and NZ) CULus CE |
|
| quality labels |
CE
|
|
| directives |
2006/95/EC - low voltage directive
2004/108/EC - electromagnetic compatibility |
|
| IP degree of protection |
IP40 conforming to IEC 60529
|
|
| electromagnetic compatibility |
Conducted and radiated emissions class A EN 55022
Immunity to high frequency interference IEC 61000-4 Disturbing field emission class A EN 55011 |
|
| ambient air temperature for storage |
-20...60 °C conforming to IEC 60068-2-2
-20...60 °C conforming to IEC 60068-2-14 |
|
| relative humidity |
10...95 % non-condensing conforming to EN/IEC 60068-2-30
|
|
| ambient air temperature for operation |
0...50 °C flat mounting
0...50 °C (by default) conforming to EN/IEC 60068-2-2 0...45 °C on mini PCIe 0...45 °C flat mounting on mini PCIe |
|
| operating altitude |
2000 m conforming to EN/IEC 60664-1
|
|
| vibration resistance |
2 gn 5...500 Hz eMMC
|
