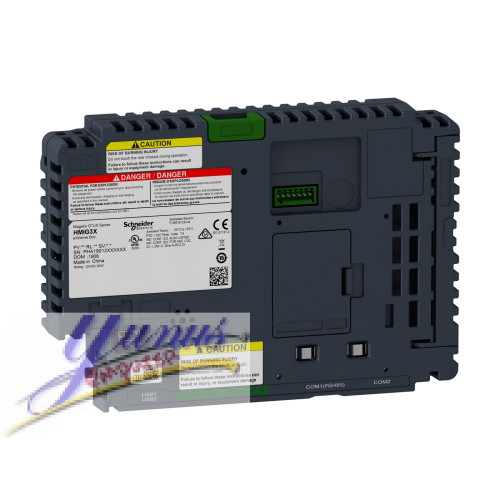

Schneider HMIG3X Magelis GTUX Series eXtreme Box: Rugged Outdoor Display Solution
Introducing the Schneider HMIG3X Magelis GTUX Series eXtreme Box, a top-tier solution designed to meet the rigorous demands of outdoor industrial environments. Engineered for superior performance and reliability, this rugged display unit is your ideal choice for harsh conditions where durability and resilience are paramount.
Key Features:
Rugged Construction: The HMIG3X Magelis GTUX Series is built with a robust, high-strength casing that withstands extreme temperatures, impacts, and vibrations. This rugged design ensures longevity and dependable performance even in the most challenging environments.
Outdoor Durability: With its advanced coating and sealing technologies, this unit is specifically designed for outdoor use. It provides exceptional resistance to weather elements such as rain, dust, and UV radiation, making it perfect for applications in open air environments or exposed industrial settings.
High-Resolution Display: The Magelis GTUX Series features a high-resolution TFT LCD screen that delivers clear, sharp visuals, enhancing user interaction and operational efficiency. Its bright and readable display ensures optimal visibility in varying light conditions.
Enhanced Protection: The HMIG3X boasts an IP66/IP67 rating, offering superior protection against water ingress and dust. This level of protection ensures the unit remains functional and reliable in wet or dusty environments.
Versatile Connectivity: Equipped with multiple communication ports and options, the HMIG3X supports seamless integration with a wide range of industrial systems and automation equipment. This versatility facilitates easy data exchange and system control.
User-Friendly Interface: The intuitive touch screen interface is designed for ease of use, allowing operators to interact with the system effortlessly. Its responsive touch technology ensures smooth navigation and efficient operation.
Temperature Resilience: Engineered to operate effectively across a broad temperature range, the GTUX Series maintains its performance in both high and low temperature conditions. This feature is crucial for maintaining operational stability in outdoor environments.
Applications:
The Schneider HMIG3X Magelis GTUX Series eXtreme Box is ideal for use in various industrial applications, including:
- Outdoor Control Panels
- Remote Monitoring Stations
- Manufacturing Automation
- Process Control
- Energy Sector Equipment
Why Choose Schneider HMIG3X Magelis GTUX Series?
Choosing the Schneider HMIG3X means investing in a product that combines rugged durability, high performance, and superior protection. It is designed to handle the most demanding outdoor conditions while providing clear and reliable visual communication.
Ensure the reliability of your outdoor industrial operations with the Schneider HMIG3X Magelis GTUX Series eXtreme Box. Contact us today to learn more about how this advanced display solution can enhance your industrial systems.
range of product |
Magelis GTUX
|
|
---|---|---|
product or component type |
Base unit
|
|
device short name |
EXtreme Box
|
|
processor name |
CPU RISC 600 MHz
|
|
operating system |
Magelis
|
|
software package |
Vijeo Designer run time
|
range compatibility |
Magelis GTUX
|
|
---|---|---|
data storage equipment |
1 GB SD card
|
|
port Ethernet |
10BASE-T/100BASE-TX/1000BASE-T
|
|
memory description |
Backup memory 512 kB NVRAM
Internal 256 MB RAM 2 x 13 mm board |
|
type of cooling |
Natural convection
|
|
integrated connection type |
USB 2.0 port mini B USB
Auxiliary port terminal block Expansion unit fieldbus card Ethernet TCP/IP with 2 RJ45 COM1 serial link RJ45 RS485, transmission rate: 110...115200 bit/s COM1 serial link RJ45 RS485, transmission rate: 187.5 kbit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 110...115200 bit/s COM2 serial link SUB-D 9 RS232C/RS422/RS485, transmission rate: 187.5 kbit/s USB 2.0 port with 2 USB type A |
|
communication port protocol |
Modbus serial
Modbus TCP/IP Uni-Telway |
|
[Us] rated supply voltage |
12 V DC power supply
|
|
power consumption in W |
20 W box
|
|
depth |
45 mm
|
|
height |
131 mm
|
|
width |
188 mm
|
|
product weight |
0.9 kg
|
|
number of slots available for expansion |
2 SD card
|
standards |
CSA C22.2 No 142
ANSI/ISA 12-12-01 CSA C22.2 No 213 class I division 2 UL 508 |
|
---|---|---|
product certifications |
KC
RCM CULus CE |
|
resistance to fast transients |
1 kV signal ports IEC 61000-4-4
2 kV power ports IEC 61000-4-4 |
|
resistance to electrostatic discharge |
6 kV contact discharge EN/IEC 61000-4-2 level 3
8 kV air discharge EN/IEC 61000-4-2 level 3 |
|
pollution degree |
2 conforming to EN 61131-2 Ed.3
|
|
electromagnetic compatibility |
Electrostatic discharge immunity test EN/IEC 61000-4-2 level 3
|
|
ambient air temperature for storage |
-30...70 °C
|
|
relative humidity |
10...90 % non-condensing
|
|
ambient air temperature for operation |
-30...70 °C
|
|
operating altitude |
2000 m
|
|
vibration resistance |
7 mm 5...9 Hz X, Y, Z directions for 10 cycles (approx. 100 min)
conforming to EN/IEC 61131-2
19.6 m/s² 9...150 Hz conforming to EN/IEC 61131-2 |
|
shock resistance |
392 m/s² conforming to EN/IEC 61131-2 X, Y, Z directions for 3
times
|
|
environmental characteristic |
Corrosive gas free
|
Schneider HMIG3X Magelis GTUX Serie eXtreme Box – Rugged Outdoor Display, Coated for Harsh Environments
- Brand: Schneider
- Product Code: HMIG3X
- Availability: 1000
Tags: Schneider HMIG3X, Magelis GTUX, eXtreme Box, Outdoor Display, Rugged Display, Coated Monitor, Industrial Touch Screen, High-Performance Display, Weather-Resistant Monitor, Harsh Environment Display
