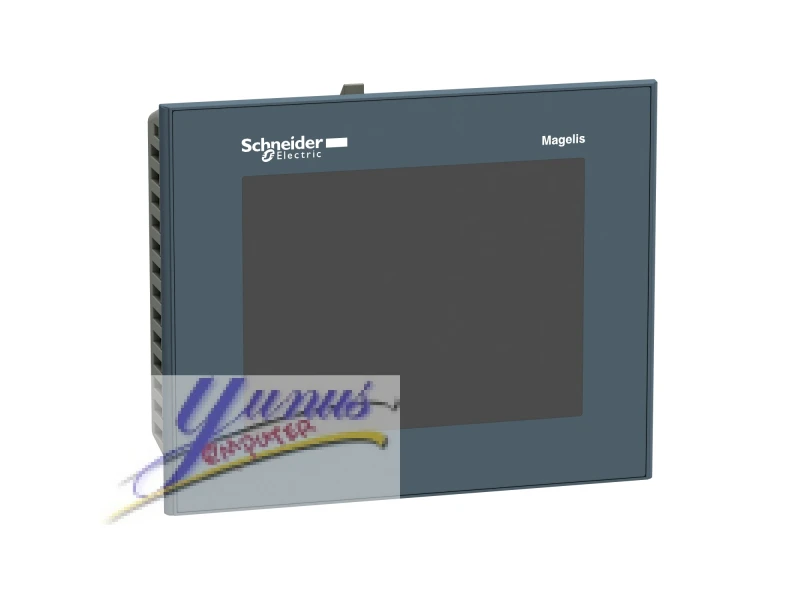

Schneider HMIGTO2300 Advanced Touchscreen Panel
Overview
Elevate your control systems with the Schneider HMIGTO2300 Advanced Touchscreen Panel, engineered for exceptional performance and versatility in demanding industrial environments. With its advanced features and compact design, the HMIGTO2300 offers a robust solution for process monitoring, control, and visualization.
Key Features
High-Resolution Display: The HMIGTO2300 is equipped with a 5.7" TFT display offering a QVGA resolution of 320 x 240 pixels. This high-quality screen ensures clear and vibrant visuals, enhancing user interaction and control precision.
Ample Memory: Boasting 64 MB of memory, this panel supports efficient data processing and quick response times, allowing for seamless operation and real-time data handling.
Intuitive Touchscreen Interface: The advanced touchscreen technology provides a responsive and user-friendly interface, enabling operators to interact with the system effortlessly. The panel’s durable surface withstands frequent use in demanding industrial settings.
Compact and Durable Design: Designed with space efficiency in mind, the HMIGTO2300's compact form factor is ideal for installations where space is at a premium. Its rugged construction ensures reliable performance even in harsh environments.
Versatile Connectivity: The panel supports various communication protocols, facilitating integration with a wide range of devices and systems. This versatility makes it a valuable addition to diverse applications across different industries.
Applications
The Schneider HMIGTO2300 is ideal for applications requiring reliable control and monitoring solutions in industrial automation, manufacturing processes, and process control systems. Its high-resolution display and responsive touchscreen make it suitable for both complex and straightforward tasks.
Why Choose the Schneider HMIGTO2300?
- Enhanced Visibility: The QVGA display provides excellent visibility and clarity, crucial for real-time monitoring and operational accuracy.
- Robust Performance: With 64 MB of memory and a durable design, the HMIGTO2300 delivers consistent performance even in demanding environments.
- User-Friendly Operation: The intuitive touchscreen interface simplifies interactions and improves operational efficiency.
Upgrade to the Schneider HMIGTO2300 Advanced Touchscreen Panel for a high-performance, reliable, and user-friendly solution that meets the demands of modern industrial applications.
| range of product |
Magelis GTO
|
|
|---|---|---|
| product or component type |
Advanced touchscreen panel
|
|
| display colour |
65536 colours
|
|
| display size |
5.7 inch
|
|
| supply |
External source
|
|
| operating system |
Magelis
|
|
| battery type |
Lithium battery for internal RAM, autonomy: 100 days, charging
time = 5 d, battery life = 10 yr
|
| terminal type |
Touchscreen display
|
|
|---|---|---|
| display type |
Backlit colour TFT LCD
|
|
| display resolution |
320 x 240 pixels QVGA
|
|
| touch sensitive zone |
1024 x 1024
|
|
| touch panel |
Resistive film, 1000000 cycles
|
|
| backlight lifespan |
50000 hours (white) at 25 °C
|
|
| brightness |
16 levels - control by touch panel
16 levels - control by software |
|
| character font |
ASCII (European characters)
Chinese (simplified Chinese) Japanese (ANK, Kanji) Korean Taiwanese (traditional Chinese) |
|
| [Us] rated supply voltage |
24 V DC
|
|
| supply voltage limits |
19.2...28.8 V
|
|
| inrush current |
<= 30 A
|
|
| power consumption in W |
<= 10.5 W
<= 6.5 W (when power is not supplied to external devices) <= 4.5 W (when backlight is OFF) <= 5 W (when backlight is dimmed) |
|
| local signalling |
Status LED (orange) flashing software starting up
Status LED (green) steady offline Status LED (green) steady operating Status LED (red) steady power supply (ON) Status LED (clear) faded power supply (OFF) COM2 LED (yellow) steady data is being transmitted COM2 LED (yellow) faded no data transmission SD card LED (green) steady card is inserted SD card LED (green) faded card is not inserted or is not being accessed |
|
| software designation |
Vijeo Designer configuration software >= V6.1
|
|
| memory description |
64 MB flash (EPROM)
|
|
| data backed up |
128 kB internal RAM (SRAM)
|
|
| downloadable protocols |
Modbus Plus Schneider Electric Modicon
FIPWAY Schneider Electric Modicon Modbus Schneider Electric Modicon Third party protocols Mitsubishi Melsec Third party protocols Omron Sysmac Third party protocols Rockwell Automation Allen-Bradley Third party protocols Siemens Simatic Uni-TE Schneider Electric Modicon |
|
| integrated connection type |
COM1 serial link SUB-D 9, interface: RS232C, transmission rate:
2400...115200 bps
COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens MPI USB 2.0 type A USB 2.0 type mini B |
|
| product mounting |
Flush mounting
|
|
| fixing mode |
By 4 screw clamps
|
|
| front material |
PPT
|
|
| enclosure material |
PPT
|
|
| type of cooling |
Natural convection
|
|
| width |
169.5 mm
|
|
| height |
137 mm
|
|
| depth |
59.5 mm
|
|
| product weight |
0.8 kg
|
| standards |
EN 61131-2
IEC 61000-6-2 UL 508 |
|
|---|---|---|
| product certifications |
CE
C-Tick cULus KCC |
|
| ambient air temperature for operation |
0...50 °C
|
|
| ambient air temperature for storage |
-20...60 °C
|
|
| relative humidity |
10...90 % without condensation
|
|
| operating altitude |
< 2000 m
|
|
| IP degree of protection |
IP20 rear panel conforming to IEC 60529
IP65 front panel conforming to IEC 60529 |
|
| NEMA degree of protection |
NEMA 4X front panel (indoor use)
|
|
| shock resistance |
147 m/s² 3 chocks in each direction X, Y and Z conforming to
EN/IEC 61131-2
|
|
| vibration resistance |
3.5 mm (f = 5...9 Hz) conforming to EN/IEC 61131-2 X, Y, Z
directions for 10 cycles (approx. 100 min)
1 gn (f = 9...150 Hz) conforming to EN/IEC 61131-2 X, Y, Z directions for 10 cycles (approx. 100 min) |
|
| resistance to electrostatic discharge |
6 kV contact discharge conforming to IEC 61000-4-2 level 3
|
