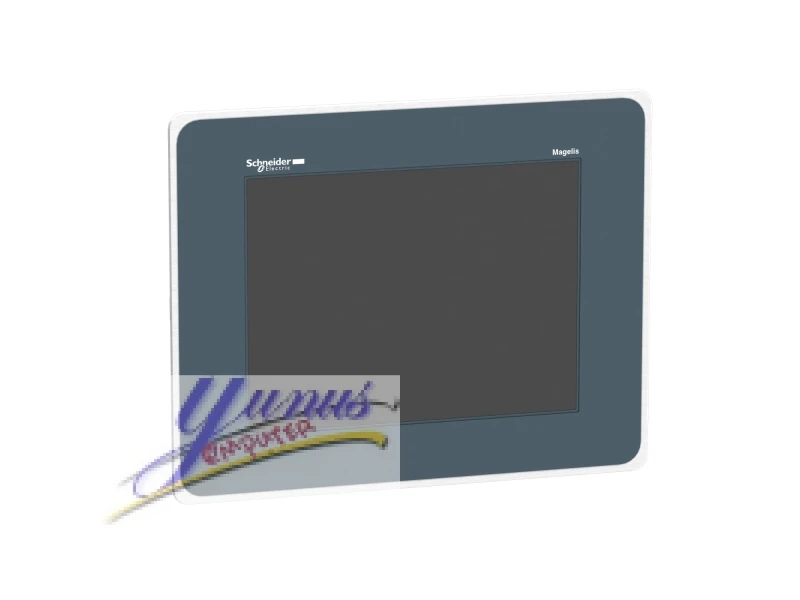

Schneider HMIGTO6315 Advanced Touchscreen Panel
Overview: The Schneider HMIGTO6315 is an advanced touchscreen panel designed to deliver exceptional performance and reliability in industrial automation environments. Featuring a 12.1-inch TFT display with SVGA resolution (800 x 600 pixels), this panel offers crisp, clear visuals and a highly responsive user interface, making it an ideal choice for sophisticated control and monitoring applications.
Key Features:
High-Resolution Display: The HMIGTO6315 boasts a 12.1-inch TFT display with SVGA resolution (800 x 600 pixels), providing vivid and detailed visuals that enhance user interaction and system monitoring.
Robust Memory Capacity: Equipped with 96 MB of onboard memory, this panel ensures smooth and efficient operation of complex applications and graphics-intensive processes.
Durable Construction: Built with high-quality materials, the HMIGTO6315 features a stainless steel frame that offers superior durability and resistance to harsh industrial environments.
Advanced Touchscreen Technology: The responsive touchscreen interface allows for precise control and navigation, improving operational efficiency and user experience.
Versatile Connectivity: Designed to integrate seamlessly with a wide range of industrial equipment and systems, the HMIGTO6315 supports multiple communication protocols and interfaces, facilitating easy and flexible connectivity.
Enhanced User Interface: The panel supports customizable user interfaces, allowing operators to tailor the display according to specific application requirements and preferences.
Applications: The Schneider HMIGTO6315 is well-suited for a variety of industrial applications, including manufacturing control systems, process monitoring, and data visualization. Its high-resolution display and robust performance make it an excellent choice for environments that demand reliable and precise control.
Specifications:
- Display: 12.1" TFT
- Resolution: SVGA (800 x 600 pixels)
- Memory: 96 MB
- Frame Material: Stainless steel
Why Choose Schneider HMIGTO6315? The Schneider HMIGTO6315 stands out with its exceptional display quality, durable construction, and advanced touchscreen capabilities. It combines reliability with versatility, making it a valuable asset for enhancing operational control and efficiency in industrial settings.
| range of product |
Magelis GTO
|
|
|---|---|---|
| product or component type |
Advanced touchscreen panel
|
|
| display colour |
65536 colours
|
|
| display size |
12.1 inch
|
|
| supply |
External source
|
|
| operating system |
Magelis
|
|
| battery type |
Lithium battery for internal RAM, autonomy: 100 days, charging
time = 5 d, battery life = 10 yr
|
|
| provided equipment |
1 protective cover
|
| terminal type |
Touchscreen display
|
|
|---|---|---|
| display type |
Backlit colour TFT LCD
|
|
| display resolution |
800 x 600 pixels SVGA
|
|
| touch sensitive zone |
1024 x 1024
|
|
| touch panel |
Resistive film, 1000000 cycles
|
|
| backlight lifespan |
50000 hours (white) at 25 °C
|
|
| brightness |
16 levels - control by touch panel
16 levels - control by software |
|
| character font |
Taiwanese (traditional Chinese)
ASCII (European characters) Japanese (ANK, Kanji) Korean Chinese (simplified Chinese) |
|
| [Us] rated supply voltage |
24 V DC
|
|
| supply voltage limits |
19.2...28.8 V
|
|
| inrush current |
<= 30 A
|
|
| power consumption in W |
<= 17 W
<= 12 W (when power is not supplied to external devices) <= 7 W (when backlight is OFF) <= 8 W (when backlight is dimmed) |
|
| local signalling |
Status LED (orange) flashing software starting up
Status LED (green) steady offline Status LED (green) steady operating Status LED (red) steady power supply (ON) Status LED (clear) faded power supply (OFF) COM2 LED (yellow) steady data is being transmitted COM2 LED (yellow) faded no data transmission SD card LED (green) steady card is inserted SD card LED (green) faded card is not inserted or is not being accessed |
|
| software designation |
Vijeo Designer configuration software >= V6.1
|
|
| memory description |
96 MB flash (EPROM)
|
|
| data backed up |
512 kB internal RAM (SRAM)
|
|
| data storage equipment |
SD card <= 32 GB
SDHC card <= 32 GB |
|
| downloadable protocols |
Modbus Plus Schneider Electric Modicon
FIPWAY Schneider Electric Modicon Modbus TCP Schneider Electric Modicon Modbus Schneider Electric Modicon Third party protocols Mitsubishi Melsec Third party protocols Omron Sysmac Third party protocols Rockwell Automation Allen-Bradley Third party protocols Siemens Simatic Uni-TE Schneider Electric Modicon |
|
| integrated connection type |
COM1 serial link SUB-D 9, interface: RS232C, transmission rate:
2400...115200 bps
COM2 serial link RJ45, interface: RS485, transmission rate: 2400...115200 bps COM2 serial link RJ45, interface: RS485, transmission rate: 187.5 kbps compatible with Siemens MPI Ethernet RJ45, interface: 10BASE-T/100BASE-TX Ethernet RJ45, interface: IEEE 802.3 USB 2.0 type A USB 2.0 type mini B |
|
| product mounting |
Flush mounting
|
|
| fixing mode |
By 8 nuts
By 4 L brackets |
|
| front material |
Stainless steel 304
|
|
| enclosure material |
PPT
|
|
| type of cooling |
Natural convection
|
|
| width |
359 mm
|
|
| height |
285 mm
|
|
| depth |
56 mm
|
|
| product weight |
3 kg
|
| standards |
EN 61131-2
IEC 61000-6-2 UL 508 |
|
|---|---|---|
| product certifications |
KCC
CE cULus C-Tick |
|
| ambient air temperature for operation |
0...55 °C
|
|
| ambient air temperature for storage |
-20...60 °C
|
|
| relative humidity |
10...90 % without condensation
|
|
| operating altitude |
< 2000 m
|
|
| IP degree of protection |
IP20 rear panel conforming to IEC 60529
IP66K front panel conforming to IEC 60529 IP66K front panel conforming to DIN 40050-9 |
|
| NEMA degree of protection |
NEMA 4X front panel (indoor use)
|
|
| shock resistance |
147 m/s² 3 chocks in each direction X, Y and Z conforming to
EN/IEC 61131-2
|
|
| vibration resistance |
3.5 mm (f = 5...9 Hz) conforming to EN/IEC 61131-2 X, Y, Z
directions for 10 cycles (approx. 100 min)
1 gn (f = 9...150 Hz) conforming to EN/IEC 61131-2 X, Y, Z directions for 10 cycles (approx. 100 min) |
|
| resistance to electrostatic discharge |
6 kV contact discharge conforming to IEC 61000-4-2 level 3
|
