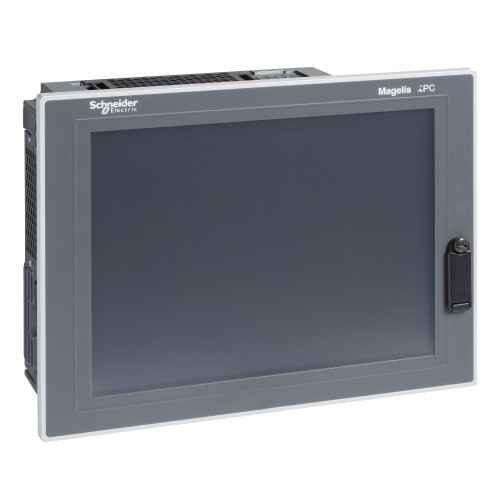

Schneider HMIPUC6D0E01 Panel PC Universal - Technical Product Description
The Schneider HMIPUC6D0E01 Panel PC Universal is an advanced industrial-grade computing solution designed for seamless integration in a wide range of industrial applications. This Panel PC is engineered to deliver superior performance, reliability, and flexibility, making it an ideal choice for demanding environments.
Key Features:
Robust Performance:
- Powered by a high-performance processor, the HMIPUC6D0E01 ensures fast and efficient data processing, enabling real-time control and monitoring in industrial settings.
- Equipped with ample memory, this Panel PC can handle complex tasks and applications without compromising on speed or efficiency.
Versatile Connectivity:
- The Panel PC offers a comprehensive range of I/O ports, including USB, Ethernet, and serial interfaces, ensuring compatibility with a wide array of industrial devices and systems.
- Integrated with advanced communication protocols, it supports seamless data exchange and system integration, enhancing overall operational efficiency.
Industrial-Grade Durability:
- Designed to withstand harsh industrial environments, the HMIPUC6D0E01 features a rugged construction with high resistance to dust, moisture, and vibrations.
- Its robust design is complemented by an IP65-rated front panel, ensuring protection against ingress of dust and water, making it suitable for use in demanding conditions.
High-Resolution Display:
- The Panel PC boasts a high-resolution touchscreen display, providing crisp and clear visuals for easy monitoring and control.
- The responsive touchscreen interface allows for intuitive operation, reducing the complexity of interacting with industrial systems.
Flexible Mounting Options:
- The Schneider HMIPUC6D0E01 offers versatile mounting options, including panel mounting, making it adaptable to various installation scenarios.
- Its compact and slim design ensures that it fits seamlessly into tight spaces without compromising on performance or accessibility.
Advanced Software Compatibility:
- This Panel PC is compatible with a wide range of industrial software solutions, providing the flexibility to integrate with existing systems and workflows.
- Its open architecture allows for easy customization and expansion, catering to the unique needs of different industrial applications.
Energy Efficient:
- The HMIPUC6D0E01 is designed with energy efficiency in mind, minimizing power consumption without sacrificing performance.
- Its low-power operation helps reduce overall energy costs, contributing to more sustainable and cost-effective operations.
Applications:
The Schneider HMIPUC6D0E01 Panel PC Universal is ideally suited for a variety of industrial applications, including automation, process control, and monitoring. It is the perfect solution for industries requiring reliable, high-performance computing in challenging environments.
SEO Keywords:
- Schneider HMIPUC6D0E01 Panel PC Universal
- Industrial Panel PC
- Rugged industrial computing
- High-performance Panel PC
- Industrial automation solutions
- Touchscreen industrial PC
- Durable Panel PC for harsh environments
- Energy-efficient industrial PC
- Industrial-grade Panel PC
This product description is tailored to meet the needs of professionals seeking a reliable and versatile Panel PC for industrial applications, while also being optimized for search engine visibility to attract more potential customers.
range of product |
Magelis iPC
|
|
---|---|---|
product or component type |
PC panel
|
|
processor name |
Intel icore 3rd generation 827E cache 3 MB
|
|
chipset type |
Intel BD82HM76
|
|
display size |
12 inch
|
|
display colour |
16 million colours
|
|
luminance |
375 cd/m²
|
|
video controller type |
Intel HD Graphics 3000
|
|
operating system |
Windows Embedded Standard WES2009 English
Windows Embedded Standard WES2009 French Windows Embedded Standard WES2009 German Windows Embedded Standard WES2009 Italian Windows Embedded Standard WES2009 Spanish Windows Embedded Standard WES2009 Swedish Windows Embedded Standard WES2009 Chinese Windows Embedded Standard WES2009 Portuguese Windows Embedded Standard WES2009 Russian |
|
software package |
Vijeo Designer run time demo
.NET Framework 3.5 Internet Explorer Viewer Word/Excel/Power Point Vijeo Citect web client Acrobat Reader |
|
bezel material |
Aluminium alloy
|
terminal type |
Touchscreen display
|
|
---|---|---|
data storage equipment |
>= 4 GB CFast card SLC
|
|
display type |
Active matrix colour TFT LCD with LED backlight
|
|
display resolution |
1024 x 768 pixels XGA
|
|
backlight lifespan |
50000 hours at 25 °C
|
|
view angle horizontal x vertical |
80 x 80°
|
|
touch panel |
Analogue resistive
|
|
memory type |
2 GB, expandable to 16 GB RAM DDR3
|
|
type of cooling |
Fanless
|
|
integrated connection type |
DVI video port bottom
Ethernet port with 2 RJ45 COM1 serial link male SUB-D 9 RS232C, transmission rate: 115 kbit/s bottom COM2 serial link male SUB-D 9 RS232C, transmission rate: 115 kbit/s bottom USB 2.0 type A, transmission rate: 480 Mbit/s front panel USB 3.0 type A with 4, transmission rate: 5 Gbit/s bottom Audio output mini-jack |
|
port Ethernet |
10BASE-T/100BASE-T/1000BASE-T
|
|
[Us] rated supply voltage |
24 V DC +/- 25 % power supply
|
|
inrush current |
7 A
|
|
power consumption in W |
130 W
|
|
material |
Die cast aluminium
|
|
display material |
Polyethylene sheet
|
|
fixing mode |
By fixing kit with enclosure door (fasteners included)
|
|
type of installation |
Indoor
|
|
control type |
ON/OFF push-button (equipment ON and OFF)
Push-button (reset) |
|
local signalling |
Buzzer
LED for link status LED for RUN Multi-colour LED for power Orange LED for accessing CF system card (DISK) |
|
width |
313 mm
|
|
height |
239 mm
|
|
depth |
60 mm
|
|
cut-out dimensions |
301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) x 1.6...9 mm
|
|
product weight |
4 kg
|
|
main type |
Universal
|
IP degree of protection |
IP65 front panel conforming to EN/IEC 60529
|
|
---|---|---|
NEMA degree of protection |
NEMA 4X front panel
|
|
product certifications |
CE
C-Tick GOST CULus 508 CULus CSA 22-2 No 142 CULus HazLoc Class I Division 2 UL 1604 CULus HazLoc Class I Division 2 ANSI/ISA 12-12-01 CULus HazLoc Class I Division 2 CSA 22-2 No 213 |
|
pollution degree |
2 EN/IEC 61131-2
|
|
electromagnetic compatibility |
Immunity to electromagnetic emissions class A EN 55022
Immunity to electromagnetic emissions class A EN 55011 Immunity to high frequency interference EN/IEC 61131-2 Immunity to high frequency interference EN/IEC 61000-4-x |
|
ambient air temperature for operation |
0...50 °C vertical installation conforming to UL 508
0...45 °C vertical installation when using Gigabit Ethernet with HDD storage device conforming to UL 508 0...50 °C vertical installation conforming to IEC 61132-2 0...45 °C vertical installation when using Gigabit Ethernet with HDD storage device conforming to IEC 61132-2 |
|
ambient air temperature for storage |
-20...60 °C conforming to IEC 60068-2-14 test Na
-20...60 °C conforming to IEC 60068-2-2 test Bb |
|
relative humidity |
10...85 % non-condensing conforming to EN/IEC 60068-2-78
10...85 % non-condensing conforming to EN/IEC 60068-2-30 |
|
operating altitude |
2000 m conforming to EN/IEC 61131-2
|
|
vibration resistance |
1.75 mm 2...9 Hz continuous conforming to EN/IEC 60068-2-6 Fc
3.5 mm 2...9 Hz intermittently conforming to EN/IEC 60068-2-6 Fc 0.5 gn 9...200 Hz continuous conforming to EN/IEC 60068-2-6 Fc 1 gn 9...200 Hz intermittently conforming to EN/IEC 60068-2-6 Fc 1 mm 3...13.2 Hz continuous conforming to EN/IEC 60068-2-6 Fc 0.7 gn 13.2...100 Hz continuous conforming to EN/IEC 60068-2-6 Fc |
|
shock resistance |
15 gn 11 ms conforming to IEC 60068-2-27, Ea tests
|
Schneider HMIPUC6D0E01 Panel PC Universal | Industrial-Grade Touchscreen PC
- Brand: Schneider
- Product Code: HMIPUC6D0E01
- Availability: 1000
