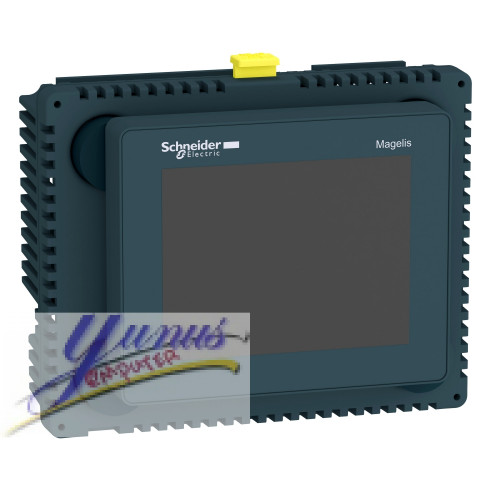

Schneider HMISCU6A5 3.5” Color Touch Controller Panel – Digital I/O Integration
Elevate your automation and control systems with the Schneider HMISCU6A5, a high-performance 3.5-inch color touch controller panel designed for seamless integration in industrial environments. This advanced panel combines robust functionality with intuitive operation, offering an ideal solution for precise control and monitoring tasks.
Key Features:
Compact 3.5-Inch Color Touchscreen: The HMISCU6A5 features a compact yet vibrant 3.5-inch color TFT LCD display, providing clear and sharp visuals. Its touchscreen interface ensures intuitive and user-friendly operation, facilitating easy navigation and control of your processes.
Digital Inputs and Outputs: Equipped with 16 digital inputs and 10 digital outputs, the HMISCU6A5 offers versatile connectivity options for various sensors, actuators, and other field devices. This extensive I/O capability allows for comprehensive control and monitoring of your automation system.
Enhanced Durability: Designed to withstand demanding industrial environments, the HMISCU6A5 features rugged construction that ensures reliable performance even in harsh conditions. Its robust build quality ensures long-lasting operation and minimal maintenance.
User-Friendly Interface: The color touchscreen interface provides an intuitive and interactive user experience. With customizable screens and easy-to-use navigation, operators can quickly access critical information and control system parameters with ease.
Versatile Applications: Ideal for a wide range of applications, including manufacturing automation, process control, and machine monitoring, the HMISCU6A5 offers flexibility and adaptability to meet diverse industry requirements.
Seamless Integration: The Schneider HMISCU6A5 is designed for easy integration with existing control systems, making it a versatile choice for enhancing your automation setup. Its compatibility with various communication protocols ensures smooth data exchange and system interoperability.
Technical Specifications:
- Display: 3.5” Color TFT LCD
- Inputs: 16 Digital Inputs
- Outputs: 10 Digital Outputs
- Touchscreen Interface: Yes
- Operating Temperature: [Insert operating temperature range]
- Protection Rating: [Insert protection rating, if applicable]
- Power Supply: [Insert power supply specifications]
- Communication Ports: [Insert communication ports, if applicable]
Applications:
The Schneider HMISCU6A5 is perfect for applications requiring compact yet powerful control solutions. Common use cases include:
- Manufacturing Automation: Streamline control and monitoring of production processes.
- Process Control: Manage and oversee complex process systems with ease.
- Machine Monitoring: Enhance operational efficiency and reliability with precise control.
Why Choose Schneider HMISCU6A5?
The Schneider HMISCU6A5 combines cutting-edge technology with user-centric design, offering a reliable and efficient solution for your control panel needs. Its robust features, durability, and ease of integration make it a valuable asset for enhancing your automation systems.
For more information or to request a quote, please contact us.
| range of product |
Magelis SCU
|
|
|---|---|---|
| product or component type |
Small touch HMI controller
|
|
| display size |
3.5 inch
|
|
| display type |
With backlit LED colour TFT LCD
|
|
| touch panel |
Analogue
|
|
| device presentation |
Complete product
|
| display resolution |
320 x 240 pixels QVGA
|
|
|---|---|---|
| backlight lifespan |
50000 hours with 65000 colours
|
|
| brightness |
16 levels via touch panel
|
|
| view angle horiz x vert |
60° left
60° right 40° top 60° bottom |
|
| character font |
ASCII
Chinese (simplified Chinese) Japanese (ANK, Kanji) Korean Taiwanese (traditional Chinese) |
|
| supply |
External source
|
|
| [Us] rated supply voltage |
24 V at 20.4...28.8 V DC
|
|
| immunity to microbreaks |
<= 10 ms
|
|
| inrush current |
<= 30 A
|
|
| power consumption in W |
15 W
|
|
| local signalling |
No indicator
|
|
| number of pages |
Limited by internal memory capacity
|
|
| software designation |
SoMachine
|
|
| operating system |
Magelis
|
|
| processor name |
CPU RISC
|
|
| processor frequency |
333 MHz
|
|
| memory description |
128 MB flash memory, type: NAND
128 kB internal data storage memory, type: FRAM 128 MB application run memory, type: DRAM |
|
| integrated connection type |
1 RJ45 connector serial link with RS232/RS485 interface at <=
115.2 kbits/s
1 RJ45 connector Ethernet TCP/IP 1 USB 2.0 type mini B 1 USB 2.0 type A SUB-D 9 connector CANopen master bus |
|
| realtime clock |
Built-in
|
|
| downloadable protocols |
Modbus
Modbus TCP/IP CANopen |
|
| fixing mode |
By 1 nut - diameter: Ø 22 mm, mounting on: 1...6 mm thick panel
|
|
| enclosure material |
PC/PBT
|
|
| shock resistance |
147 m/s² (duration=11 ms) conforming to IEC 60068-2-27 on DIN
rail
294 m/s² (duration=6 ms) conforming to IEC 60068-2-27 on panel mounting |
|
| vibration resistance |
+/- 3.5 mm (f=5...9 Hz) conforming to IEC 60068-2-6
1 gn (f=9...150 Hz) conforming to IEC 60068-2-6 |
|
| electromagnetic compatibility |
Electrostatic discharge immunity test - test level: 8 kV, air
discharge conforming to IEC 61000-4-2
Electrostatic discharge immunity test - test level: 6 kV, contact discharge conforming to IEC 61000-4-2 Susceptibility to electromagnetic fields - test level: 10 V/m, 80 MHz...3 GHz conforming to IEC 61000-4-3 Electrical fast transient/burst immunity test - test level: 2 kV, power lines conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV, between analogue I/O and operating voltage conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 2 kV, relay wires conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV, Ethernet line conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV, COM line conforming to IEC 61000-4-4 Electrical fast transient/burst immunity test - test level: 1 kV, CAN line conforming to IEC 61000-4-4 Surge immunity test - test level: 2 kV, power supply (common mode) conforming to IEC 61000-4-5 Surge immunity test - test level: 1 kV, power supply (differential mode) conforming to IEC 61000-4-5 Surge immunity test - test level: 1 kV common mode, digital I/O conforming to IEC 61000-4-5 Surge immunity test - test level: 0.5 kV differential mode, digital I/O conforming to IEC 61000-4-5 Conducted RF disturbances - test level: 10 V, 0.15...80 MHz conforming to IEC 61000-4-6 Conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011 Radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011 |
|
| discrete input number |
2 for fast input (normal mode) conforming to IEC 61131-2 Type 1
14 for digital input conforming to IEC 61131-2 Type 1 |
|
| discrete input voltage |
24 V DC discrete input logic:sink or source (positive/negative)
|
|
| number of common point |
1 for fast input (HSC mode)
2 for digital input |
|
| discrete input current |
7.83 mA for fast input
5 mA for digital |
|
| input impedance |
4.7 kOhm
2.81 kOhm |
|
| sensor power supply |
15...28.8 V DC, voltage (state 1): >= 15 V, current (state 1):
>= 5 mA, voltage (state 0): <= 5 V, current (state 0): <= 1.5 mA
15...28.8 V DC, voltage (state 1): >= 15 V, current (state 1): >= 2.5 mA, voltage (state 0): <= 5 V, current (state 0): <= 1 mA |
|
| configurable filtering time |
0 ms no filter (none)
0.004...0.04 ms bounce filter (latch/event and cumulative filter by step Nx0.5ms (64>=N>=2)) 3...12 ms integrator (none/run/stop) |
|
| input frequency |
100 kHz for fast input (encoder mode) - control type A/B
100 kHz for fast input - control type single phase 100 kHz for fast input - control type pulse/direction |
|
| cable distance between devices |
Shielded cable: 10 m for fast input
Shielded cable: 100 m for digital input Unshielded cable: 50 m for digital input |
|
| connection pitch |
3.5 mm
|
|
| overvoltage protection |
With
|
|
| isolation between channels and internal logic |
500 V DC
|
|
| isolation between channels |
None
|
|
| discrete output number |
2 fast output (normal mode), output logic: source
8 digital output, output logic: source |
|
| discrete output voltage |
24 V DC (voltage limit: 19.2...28.8 V) with transistor discrete
output(s)
24 V DC (voltage limit: 5...30 V) with relay discrete output(s) 220 V AC (voltage limit: 100...250 V) with relay discrete output(s) |
|
| input/output number |
2 for fast input, terminal(s): FI0...FI1
14 for digital input, terminal(s): DI0...DI13 2 for fast output, terminal(s): FQ0...FQ1 8 for digital output, terminal(s): DQ0...DQ7 |
|
| discrete output current |
300 mA, response time 2 ms for fast output (normal mode)
50 mA, response time 2 ms for fast output (PWM or PTO mode) 2 A (current per output common:4 A), response time 5 ms with opening contact for digital output 2 A (current per output common:4 A), response time 2 ms with closing contact for digital output |
|
| insulation resistance |
> 10 MOhm between the I/O and internal logic
> 10 MOhm between power supply and earth |
|
| output frequency |
<= 100 kHz for fast output (PTO mode)
<= 1 kHz for fast output (PWM mode) |
|
| absolute accuracy error |
+/- 0.1 % of full scale of cyclic ratio 1...99% for fast output
(PWM or PTO mode)
1 % of full scale of cyclic ratio 1...99% for fast output (PWM or PTO mode) +/- 5 % of full scale of cyclic ratio 10...90% for fast output (PWM or PTO mode) +/- 10 % of full scale of cyclic ratio 20...80% for fast output (PWM or PTO mode) +/- 15 % of full scale of cyclic ratio 30...70% for fast output (PWM or PTO mode) |
|
| height |
74.95 mm
|
|
| width |
128 mm
|
|
| depth |
102 mm
|
|
| product weight |
0.512 kg
|
| standards |
EN 61131-2
FCC Class A IEC 61000-6-2 RoHS compliant UL 508 ANSI/ISA 12-12-01 WEEE directive 2002/96/EC CSA C22.2 No 213 Class I Division 2 RoHS China SJ/T 11363-2006 |
|
|---|---|---|
| product certifications |
C-Tick
CULus 508 GOST CUL 1604 Class 1 Division 2 KCC CULus CSA 22-2 No 142 |
|
| marking |
CE
|
|
| ambient air temperature for operation |
0...50 °C
|
|
| ambient air temperature for storage |
-20...60 °C
|
|
| relative humidity |
5...85 % without condensation
|
|
| operating altitude |
<= 2000 m
|
|
| storage altitude |
0...10000 m
|
|
| maximum pressure |
800...1114 hPa
|
|
| IP degree of protection |
IP65 for front panel conforming to IEC 60529
IP20 for rear panel conforming to IEC 60529 |
|
| NEMA degree of protection |
NEMA 4X for front panel
|
|
| pollution degree |
2 conforming to IEC 60664
|
|
| environmental characteristic |
Corrosive gas free
|
Schneider HMISCU6A5 3.5" Color Touch Controller Panel - 16 Digital Inputs / 10 Outputs
- Brand: Schneider
- Product Code: HMISCU6A5
- Availability: 1000
