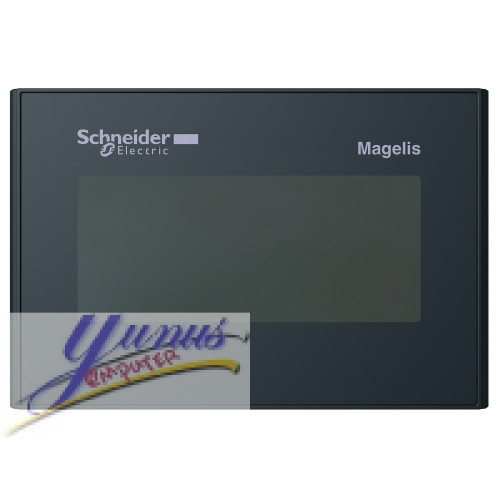

Schneider HMISTO511 Touch Panel Screen - 3.4" Monochrome G/O/R
Product Overview: The Schneider HMISTO511 Touch Panel Screen is a high-performance, compact display solution designed for demanding industrial applications. Featuring a 3.4-inch monochrome screen with Green/Orange/Red (G/O/R) indicators, this touch panel offers exceptional clarity, reliability, and ease of use. Its robust design makes it an ideal choice for a wide range of automation and control tasks in various industrial environments.
Key Features:
3.4-Inch Monochrome Display: The HMISTO511 is equipped with a 3.4-inch monochrome screen that delivers sharp and clear visual feedback. The high-contrast display ensures that information is easily readable in diverse lighting conditions.
Green/Orange/Red (G/O/R) Indicators: The touch panel includes intuitive G/O/R indicators, providing clear status feedback and enhancing user interaction. These color-coded indicators simplify monitoring and control, making it easier to manage complex processes.
Touchscreen Interface: The HMISTO511 features a user-friendly touchscreen interface that supports precise input and efficient operation. The responsive touch technology allows for quick and accurate control of industrial processes.
Compact and Durable Design: Designed to withstand harsh industrial conditions, the HMISTO511 offers a compact footprint without compromising on durability. Its rugged construction ensures reliable performance even in challenging environments.
Versatile Applications: Ideal for use in machine control, process monitoring, and automation tasks, this touch panel is versatile and adaptable to a variety of industrial applications. It integrates seamlessly with Schneider Electric's automation systems, providing a cohesive and efficient user experience.
Ease of Integration: The HMISTO511 is designed for straightforward integration with existing systems. Its compatibility with Schneider Electric’s automation solutions allows for smooth and hassle-free implementation.
Technical Specifications:
- Display Size: 3.4 inches
- Display Type: Monochrome
- Indicators: Green/Orange/Red (G/O/R)
- Touchscreen Technology: Capacitive Touch
- Enclosure Type: Industrial-grade housing
- Operating Temperature Range: [Specify temperature range if known]
- Power Supply: [Specify power requirements if known]
- Dimensions: [Specify dimensions if known]
- Weight: [Specify weight if known]
Applications: The Schneider HMISTO511 Touch Panel Screen is well-suited for use in a variety of industrial settings, including manufacturing, process control, and machinery operation. Its clear display and intuitive interface make it an excellent choice for operators and engineers who require reliable and efficient control solutions.
Why Choose Schneider HMISTO511: Opt for the Schneider HMISTO511 Touch Panel Screen to enhance your industrial control systems with a high-quality, reliable display solution. Its compact design, combined with advanced features and durability, ensures that you have the tools needed for precise and effective process management.
Contact Us: For more information about the Schneider HMISTO511 Touch Panel Screen or to discuss how it can be integrated into your systems, please contact our sales team.
range of product |
Magelis STO & STU
|
|
---|---|---|
product or component type |
Touch panel screen
|
|
software designation |
Vijeo Designer
|
|
operating system |
Magelis
|
|
processor name |
CPU RISC
|
display size |
3.4 inch
|
|
---|---|---|
display type |
Backlit monochrome STN LCD
|
|
background colour |
Green, orange and red
|
|
display resolution |
200 x 80 pixels
|
|
touch panel |
Analogue
|
|
backlight lifespan |
10000 hours with red
50000 hours with orange 50000 hours with green |
|
brightness |
8 levels
|
|
contrast |
16 levels via touch panel
|
|
character font |
ASCII
Chinese (simplified Chinese) Japanese (ANK, Kanji) Korean Taiwanese (traditional Chinese) |
|
[Us] rated supply voltage |
24 V DC +/- 20 %
|
|
inrush current |
30 A
|
|
local signalling |
1 LED with green for normal operation
|
|
power consumption in W |
5 W
|
|
number of pages |
Limited by internal memory capacity
|
|
processor frequency |
333 MHz
|
|
memory description |
Application memory, 16 MB
Back up of data, 128 kB |
|
integrated connection type |
1 USB 2.0 type mini B
1 USB 2.0 type A Removable screw terminal block connector power supply Female RJ45 connector COM1 serial link with RS232C/RS485 interface at <= 115.2 kbits/s |
|
supply |
External source
|
|
realtime clock |
Access to the PLC real-time clock
|
|
downloadable protocols |
Modbus
Third party protocols Uni-TE |
|
fixing mode |
By 2 spring clips on 1.6...5 mm thick panel
|
|
enclosure material |
PPT
|
|
marking |
CE
|
|
height |
77.5 mm
|
|
width |
116.5 mm
|
|
depth |
36.5 mm
|
immunity to microbreaks |
3 ms
|
|
---|---|---|
standards |
EN 61131-2
FCC Class A IEC 61000-6-2 UL 1604 UL 508 |
|
product certifications |
CE
C-Tick cULus GOST UL Class 1 Division 2 T4A UL Class 1 Division 2 T5 |
|
ambient air temperature for operation |
0...50 °C
|
|
ambient air temperature for storage |
-20...60 °C
|
|
relative humidity |
0...90 % without condensation
|
|
operating altitude |
<= 2000 m
|
|
IP degree of protection |
IP20 (rear panel) conforming to IEC 60529
IP65 (front panel) conforming to IEC 60529 |
|
NEMA degree of protection |
NEMA 4X front panel (indoor use)
|
|
shock resistance |
15 gn for 11 ms conforming to IEC 60068-2-27
|
|
vibration resistance |
+/- 3.5 mm (f = 5...9 Hz) conforming to IEC 60068-2-6
1 gn (f = 9...150 Hz) conforming to IEC 60068-2-6 |
|
electromagnetic compatibility |
Resistance to radiated electromagnetic fields : 10 V/m
conforming to IEC 61000-4-3
|
Schneider HMISTO511 3.4" Monochrome Touch Panel Screen with G/O/R Indicators
- Brand: Schneider
- Product Code: HMISTO511
- Availability: 1000
