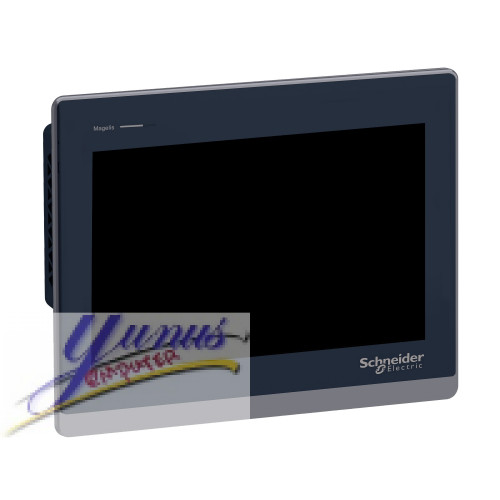

Schneider HMISTW6500 10" Touch Panel Display – Advanced Human-Machine Interface for Seamless Operation
Product Overview: The Schneider HMISTW6500 is a high-performance 10-inch touch panel display designed to enhance human-machine interaction in various industrial environments. Featuring a capacitive touchscreen with exceptional clarity and responsiveness, this advanced HMI (Human-Machine Interface) provides intuitive control and monitoring capabilities for your automation systems.
Key Features:
10-Inch Touchscreen Display: The HMISTW6500 boasts a vibrant 10-inch color TFT display, delivering clear and precise visuals even in demanding lighting conditions. The capacitive touchscreen ensures smooth, accurate touch input, making it ideal for complex control applications.
Dual Ethernet Ports: Equipped with two Ethernet ports, this HMI supports efficient network communication and redundancy. The dual ports enable seamless integration into your existing network infrastructure, providing enhanced connectivity and reliability for industrial processes.
USB Connectivity: The HMISTW6500 features both USB Host and Device ports, facilitating easy data transfer and peripheral connectivity. The USB Host port allows for connection of external devices such as keyboards and storage drives, while the USB Device port enables direct communication with other USB-enabled equipment.
24VDC Power Supply: Designed for compatibility with a wide range of industrial environments, the HMISTW6500 operates on a 24VDC power supply. This ensures reliable performance and reduces the risk of power-related disruptions.
Robust Build Quality: With a rugged design and high ingress protection (IP66) rating, the HMISTW6500 is built to withstand harsh industrial conditions, including dust, moisture, and temperature fluctuations. This durability ensures long-term reliability and minimizes maintenance needs.
Advanced Software Integration: The HMISTW6500 supports Schneider Electric’s EcoStruxure™ Operator Terminal Expert software, offering advanced configuration and customization options. This software allows for the creation of intuitive graphical interfaces and efficient system management.
Enhanced User Experience: The intuitive interface and high-resolution display of the HMISTW6500 make it easy for operators to interact with complex systems. Customizable screens and user-friendly navigation improve operational efficiency and reduce training time.
Applications: Ideal for use in manufacturing, process control, and automation environments, the Schneider HMISTW6500 is well-suited for applications requiring reliable and responsive HMI solutions. It seamlessly integrates with various PLCs, drives, and control systems to provide comprehensive monitoring and control capabilities.
Technical Specifications:
- Display Size: 10 inches
- Display Type: TFT LCD, capacitive touchscreen
- Resolution: [Insert resolution here]
- Ethernet Ports: 2 x Ethernet
- USB Ports: 1 x USB Host, 1 x USB Device
- Power Supply: 24VDC
- Ingress Protection Rating: IP66
- Operating Temperature Range: [Insert temperature range here]
Why Choose Schneider HMISTW6500? The Schneider HMISTW6500 offers a perfect blend of durability, advanced features, and user-friendly design. Its dual Ethernet ports and USB connectivity enhance flexibility and integration, while the 24VDC power supply ensures compatibility with a broad range of industrial applications. Invest in the Schneider HMISTW6500 to experience superior performance and reliability in your HMI solutions.
For more information or to request a quote, please contact us directly.
SEO Keywords: Schneider HMISTW6500, 10-inch touch panel display, industrial HMI, capacitive touchscreen, dual Ethernet ports, USB connectivity, 24VDC HMI, rugged touch panel, Schneider Electric HMI, EcoStruxure Operator Terminal Expert.
| range of product |
Magelis ST6 & STW6
|
|
|---|---|---|
| product or component type |
Touch panel screen
|
|
| software designation |
Web interface for operator
|
|
| processor name |
ARM Cortex-A8
|
| display size |
10 inch
|
|
|---|---|---|
| display type |
Colour TFT LCD
|
|
| display colour |
16 million colours
|
|
| display resolution |
1024 x 600 pixels WSVGA
|
|
| touch panel |
Single touch analogue resistive
|
|
| backlight lifespan |
50000 hours with white
|
|
| brightness |
16 levels
|
|
| character font |
ASCII
Katakana ASCII (European characters) |
|
| [Us] rated supply voltage |
24 V DC +/- 20 %
|
|
| inrush current |
30 A
|
|
| local signalling |
Status LED green, steady for offline
Status LED green, steady for operating Status LED green, flashing for operating Status LED green, faded for stand-by Status LED orange, flashing for software starting up Status LED red, steady for power supply (ON) Status LED red, flashing for operating Status LED red, off for power supply (OFF) |
|
| power consumption in W |
12.6 W
|
|
| processor frequency |
800 MHz
|
|
| port Ethernet |
10/100BASE
|
|
| memory description |
Device memory 512 MB
Backup memory 512 MB User data memory 128 kB |
|
| integrated connection type |
1 USB 2.0 type A back
1 USB 2.0 type micro B back 2 Ethernet - female RJ45 bottom |
|
| supply |
External supply
|
|
| realtime clock |
Built-in 0...50 °C
Built-in 10...90 % RH |
|
| fixing mode |
By 4 screws, mounting on 1.6...5 mm thick panel conforming to UL
61010-2-201
By 4 screws conforming to EN 61131-2 By 4 screws conforming to IEC 61000-6-2 |
|
| enclosure material |
PC
|
|
| front material |
Aluminium
|
|
| marking |
CE
|
|
| cut-out dimensions |
255 x 185 mm panel cut dimension
|
|
| height |
203 mm
|
|
| width |
273 mm
|
|
| depth |
47 mm
|
|
| product weight |
1.3 kg
|
| immunity to microbreaks |
10 ms
|
|
|---|---|---|
| standards |
CSA C22.2 No 61010-2-201
UL 61010-2-201 EN 61000-6-2 EN 61131-2 EN 61000-6-4 |
|
| product certifications |
CSA
REACH China RoHS CE |
|
| directives |
2014/30/EU - electromagnetic compatibility
2014/35/EU - low voltage directive |
|
| ambient air temperature for operation |
0...50 °C
|
|
| ambient air temperature for storage |
-20...60 °C
|
|
| relative humidity |
10...90 % non-condensing
|
|
| operating altitude |
2000 m
|
|
| IP degree of protection |
IP20 rear panel conforming to IEC 61131-2
IP65 front panel conforming to IEC 61131-2 |
|
| NEMA degree of protection |
NEMA 4 front panel (indoor use)
NEMA 13 front panel (in enclosure) |
|
| shock resistance |
147 m/s² for 11 ms (X, Y, Z directions for 3 times) conforming
to EN/IEC 61131-2
|
|
| vibration resistance |
+/- 3.5 mm (f = 5...9 Hz) X, Y, Z directions for 10 cycles
(approx. 100 min) conforming to EN/IEC 61131-2
9.8 m/s² (f = 9...150 Hz) |
|
| electromagnetic compatibility |
Electrical fast transient/burst immunity test - test level: 2 kV
(power ports) conforming to IEC 61000-4-4
Electrical fast transient/burst immunity test - test level: 1 kV (signal ports) Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to EN/IEC 61000-4-2 level 3 Electrostatic discharge immunity test - test level: 8 kV (air discharge) |
Schneider HMISTW6500 10" Touch Panel Display – Dual Ethernet, USB Host & Device, 24VDC
- Brand: Schneider
- Product Code: HMISTW6500
- Availability: 1000
Tags: Schneider HMISTW6500, 10 inch touch panel display, dual Ethernet, USB host, USB device, 24VDC HMI, industrial touch screen, rugged display, Schneider Electric, automation control
