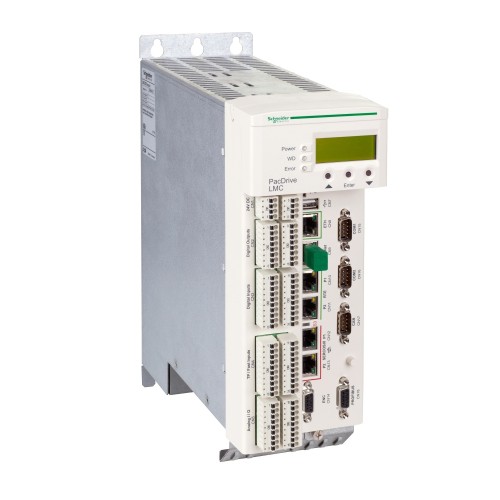

Schneider LMC300CBL10000 Motion Controller
Overview: The Schneider LMC300CBL10000 is an advanced motion controller designed to deliver precision, flexibility, and efficiency for complex automation and motion control applications. Engineered for high-performance in demanding environments, this 8-axis controller integrates seamlessly with various industrial systems to optimize machinery operations and enhance production capabilities.
Key Features:
8-Axis Control: The LMC300CBL10000 supports up to 8 axes of motion control, providing comprehensive management of multiple actuators and drives in a single unit. This feature ensures precise and synchronized movement across all axes, essential for complex automation tasks.
Accurate and Reliable Performance: Built to handle intricate motion profiles and high-speed operations, this controller offers exceptional accuracy and reliability. It is ideal for applications requiring high precision and minimal downtime.
Integrated Communication Modules:
- Profibus DP: The LMC300CBL10000 includes a Profibus DP communication module, facilitating robust and high-speed data exchange with other Profibus-compatible devices. This ensures seamless integration into existing automation networks and enhances system interoperability.
- Real-Time Ethernet (RT-Ethernet): With the RT-Ethernet module, the controller supports real-time data communication over Ethernet networks. This feature provides fast and reliable data transfer, crucial for real-time control and monitoring applications.
Acceleration Kit (Acc Kit): The included acceleration kit is designed to improve system responsiveness and performance. It enhances the controller’s capability to manage rapid changes in motion, ensuring smooth and efficient operation.
Versatile Application: Suitable for a wide range of industries, including automotive, aerospace, packaging, and manufacturing, the Schneider LMC300CBL10000 excels in applications requiring precise motion control and complex automation.
User-Friendly Interface: The controller features an intuitive interface, making it accessible for both experienced engineers and new users. Its advanced programming capabilities support customized motion control strategies and automation solutions.
Robust Construction: Engineered for durability, the LMC300CBL10000 is built to withstand the rigors of industrial environments. Its robust design ensures long-term reliability and performance, even in challenging conditions.
Specifications:
- Model: LMC300CBL10000
- Axes: 8
- Communication Modules: Profibus DP, RT-Ethernet
- Included Accessories: Acceleration Kit (Acc Kit)
- Application Areas: Automotive, Aerospace, Packaging, Manufacturing
- Environmental Compatibility: Designed for industrial environments with high reliability standards
Applications:
- Complex Automation Systems: Ideal for controlling intricate automation processes with multiple moving parts.
- High-Speed Manufacturing: Suitable for environments where rapid and precise motion control is crucial.
- Flexible Production Lines: Enables adaptable and efficient production setups for various industries.
Optimize Your Automation Today: Unlock the full potential of your motion control systems with the Schneider LMC300CBL10000 Motion Controller. Experience unparalleled precision, versatility, and reliability in your automation processes. For more information or to place an order, contact us today.
Keywords: Schneider LMC300CBL10000, motion controller, 8-axis controller, Profibus DP, RT-Ethernet, industrial automation, motion control, acceleration kit, high-precision motion control
| range of product |
PacDrive 3
|
|
|---|---|---|
| product or component type |
Motion controller
|
| product compatibility |
LMC300
|
|
|---|---|---|
| number of axis |
<= 8
|
|
| discrete input number |
20 digital input conforming to IEC 61131-2 Type 1
4 interrupt input conforming to IEC 61131-2 Type 1 16 touch probe input conforming to IEC 61131-2 Type 1 |
|
| discrete input voltage |
20...33 V
0...6 V |
|
| discrete input voltage type |
DC
|
|
| analogue input number |
2
|
|
| analogue input type |
Voltage analog input : - 10...10 V
Current analog input : - 20...20 mA |
|
| analogue input resolution |
12 bits
|
|
| discrete input current |
5 mA digital input
5 mA interrupt input 5 mA touch probe input |
|
| input impedance |
100000 Ohm analog input
500 Ohm |
|
| anti bounce filtering |
Configurable from 1 ms or 5 ms for digital input
From 100 µs for touch probe input Configurable from 0.1 ms or 1 ms for interrupt input |
|
| discrete output number |
16 digital output
2 analog output |
|
| discrete output current |
250 mA for digital output
|
|
| leakage current |
< 0.4 mA
|
|
| number of I/O expansion module |
2
|
|
| [Us] rated supply voltage |
24 V DC
|
|
| power consumption in W |
36 W
|
|
| memory type |
RAM DDR2 512 MB
NVRAM 128 kB |
|
| programming language |
LD (ladder)
IL (instruction list) FBD (function block diagram) CFC (continuous function chart) ST (structured text) SFC (sequential function chart) |
|
| integrated connection type |
2 Ethernet port, connector RJ45 for protocol Sercos
1 Ethernet port, connector RJ45 for protocol Ethernet 10/100BASE-T, FTP/HTTP 1 CAN port, connector SUB-D 9 for protocol CANopen 1 USB port, connector USB type A 2 Ethernet port, connector RJ45 for protocol RT-Ethernet (real-time) 1 Ethernet port, connector RJ45 for protocol PacNet 1 port, connector SUB-D 9 for protocol Profibus DP 1 COM1 serial link, connector SUB-D 9 for protocol RS232 1 COM2 serial link, connector SUB-D 9 for protocol RS422/RS485 1 port, connector SUB-D 9 for master encoder |
|
| supply |
Power supply 24 V DC, 1 A
|
|
| width |
100 mm
|
|
| height |
310 mm
|
|
| depth |
243 mm
|
|
| product weight |
3.5 kg
|
| standards |
UL 508C
EN/IEC 61131-2 CSA C22.2 No 274 CSA C22.2 No 14 |
|
|---|---|---|
| product certifications |
EAC
CE CSA cULus |
|
| ambient air temperature for operation |
5...55 °C
|
|
| relative humidity |
5...95 % without condensation
|
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
|
| pollution degree |
2 conforming to IEC 61131-2
|
|
| vibration resistance |
3.5 mm (f = 5...8.4 Hz)
10 m/s² (f = 8.4...150 Hz) |
|
| shock resistance |
150 m/s² (duration = 6 ms) conforming to EN/IEC 60721-3-3
operation
|
Schneider LMC300CBL10000 Motion Controller – 8-Axis with Acc Kit, Profibus DP & RT-Ethernet
- Brand: Schneider
- Product Code: LMC300CBL10000
- Availability: 1000
Tags: Schneider LMC300CBL10000, Motion Controller, 8-Axis Control, Acceleration Kit, Profibus DP, RT-Ethernet, Industrial Automation, Precision Control, Motion Control System, Automation Equipment
