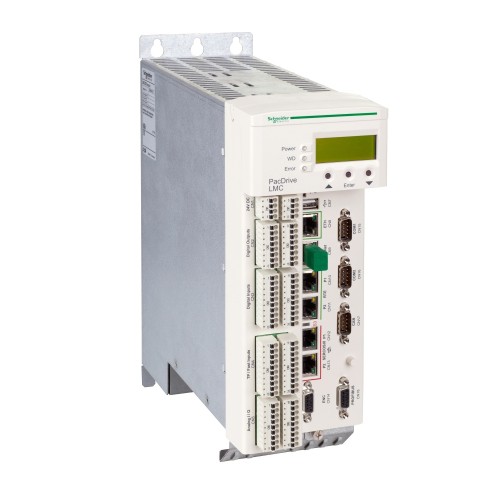

Schneider LMC300CCD10000 Motion Controller: Advanced 8-Axis Precision Control with Integrated Features

Overview

The Schneider LMC300CCD10000 Motion Controller represents the pinnacle of high-performance motion control technology, designed for demanding industrial automation applications. This advanced controller integrates cutting-edge features, including an 8-axis configuration, an acceleration kit, an uninterruptible power supply (UPS), and OM RT-Ethernet connectivity. Engineered for precision and reliability, the LMC300 is ideal for complex machinery, robotics, and high-speed manufacturing processes.

Key Features

  • 8-Axis Motion Control: The LMC300CCD10000 supports up to 8 axes of simultaneous motion control, offering unparalleled flexibility and precision for multi-axis systems. It is optimized for applications requiring intricate and synchronized movements, ensuring smooth and accurate performance.

  • Acceleration Kit: Equipped with an advanced acceleration kit, this motion controller enhances dynamic response and precision. The acceleration kit provides superior handling of rapid starts, stops, and changes in direction, contributing to improved overall system performance and efficiency.

  • Integrated UPS: The built-in uninterruptible power supply (UPS) ensures continuous operation and protection against power interruptions. This feature maintains system stability and prevents data loss during unexpected power outages, safeguarding your operations and minimizing downtime.

  • OM RT-Ethernet Connectivity: The LMC300CCD10000 features OM RT-Ethernet for high-speed, real-time communication. This robust Ethernet protocol facilitates seamless integration with other automation components and systems, enhancing communication reliability and speed.

  • Versatile Application: Ideal for a wide range of industrial applications, including robotics, CNC machinery, and automated production lines, the LMC300CCD10000 excels in environments that demand high precision, reliability, and speed.

  • Advanced Configuration and Diagnostics: The motion controller includes sophisticated diagnostic and configuration tools, allowing for easy setup, troubleshooting, and optimization. This ensures that the system can be tailored to meet specific operational requirements and maintain peak performance.

  • Durability and Reliability: Designed with industrial-grade components and stringent quality standards, the Schneider LMC300CCD10000 ensures long-term reliability and durability even in the most challenging environments.

Specifications

  • Model: LMC300CCD10000
  • Axes: 8
  • Acceleration Kit: Included
  • UPS: Integrated
  • Communication: OM RT-Ethernet
  • Application: Robotics, CNC Machinery, Automated Production Lines

Why Choose Schneider LMC300CCD10000?

The Schneider LMC300CCD10000 Motion Controller stands out for its comprehensive feature set, advanced control capabilities, and robust construction. Its 8-axis control, integrated UPS, and OM RT-Ethernet connectivity make it a top choice for industries where precision and reliability are paramount. Enhance your automation processes with the Schneider LMC300CCD10000 and experience unmatched performance and dependability.

Contact Us

For more information on the Schneider LMC300CCD10000 Motion Controller or to request a quote, please contact us today. Our team of experts is ready to assist with your motion control needs.

Main
range of product
PacDrive 3
product or component type
Motion controller
Complementary
product compatibility
LMC300
number of axis
<= 8
discrete input number
20 digital input conforming to IEC 61131-2 Type 1
4 interrupt input conforming to IEC 61131-2 Type 1
16 touch probe input conforming to IEC 61131-2 Type 1
discrete input voltage
0...6 V
20...33 V
discrete input voltage type
DC
analogue input number
2
analogue input type
Voltage analog input : - 10...10 V
Current analog input : - 20...20 mA
analogue input resolution
12 bits
discrete input current
5 mA digital input
5 mA interrupt input
5 mA touch probe input
input impedance
100000 Ohm analog input
500 Ohm
anti bounce filtering
Configurable from 1 ms or 5 ms for digital input
From 100 µs for touch probe input
Configurable from 0.1 ms or 1 ms for interrupt input
discrete output number
16 digital output
2 analog output
discrete output current
250 mA for digital output
leakage current
< 0.4 mA
number of I/O expansion module
2
[Us] rated supply voltage
24 V DC
power consumption in W
36 W
memory type
RAM DDR2 512 MB
NVRAM 128 kB
programming language
SFC (sequential function chart)
CFC (continuous function chart)
ST (structured text)
FBD (function block diagram)
IL (instruction list)
LD (ladder)
integrated connection type
2 Ethernet port, connector RJ45 for protocol Sercos
1 Ethernet port, connector RJ45 for protocol Ethernet 10/100BASE-T, FTP/HTTP
1 CAN port, connector SUB-D 9 for protocol CANopen
1 USB port, connector USB type A
2 Ethernet port, connector RJ45 for protocol RT-Ethernet (real-time)
1 Ethernet port, connector RJ45 for protocol PacNet
1 port, connector SUB-D 9 for protocol Profibus DP
1 COM1 serial link, connector SUB-D 9 for protocol RS232
1 COM2 serial link, connector SUB-D 9 for protocol RS422/RS485
1 port, connector SUB-D 9 for master encoder
supply
Power supply 24 V DC, 1 A
width
100 mm
height
310 mm
depth
243 mm
product weight
3.5 kg

Environment
standards
CSA C22.2 No 274
CSA C22.2 No 14
UL 508C
EN/IEC 61131-2
product certifications
CE
CSA
cULus
EAC
ambient air temperature for operation
5...40 °C
relative humidity
5...95 % without condensation
IP degree of protection
IP20 conforming to EN/IEC 60529
pollution degree
2 conforming to IEC 61131-2
vibration resistance
3.5 mm (f = 5...8.4 Hz)
10 m/s² (f = 8.4...150 Hz)
shock resistance
150 m/s² (duration = 6 ms) conforming to EN/IEC 60721-3-3 operation
