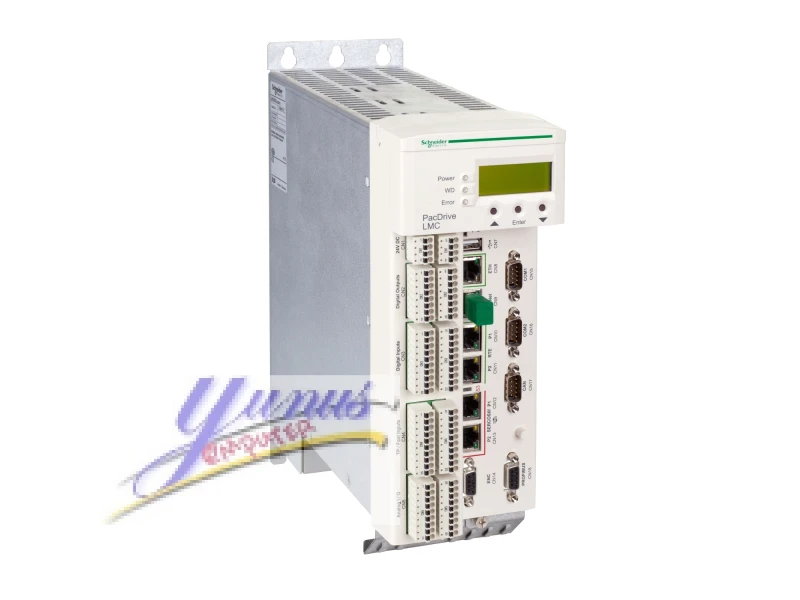

Schneider LMC600CCC10000 Motion Controller – Advanced 99-Axis Control with Acc Kit, USP, and OM Profibus DP
Elevate your automation capabilities with the Schneider LMC600CCC10000 Motion Controller, a high-performance solution designed to manage up to 99 axes with precision and reliability. This advanced motion controller is engineered to handle complex motion control tasks, making it ideal for sophisticated industrial applications that demand exceptional accuracy and flexibility.
Key Features:
Comprehensive Axis Control: The LMC600CCC10000 supports control of up to 99 axes, allowing for the management of multiple motion systems simultaneously. This high axis count ensures that even the most intricate automation processes can be executed seamlessly.
Acceleration Kit (Acc Kit): Includes an acceleration kit designed to enhance system performance by optimizing the acceleration and deceleration profiles. This feature ensures smooth and precise motion control, minimizing mechanical wear and improving overall system efficiency.
Universal Serial Protocol (USP) Integration: Equipped with Universal Serial Protocol (USP) capabilities, the LMC600 provides robust data communication and system integration. This feature supports the seamless integration of various peripherals and devices, enhancing system versatility.
Open Modular Profibus DP: The LMC600CCC10000 includes Profibus DP (Decentralized Peripherals) communication capabilities, offering high-speed data transfer and reliable network integration. Profibus DP facilitates real-time communication between the controller and field devices, ensuring synchronized operation across the system.
Enhanced Functionality with OM: The inclusion of OM (Operation Module) functionality extends the controller’s capabilities, providing advanced programming options and flexible operation modes. This modular approach allows for customized configurations to meet specific application needs.
Scalable and Flexible: Designed for scalability, the LMC600CCC10000 is adaptable to various industrial environments. Its modular design and extensive axis support make it suitable for applications ranging from simple single-axis systems to complex multi-axis setups.
Robust Performance: Schneider’s motion controller ensures reliable and high-performance operation even under demanding conditions. Its advanced algorithms and processing power guarantee precise control and responsiveness, enhancing overall system productivity.
Applications:
The Schneider LMC600CCC10000 Motion Controller is ideal for a wide range of industrial automation applications, including but not limited to:
- Manufacturing Automation: Optimizes control in complex manufacturing processes, including assembly lines and robotic systems.
- Material Handling: Enhances precision and efficiency in material handling systems, including conveyors and sorting systems.
- Packaging Machinery: Provides precise motion control for high-speed packaging and labeling equipment.
- Custom Automation Solutions: Facilitates the creation of bespoke automation solutions tailored to specific industry requirements.
Technical Specifications:
- Axis Support: Up to 99 axes
- Communication Protocol: Profibus DP, USP
- Included Features: Acceleration Kit, OM (Operation Module)
- Application Compatibility: Manufacturing, Material Handling, Packaging, Custom Automation
Why Choose Schneider LMC600CCC10000?
The Schneider LMC600CCC10000 Motion Controller stands out for its superior axis management, advanced communication capabilities, and robust performance. It is the ideal choice for industries seeking to enhance their automation systems with a reliable and versatile motion control solution.
Optimize your automation processes with the Schneider LMC600CCC10000 – where precision meets performance.
| range of product |
PacDrive 3
|
|
|---|---|---|
| product or component type |
Motion controller
|
| product compatibility |
LMC600
|
|
|---|---|---|
| number of axis |
<= 99
|
|
| discrete input number |
20 digital input conforming to IEC 61131-2 Type 1
4 interrupt input conforming to IEC 61131-2 Type 1 16 touch probe input conforming to IEC 61131-2 Type 1 |
|
| discrete input voltage |
0...6 V
20...33 V |
|
| discrete input voltage type |
DC
|
|
| analogue input number |
2
|
|
| analogue input type |
Voltage analog input : - 10...10 V
Current analog input : - 20...20 mA |
|
| analogue input resolution |
12 bits
|
|
| discrete input current |
5 mA digital input
5 mA interrupt input 5 mA touch probe input |
|
| input impedance |
100000 Ohm analog input
500 Ohm |
|
| anti bounce filtering |
Configurable from 1 ms or 5 ms for digital input
From 100 µs for touch probe input Configurable from 0.1 ms or 1 ms for interrupt input |
|
| discrete output number |
16 digital output
2 analog output |
|
| discrete output current |
250 mA for digital output
|
|
| leakage current |
< 0.4 mA
|
|
| number of I/O expansion module |
2
|
|
| [Us] rated supply voltage |
24 V DC
|
|
| power consumption in W |
36 W
|
|
| memory type |
RAM DDR2 512 MB
NVRAM 256 kB |
|
| programming language |
SFC (sequential function chart)
CFC (continuous function chart) IL (instruction list) ST (structured text) FBD (function block diagram) LD (ladder) |
|
| integrated connection type |
2 Ethernet port, connector RJ45 for protocol Sercos
1 Ethernet port, connector RJ45 for protocol Ethernet 10/100BASE-T, FTP/HTTP 1 CAN port, connector SUB-D 9 for protocol CANopen 1 USB port, connector USB type A 2 Ethernet port, connector RJ45 for protocol RT-Ethernet (real-time) 1 Ethernet port, connector RJ45 for protocol PacNet 1 port, connector SUB-D 9 for protocol Profibus DP 1 COM1 serial link, connector SUB-D 9 for protocol RS232 1 COM2 serial link, connector SUB-D 9 for protocol RS422/RS485 1 port, connector SUB-D 9 for master encoder |
|
| supply |
Power supply 24 V DC, 1 A
|
|
| width |
100 mm
|
|
| height |
310 mm
|
|
| depth |
243 mm
|
|
| product weight |
3.5 kg
|
| standards |
CSA C22.2 No 14
UL 508C EN/IEC 61131-2 CSA C22.2 No 274 |
|
|---|---|---|
| product certifications |
cULus
CSA CE EAC |
|
| ambient air temperature for operation |
5...40 °C
|
|
| relative humidity |
5...95 % without condensation
|
|
| IP degree of protection |
IP20 conforming to EN/IEC 60529
|
|
| pollution degree |
2 conforming to IEC 61131-2
|
|
| vibration resistance |
3.5 mm (f = 5...8.4 Hz)
10 m/s² (f = 8.4...150 Hz) |
|
| shock resistance |
150 m/s² (duration = 6 ms) conforming to EN/IEC 60721-3-3
operation
|
