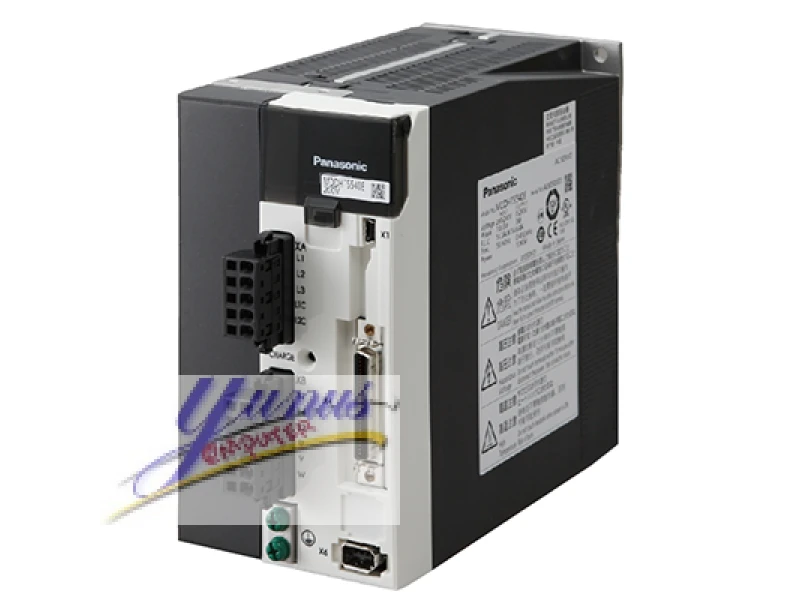

Panasonic MINAS A5 MADHT1105E Servo Driver
The Panasonic MINAS A5 MADHT1105E Servo Driver represents the pinnacle of advanced motion control technology, engineered to deliver exceptional performance and reliability in demanding industrial applications. This state-of-the-art servo driver is designed to seamlessly integrate with Panasonic's MINAS A5 series of servomotors, providing precise control and robust operation for a wide range of automation tasks.
Key Features:
High Precision Control: The MADHT1105E features advanced feedback mechanisms and high-resolution encoders that ensure unparalleled accuracy in positioning and speed control. Its sophisticated digital signal processing algorithms enable smooth and precise motion control, crucial for applications requiring exacting standards.
Enhanced Performance: With a maximum output current of 10A and a high-speed communication interface, the MINAS A5 MADHT1105E offers rapid response times and excellent dynamic performance. This driver supports high-speed pulse commands and is optimized for both low and high-speed operations, making it ideal for various automation tasks.
Robust Construction: Designed to withstand harsh industrial environments, the MADHT1105E is built with durable materials and features comprehensive protection against dust, moisture, and electrical interference. Its rugged design ensures reliable operation in challenging conditions.
Versatile Compatibility: The servo driver supports multiple communication protocols, including EtherCAT, RS-232, and RS-485, allowing for easy integration with existing systems and networks. It is compatible with a wide range of Panasonic MINAS A5 series servomotors, providing flexibility in system design.
Advanced Diagnostics and Monitoring: The MINAS A5 MADHT1105E includes integrated diagnostic tools and monitoring features that facilitate real-time system analysis and troubleshooting. Users can access detailed performance metrics and fault history through the intuitive interface, enhancing maintenance efficiency.
Energy Efficiency: Engineered with energy-saving technology, this servo driver minimizes power consumption while maintaining high performance. Its advanced control algorithms optimize energy use, contributing to reduced operational costs and a lower environmental footprint.
User-Friendly Interface: The driver is equipped with a comprehensive graphical user interface that simplifies configuration and parameter setting. It supports a variety of programming languages and offers an intuitive setup process, reducing installation time and complexity.
Applications:
- Robotics
- CNC Machinery
- Packaging Equipment
- Material Handling Systems
- Textile Machinery
- Automotive Assembly Lines
The Panasonic MINAS A5 MADHT1105E Servo Driver is the ideal solution for industries seeking precision, reliability, and efficiency in motion control systems. Its advanced features and robust design make it a top choice for enhancing the performance of automated systems.
Panasonic MINAS A5 Family MADHT1105E Servo Driver
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MADHT1105E |
| Details | A5E series Position control type without the safety function |
| Family Name | MINAS A5 |
| Series | A5E series |
| Type | Position control type |
| Frame | A-Frame |
| Frequency response | 2.3 kHz |
| Control method | Position control |
| Safety Function | without |
| Power device Max. current rating | 10A |
| Current detector current rating | 5A |
| Supply voltage | Single phase 100 V |
| I/F Classification of type | Analog/Pulse |
| Dimensions (W) (Unit: mm) | 40 |
| Dimensions (H) (Unit: mm) | 150 |
| Dimensions (D) (Unit: mm) | 130 |
| Mass (kg) | 0.8 |
| Environment | For more details, please refer to the instruction manual. |
Basic Specifications
| Item | Specifications |
|---|---|
| Input power: Main circuit | Single phase 100 to 120V +10% -15% 50/60 Hz |
| Input power: Control circuit | Single phase 100 to 120V +10% -15% 50/60 Hz |
| Encoder feedback | 20-bit (1048576 resolution) incremental encoder, 5-wire serial |
| Parallel I/O connector: Control signal Input | General purpose 10 inputs The function of general-purpose input is selected by parameters. |
| Parallel I/O connector: Control signal Output | General purpose 6 output The function of general-purpose output is selected by parameters. |
| Parallel I/O connector: Analog signal Output | 2 outputs (Analog monitor: 2 output) |
| Parallel I/O connector: Pulse signal Input | 2 inputs (Photo-coupler input, Line receiver input) |
| Parallel I/O connector: Pulse signal Output | 4 outputs (Line driver: 3 output, open collector: 1 output) |
| Communication function | USB |
| Communication function: USB | USB interface to connect to computers for parameter setting or status monitoring. |
| Regeneration | No built-in regenerative resistor (external resistor only) |
| Control mode | Switching among the following 3 mode is enabled, (1) Position control, (2) Internal velocity command, (3) Position/Internal velocity command |
