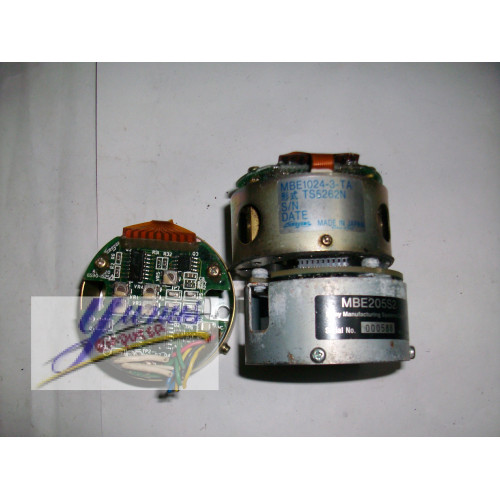

Tamagawa MBE-3-TA TS5262N Encoder

Product Overview: The Tamagawa MBE-3-TA TS5262N Encoder is a high-performance optical rotary encoder engineered for precision motion control applications. Designed and manufactured by Tamagawa Seiki Co., Ltd., a global leader in encoder technology, the TS5262N model offers unparalleled accuracy, durability, and reliability, making it an ideal choice for sophisticated industrial automation systems.

Technical Specifications:

• Type: Optical Rotary Encoder
• Model: MBE-3-TA TS5262N
• Resolution: 2,048 pulses per revolution (PPR)
• Output Signal: Incremental (A, B, Z)
• Phase Difference: 90° (Quadrature)
• Supply Voltage: 5V DC ±5%
• Current Consumption: ≤ 80 mA
• Frequency Response: Up to 1 MHz
• Temperature Range: -20°C to +85°C
• Enclosure Rating: IP50
• Housing Material: Aluminum Alloy
• Shaft Diameter: 6 mm
• Mounting Type: Flange Mount

Key Features:

• High Precision and Accuracy: With a resolution of 2,048 PPR, the Tamagawa TS5262N encoder ensures high accuracy in rotational measurement, critical for applications requiring exact position feedback.
• Durable Construction: Constructed with an aluminum alloy housing and designed to withstand harsh environments, this encoder offers reliable performance even under challenging conditions.
• Compact Design: The encoder's compact form factor and flange mount design facilitate easy integration into various mechanical systems and save space in crowded assemblies.
• Wide Temperature Range: Capable of operating in temperatures ranging from -20°C to +85°C, the TS5262N encoder is suitable for a broad range of industrial applications.
• High Frequency Response: With a frequency response of up to 1 MHz, this encoder supports high-speed applications and provides accurate feedback for dynamic processes.

Applications: The Tamagawa MBE-3-TA TS5262N Encoder is ideal for use in:

• Robotics: Precise control of robotic joints and actuators.
• CNC Machines: Accurate position feedback in machining and cutting operations.
• Industrial Automation: Integration into automated assembly lines and conveyor systems.
• Positioning Systems: High-resolution measurement in positioning and tracking systems.

Benefits:

• Enhanced Performance: Provides precise and reliable position feedback, contributing to improved overall system accuracy and performance.
• Robust and Reliable: Engineered to perform consistently in demanding environments, reducing downtime and maintenance needs.
• Versatile Integration: Easy to integrate into various mechanical setups with its compact and flange mount design.

SEO Keywords:

• Tamagawa MBE-3-TA TS5262N Encoder
• High-resolution optical rotary encoder
• Industrial motion control encoder
• Precision rotary encoder
• Tamagawa TS5262N encoder specifications

Conclusion: The Tamagawa MBE-3-TA TS5262N Encoder stands out for its exceptional accuracy, robust design, and reliable performance. Whether used in robotics, CNC machines, or industrial automation, it delivers the precision and durability required for advanced motion control systems.
