Product Description: Panasonic MINAS A5 MCDHT3120E Servo Driver
The Panasonic MINAS A5 MCDHT3120E Servo Driver represents the pinnacle of servo drive technology, offering unparalleled precision, efficiency, and reliability for industrial automation applications. Engineered with cutting-edge motion control algorithms, the MCDHT3120E delivers exceptional performance across a wide range of demanding environments.
Key Features:
High Precision Control: The MCDHT3120E boasts advanced real-time auto-tuning capabilities, ensuring smooth and accurate control of servo motors with minimal overshoot and vibration. It provides industry-leading positioning accuracy with a resolution of 20 bits, making it ideal for applications requiring fine control and precision.
Enhanced Communication Protocols: This servo driver supports multiple communication protocols, including EtherCAT, MECHATROLINK-II, and CANopen, enabling seamless integration into various industrial networks. The high-speed data transmission ensures minimal latency, resulting in improved response times and overall system performance.
Compact and Efficient Design: Despite its compact footprint, the MCDHT3120E is designed to handle high power densities, making it perfect for space-constrained installations. The integrated cooling system and optimized thermal management allow for continuous operation under demanding conditions without compromising reliability.
Safety Features: The MCDHT3120E includes an array of safety features such as Safe Torque Off (STO) and overvoltage protection, ensuring the protection of both equipment and operators. The built-in diagnostic tools and real-time monitoring capabilities further enhance operational safety and maintenance efficiency.
Energy Efficiency: With its advanced regenerative energy recovery system, the MCDHT3120E significantly reduces energy consumption by converting excess energy into reusable power, lowering operational costs and supporting sustainable industrial practices.
Applications:
The Panasonic MINAS A5 MCDHT3120E Servo Driver is designed for a wide range of industrial applications, including robotics, CNC machinery, packaging equipment, and semiconductor manufacturing. Its superior performance and versatility make it a preferred choice for engineers seeking high-precision motion control solutions.
Technical Specifications:
- Rated Power Output: 1200W
- Input Voltage: 200-240V AC
- Control Modes: Position, Speed, Torque
- Communication Interfaces: EtherCAT, MECHATROLINK-II, CANopen
- Dimensions: [Specific Dimensions]
- Weight: [Specific Weight]
Why Choose Panasonic MINAS A5 MCDHT3120E?
The Panasonic MINAS A5 MCDHT3120E Servo Driver stands out as a top-tier solution for industrial automation, offering unparalleled control precision, reliability, and energy efficiency. Backed by Panasonic’s renowned engineering expertise, this servo driver is an investment in quality and performance, ensuring long-term operational success and reduced downtime.

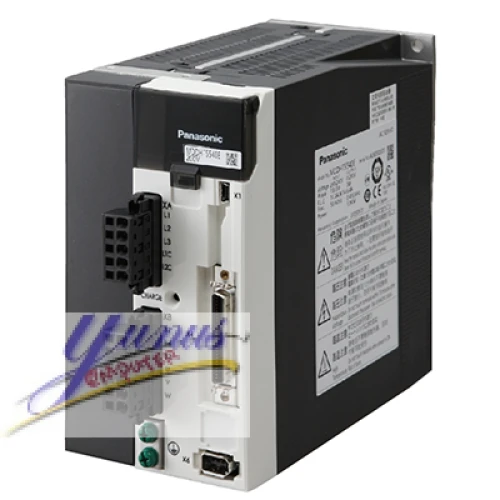

Panasonic MINAS A5 Family MCDHT3120E Servo Driver
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MCDHT3120E |
| Details | A5E series Position control type without the safety function |
| Family Name | MINAS A5 |
| Series | A5E series |
| Type | Position control type |
| Frame | C-Frame |
| Frequency response | 2.3 kHz |
| Control method | Position control |
| Safety Function | without |
| Power device Max. current rating | 30A |
| Current detector current rating | 20A |
| Supply voltage | Single phase 100 V |
| I/F Classification of type | Analog/Pulse |
| Dimensions (W) (Unit: mm) | 65 |
| Dimensions (H) (Unit: mm) | 150 |
| Dimensions (D) (Unit: mm) | 170 |
| Mass (kg) | 1.6 |
| Environment | For more details, please refer to the instruction manual. |
Basic Specifications
| Item | Specifications |
|---|---|
| Input power: Main circuit | Single phase 100 to 120V +10% -15% 50/60 Hz |
| Input power: Control circuit | Single phase 100 to 120V +10% -15% 50/60 Hz |
| Encoder feedback | 20-bit (1048576 resolution) incremental encoder, 5-wire serial |
| Parallel I/O connector: Control signal Input | General purpose 10 inputs The function of general-purpose input is selected by parameters. |
| Parallel I/O connector: Control signal Output | General purpose 6 output The function of general-purpose output is selected by parameters. |
| Parallel I/O connector: Analog signal Output | 2 outputs (Analog monitor: 2 output) |
| Parallel I/O connector: Pulse signal Input | 2 inputs (Photo-coupler input, Line receiver input) |
| Parallel I/O connector: Pulse signal Output | 4 outputs (Line driver: 3 output, open collector: 1 output) |
| Communication function | USB |
| Communication function: USB | USB interface to connect to computers for parameter setting or status monitoring. |
| Regeneration | Built-in regenerative resistor (external resistor is also enabled.) |
| Control mode | Switching among the following 3 mode is enabled, (1) Position control, (2) Internal velocity command, (3) Position/Internal velocity command |
