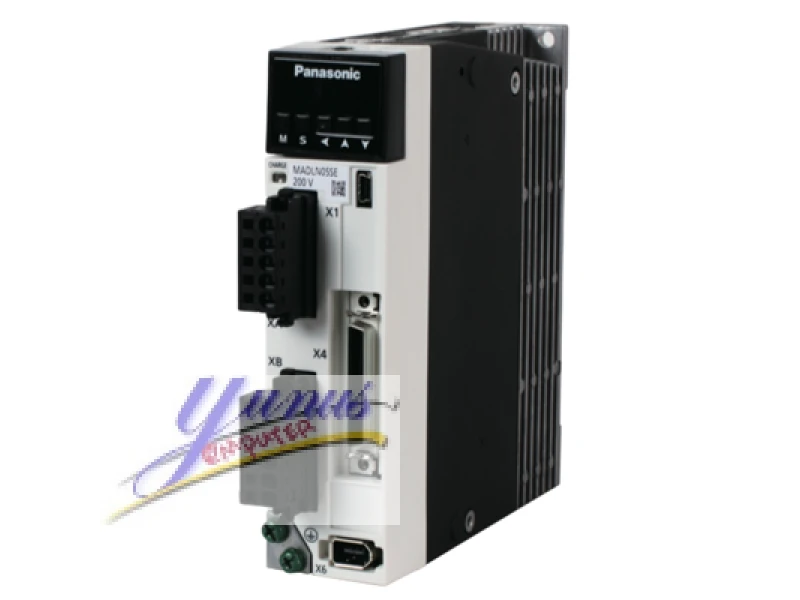

Panasonic MINAS A6 Family MDDLT55SF Servo Drive
Elevate Your Automation Capabilities with the Panasonic MINAS A6 MDDLT55SF Servo Drive
The Panasonic MINAS A6 Family MDDLT55SF Servo Drive is engineered to meet the demands of modern industrial automation with unparalleled precision and reliability. This high-performance servo drive integrates seamlessly into sophisticated motion control systems, providing exceptional control over servo motors for a wide range of applications.
Key Features:
Superior Performance: The MDDLT55SF offers cutting-edge performance with a maximum output current of 55A, ensuring optimal torque and speed control for demanding tasks.
Enhanced Efficiency: Designed for energy efficiency, this servo drive minimizes power consumption while maximizing output performance, reducing overall operational costs.
Advanced Control Technology: Incorporates advanced digital signal processing and precise feedback control to deliver smooth and accurate motion, enhancing overall system reliability.
Versatile Compatibility: Compatible with a broad spectrum of Panasonic MINAS A6 servo motors, making it a versatile choice for diverse applications ranging from packaging to robotics.
Robust Construction: Built with high-quality components and a rugged design to withstand harsh industrial environments, ensuring long-term durability and reliable performance.
User-Friendly Interface: Features an intuitive interface for easy setup and adjustment, streamlining configuration and reducing commissioning time.
Enhanced Safety: Equipped with integrated safety functions and fail-safe mechanisms to protect both the drive and connected machinery, ensuring operational safety and compliance with industry standards.
Technical Specifications:
- Model: MDDLT55SF
- Output Current: 55A
- Power Supply: 200V
- Control Mode: Digital Servo Control
- Interface: User-friendly LCD display
- Protection: IP20 rated for protection against dust and contact with hands
- Dimensions: Compact and space-efficient design for easy integration
Applications:
The Panasonic MINAS A6 MDDLT55SF Servo Drive is ideal for a variety of industrial applications including:
- Automated Machinery: Perfect for use in CNC machines, conveyors, and other automated equipment.
- Robotics: Delivers precise control and high-speed performance for robotic arms and systems.
- Packaging: Ensures accurate and reliable motion control for packaging and material handling operations.
Why Choose Panasonic MINAS A6 MDDLT55SF?
Investing in the Panasonic MINAS A6 MDDLT55SF Servo Drive means opting for a product that combines high performance with reliability and efficiency. Its advanced features and robust construction make it a superior choice for any automation system requiring precise and dependable servo control.
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MDDLT55SF |
| Details | A6SF series Multifunction type (Pulse analog full-closed) with the safety function |
| Family Name | MINAS A6 |
| Series | A6SF series |
| Type | Multifunction type |
| Frame | D-Frame |
| Frequency response | 3.2 kHz |
| Control method | Position control, Velocity control, Torque control, and Full-closed control |
| Safety Function | with |
| Supply voltage | Single/3-phase 200 V |
| I/F Classification of type | Analog /Pulse, Modbus (RS485 /RS232) |
| Dimensions (W) (Unit: mm) | 85 |
| Dimensions (H) (Unit: mm) | 150 |
| Dimensions (D) (Unit: mm) | 170 |
| Mass (kg) | 2.1 |
| Environment | For more details, please refer to the instruction manual. |
Basic Specifications
| Item | Specifications |
|---|---|
| Input power: Main circuit | Single/3-phase 200 to 240V +10% -15% 50/60 Hz |
| Input power: Control circuit | Single phase 200 to 240V +10% -15% 50/60 Hz |
| Encoder feedback | 23-bit (8388608 resolution) absolute encoder, 7-wire serial |
| About Encoder feedback | * When using it as an incremental system (not using multiturn data), do not connect the battery for absolute encoder. Parameter Pr. 0.15 must be set to "1" (factory settings). |
| External scale feedback | A/B phase, homing signal differential input. Serial communication is also supported. |
| Parallel I/O connector: Control signal Input | General purpose 10 inputs The function of general-purpose input is selected by parameters. |
| Parallel I/O connector: Control signal Output | General purpose 6 output The function of general-purpose output is selected by parameters. |
| Parallel I/O connector: Analog signal Input | 3 inputs (16-bit A/D : 1 input, 12-bit A/D : 2 inputs) |
| Parallel I/O connector: Analog signal Output | 2 outputs (Analog monitor: 2 output) |
| Parallel I/O connector: Pulse signal Input | 2 inputs (Photo-coupler input, Line receiver input) Both open collector and line driver interface can be connected. High speed line driver interface can be connected. |
| Parallel I/O connector: Pulse signal Output | 4 outputs (Line driver: 3 output, open collector: 1 output) Line driver output for encoder pulses (A/B/Z signal) or external feedback pulses (EXA/EXB/EXZ signal) open collector output also available for Z or EXZ signal. |
| Communication function | USB, RS232, RS485, Modbus-RTU |
| Communication function: USB | USB interface to connect to computers for parameter setting or status monitoring. |
| Communication function: RS232 | 1:1 communication |
| Communication function: RS485 | 1: n communication (max 31) |
| Communication function: Modbus-RTU | 1: n communication |
| Regeneration | Built-in regenerative resistor (external resistor is also enabled.) |
| Control mode | Switching among the following 7 mode is enabled, (1) Position control, (2) Speed control, (3) Torque control, (4) Position/speed control, (5) Position/Torque control, (6) Speed/Torque control, (7) Full-closed control |
