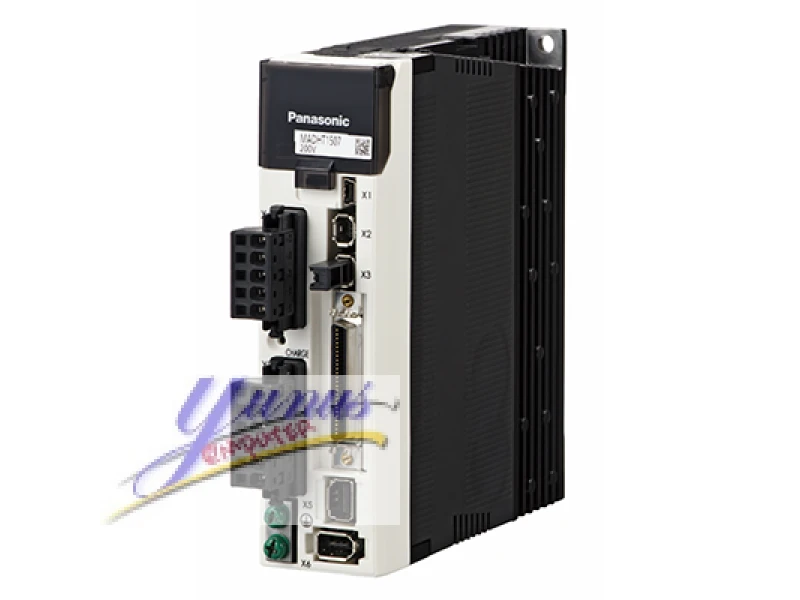

Panasonic MINAS A5 MFDHT5440ND1 Servo Driver
Elevate your motion control applications with the Panasonic MINAS A5 MFDHT5440ND1 Servo Driver, a state-of-the-art solution designed for high-performance industrial automation. Engineered for precision and reliability, this servo driver integrates seamlessly with advanced Panasonic MINAS A5 servo motors to deliver superior torque, speed, and positioning accuracy.
Key Features:
High-Performance Processing: The MINAS A5 MFDHT5440ND1 boasts an advanced DSP (Digital Signal Processor) that ensures rapid response times and exceptional control fidelity. This robust processor handles complex algorithms efficiently, providing smooth and accurate motion control across various applications.
Versatile Compatibility: Compatible with a wide range of Panasonic MINAS A5 series servo motors, this driver supports diverse applications, from simple automation tasks to complex motion profiles. The extensive compatibility ensures flexibility in system design and integration.
Enhanced Efficiency: With a high-efficiency power supply unit, the MFDHT5440ND1 optimizes energy consumption and minimizes heat generation. This not only extends the lifespan of the servo driver but also contributes to lower operational costs and increased system reliability.
Precision Control: The driver’s high-resolution encoder feedback and advanced control algorithms facilitate precise positioning and velocity control. The result is minimized backlash and reduced mechanical wear, enhancing overall system accuracy and longevity.
User-Friendly Interface: The intuitive LCD interface simplifies setup and operation, providing real-time diagnostics and configuration options. The user-friendly design ensures quick adjustments and ease of maintenance, reducing downtime and improving productivity.
Robust Construction: Built to withstand harsh industrial environments, the MFDHT5440ND1 features a durable enclosure that protects against dust, moisture, and temperature variations. Its rugged construction ensures reliable performance even in demanding conditions.
Safety and Compliance: Adhering to global safety standards, this servo driver includes multiple safety features such as overcurrent protection, thermal protection, and emergency stop functionality. Compliance with international regulations ensures safe and reliable operation in various industrial settings.
Applications:
The Panasonic MINAS A5 MFDHT5440ND1 Servo Driver is ideal for a wide range of applications, including robotics, CNC machinery, packaging systems, and automated assembly lines. Its versatility and high performance make it suitable for industries such as automotive, aerospace, and electronics, where precision and reliability are paramount.
Specifications:
- Model: MINAS A5 MFDHT5440ND1
- Power Supply Voltage: 200-240V AC
- Output Current: 4.0 A
- Control Type: Vector Control
- Encoder Feedback: Incremental Encoder
- Protection Class: IP65
- Communication Protocols: RS-232, RS-485
Product Dimensions:
- Width: 180 mm
- Height: 280 mm
- Depth: 80 mm
Weight:
- Net Weight: 2.8 kg
Ordering Information:
For more information or to place an order, please contact our sales department or visit our website. We offer comprehensive support and service to ensure your Panasonic MINAS A5 MFDHT5440ND1 Servo Driver meets all your operational needs.
Panasonic MINAS A5 Family MFDHT5440ND1 Servo Driver
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MFDHT5440ND1 |
| Details | A5ⅡN series RTEX, Ultra high-speed Network without the safety function |
| Family Name | MINAS A5 |
| Series | A5ⅡN series |
| Type | RTEX, Ultra high-speed Network |
| Frame | F-Frame |
| Frequency response | 2.3 kHz |
| Control method | Position control, Velocity control, Torque control, and Full-closed control |
| Safety Function | without |
| Power device Max. current rating | 50A |
| Current detector current rating | 40A |
| Supply voltage | 3-phase 400 V |
| I/F Classification of type | RTEX |
| Dimensions (W) (Unit: mm) | 130 |
| Dimensions (H) (Unit: mm) | 220 |
| Dimensions (D) (Unit: mm) | 214 |
| Mass (kg) | 4.7 |
| Environment | For more details, please refer to the instruction manual. |
Basic Specifications
| Item | Specifications |
|---|---|
| Input power: Main circuit | Single phase 380 to 480V +10% -15% 50/60 Hz |
| Input power: Control circuit | DC 24V ± 15% |
| Encoder feedback | 17-bit (131072 resolution) absolute encoder, 7-wire serial 20-bit (1048576 resolution) incremental encoder, 5-wire serial |
| External scale feedback | A/B phase, homing signal differential input. Serial communication is also supported. |
| Parallel I/O connector: Control signal Input | Each 8 input can be assigned by the parameter. |
| Parallel I/O connector: Control signal Output | Each 3 input can be assigned by the parameter. |
| Parallel I/O connector: Analog signal Output | 2 outputs (Analog monitor: 1, 2 output) |
| Parallel I/O connector: Pulse signal Output | Line driver output for Encoder pulses or external scale pulses (A/B phase signal). |
| Communication function | RTEX, USB |
| Communication function: USB | USB interface to connect to computers for parameter setting or status monitoring. |
| Communication function: RTEX | Communication for transmission of a real-time operation command, the parameter setting, or the status monitoring. |
| Regeneration | Built-in regenerative resistor (external resistor is also enabled.) |
| Control mode | 1. Semi-closed control Position control: Profile position control [PP], Cyclic position control [CP] Velocity control: Cyclic velocity control [CV] Torque control: Cyclic torque control [CT] 2.Full-closed control Position control: Profile position control [PP], Cyclic position control [CP] * Switch two modes (above-mentioned 1 and 2) according to the parameter. * Switch PP/CP/CV/CT mode according to the RTEX communication command. |
