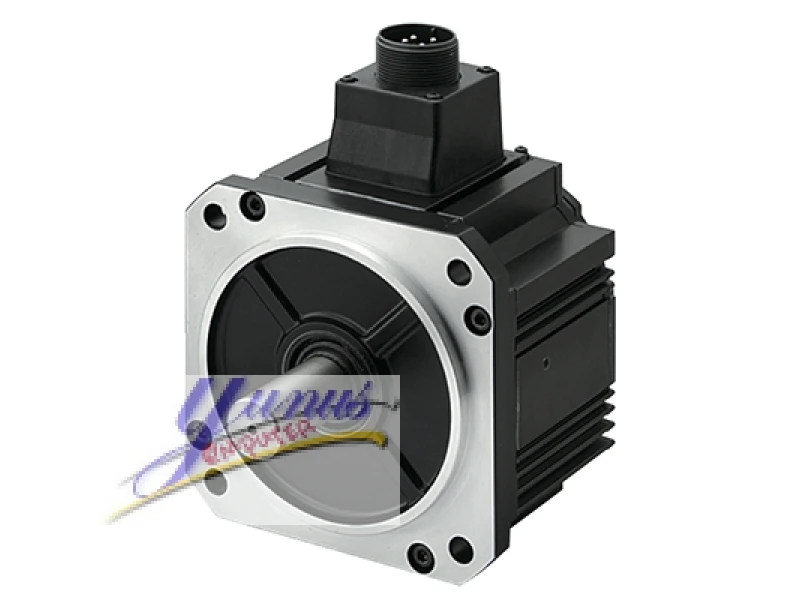

Panasonic MINAS A6 MHMF302L1G8 Servo Motor 200V 3000W
The Panasonic MINAS A6 MHMF302L1G8 Servo Motor stands as a pinnacle of precision engineering, designed to deliver unparalleled performance in industrial automation. Engineered with state-of-the-art technology, this servo motor epitomizes reliability, accuracy, and power in motion control systems.
Key Features:
High Precision & Efficiency
Built for precision-driven applications, the MINAS A6 MHMF302L1G8 boasts remarkable accuracy in motion control, ensuring consistent and reliable performance across various industrial operations. With an ultra-efficient design, it maximizes energy usage while delivering optimal output.
Dynamic Power
Operating at 200V with a power rating of 3000W, this servo motor provides robust and consistent power output, empowering your machinery with the force and speed required for high-demand tasks. Its dynamic capabilities make it ideal for diverse industrial applications.
Advanced Control & Adaptability
Equipped with advanced control algorithms, the MINAS A6 MHMF302L1G8 offers unparalleled adaptability and responsiveness. Its sophisticated technology allows for seamless integration into complex automation systems, ensuring smooth and precise operation.
Durability & Longevity
Crafted with premium-grade materials and subjected to rigorous quality testing, this servo motor is built to withstand demanding industrial environments. Its durable construction ensures longevity and reliability, reducing maintenance requirements and downtime.
Technical Specifications:
- Model: MINAS A6 MHMF302L1G8
- Voltage: 200V
- Power Output: 3000W
- Precision: High-resolution encoder for precise positioning
- Communication: Supports various industrial communication protocols for seamless integration
Applications:
The Panasonic MINAS A6 MHMF302L1G8 Servo Motor finds its application across a spectrum of industries, including but not limited to:
- CNC Machinery
- Packaging Equipment
- Robotics
- Printing Machinery
- Industrial Automation Systems
Enhance your industrial operations with the exceptional performance and reliability of the Panasonic MINAS A6 MHMF302L1G8 Servo Motor. Invest in precision, power, and efficiency for your machinery.
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MHMF302L1G8 |
| Details | High inertia, Connector type |
| Family Name | MINAS A6 |
| Series | MHMF Series |
| Type | High inertia |
| Enclosure | IP67 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 176 mm sq. |
| Flange sq. dimension (Unit:mm) | 176 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Motor connector: JL10, Encoder connector: Large size JL10 |
| About Motor encoder connector | Connector JL10 (Large size): Also applicable to screwed type |
| Power supply capacity (kVA) | 5.2 |
| Voltage specifications | 200 V |
| Rated output | 3000 W |
| Rated current (A (rms)) | 17.0 |
| Holding brake | without |
| Mass (kg) | 13.8 |
| Oil seal | with protective lip |
| Shaft | Key-way |
| Rated torque (N ⋅ m) | 14.3 |
| Continuous stall torque (N ⋅ m) | 17.2 |
| Momentary Max. peak torque (N ⋅ m) | 43.0 |
| Max. current (A (o-p)) | 72 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4285 x 2 in parallel |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 2000 |
| Rated rotational Max. speed (r/min) | 3000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 85.3 |
| Recommended moment of inertia ratio of the load and the rotor | 5 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 23-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 8388608 |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 1666 |
| During assembly: Thrust load A-direction (N) | 784 |
| During assembly: Thrust load B-direction (N) | 980 |
| During operation: Radial load P-direction (N) | 784 |
| During operation: Thrust load A, B-direction (N) | 343 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
