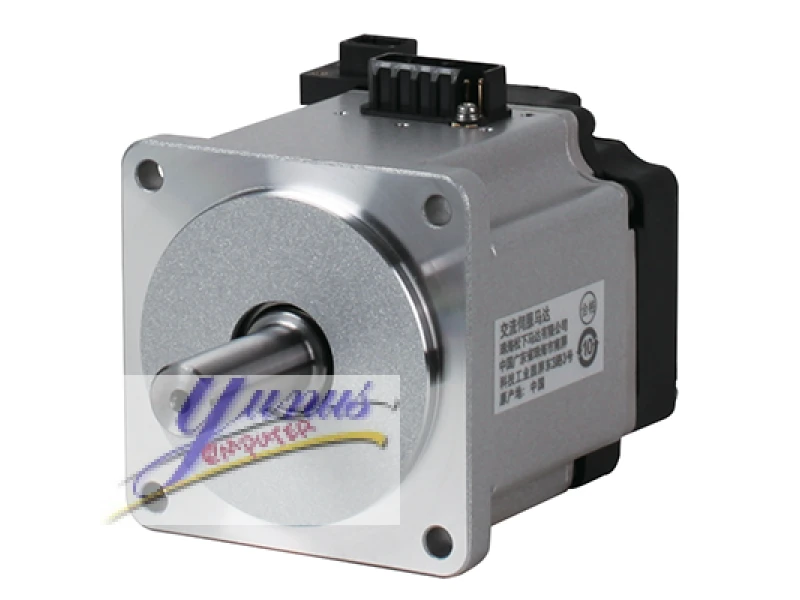

Panasonic MINAS A6 Family MHMF5AZL1V2 Servo Motor 100/200V 50W – Precision Engineering for Optimal Performance
Overview:
Experience unparalleled precision and reliability with the Panasonic MINAS A6 Family MHMF5AZL1V2 Servo Motor. Designed to deliver superior performance in demanding applications, this high-quality servo motor is engineered to meet the rigorous standards of modern industrial automation. With its advanced features and robust construction, it is ideal for a variety of applications requiring exceptional accuracy and control.
Key Features:
High Power Efficiency: Operating at a voltage of 100/200V and delivering 50W of power, the MINAS A6 MHMF5AZL1V2 servo motor ensures optimal efficiency, reducing energy consumption while maintaining high torque and speed capabilities.
Superior Precision and Control: Equipped with advanced feedback technology and high-resolution encoders, this servo motor offers precise position control and smooth motion, making it suitable for applications demanding high accuracy and repeatability.
Compact and Robust Design: The MINAS A6 MHMF5AZL1V2 features a compact form factor that allows for easy integration into tight spaces. Its robust construction ensures durability and reliable performance in harsh industrial environments.
Enhanced Speed and Torque Characteristics: The motor is designed to deliver superior speed and torque performance, ensuring that it meets the dynamic requirements of various automation tasks. Its high-speed capabilities are complemented by excellent torque characteristics for efficient operation.
Advanced Thermal Management: With an efficient cooling system and advanced thermal management, this servo motor maintains optimal operating temperatures, enhancing its longevity and reducing the need for maintenance.
Versatile Application: Ideal for a wide range of applications, including robotics, CNC machinery, and conveyor systems, the MINAS A6 MHMF5AZL1V2 provides the versatility needed to tackle diverse industrial challenges.
User-Friendly Integration: The servo motor is designed for easy installation and integration with existing control systems, featuring intuitive connectors and compatibility with various drive systems.
Technical Specifications:
- Model: Panasonic MINAS A6 Family MHMF5AZL1V2
- Voltage: 100/200V
- Power Rating: 50W
- Type: Servo Motor
- Feedback Device: High-Resolution Encoder
- Torque Characteristics: High Torque Output
- Speed Range: Variable, High-Speed Performance
- Cooling: Advanced Thermal Management System
- Dimensions: [Insert Dimensions]
- Weight: [Insert Weight]
Applications:
- Robotics and Automation
- CNC Machinery
- Packaging Systems
- Conveyor Systems
- Assembly Lines
Why Choose Panasonic MINAS A6 MHMF5AZL1V2?
The Panasonic MINAS A6 Family MHMF5AZL1V2 Servo Motor stands out for its exceptional performance, reliability, and advanced features. It combines cutting-edge technology with a durable design to meet the demanding needs of modern industrial applications. Choose Panasonic for superior precision and efficiency in your automation processes.
Contact Us:
For more information on the Panasonic MINAS A6 Family MHMF5AZL1V2 Servo Motor, or to request a quote, please contact us at [Your Contact Information]. Our team of experts is ready to assist you with any questions or technical support you may need.
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MHMF5AZL1V2 |
| Details | High inertia, Lead wire type |
| Family Name | MINAS A6 |
| Series | MHMF Series |
| Type | High inertia |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 40 mm sq. |
| Flange sq. dimension (Unit:mm) | 40 |
| Motor lead-out configuration | Lead wire |
| Motor encoder connector | Lead wire |
| Power supply capacity (kVA) | AC100 V : 0.4 kVA AC200 V : 0.5 kVA |
| Voltage specifications | 100 V/200 V common |
| Rated output | 50 W |
| Rated current (A (rms)) | 1.1 |
| Holding brake | with |
| Mass (kg) | 0.53 |
| Oil seal | with |
| Shaft | Key-way, center tap |
| Rated torque (N ⋅ m) | 0.16 |
| Continuous stall torque (N ⋅ m) | 0.18 |
| Momentary Max. peak torque (N ⋅ m) | 0.56 |
| Max. current (A (o-p)) | 5.5 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4280 (For AC100 V) , DV0P4281 (For AC200 V) |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 6500 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.042 |
| Recommended moment of inertia ratio of the load and the rotor | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 23-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 8388608 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 0.38 or more |
| Engaging time (ms) | 35 or less |
| Releasing time (ms) | 20 or less |
| Exciting current (DC) (A) | 0.30 |
| Releasing voltage (DC) (V) | 1 or more |
| Exciting voltage (DC) (V) | 24 ± 2.4 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 147 |
| During assembly: Thrust load A-direction (N) | 88 |
| During assembly: Thrust load B-direction (N) | 117.6 |
| During operation: Radial load P-direction (N) | 68.6 |
| During operation: Thrust load A, B-direction (N) | 49 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
