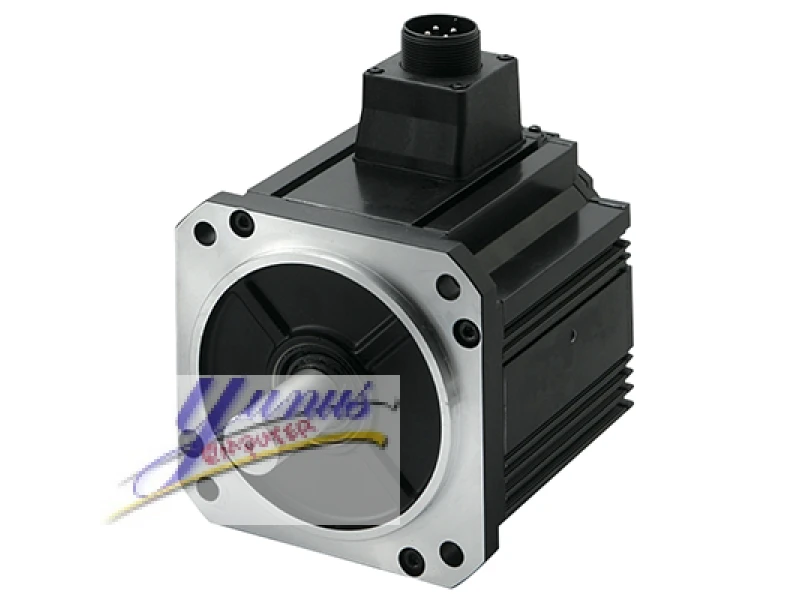

Panasonic MINAS A5 Family MSME302SCDM Servo Motor 200V 3000W
Product Description:
Elevate your automation capabilities with the Panasonic MINAS A5 Family MSME302SCDM Servo Motor. Engineered for excellence, this high-performance servo motor operates at 200V and delivers a robust 3000W of power, making it an ideal choice for precision-driven industrial applications.
Key Features:
Superior Performance: The MSME302SCDM delivers exceptional torque and speed control, ensuring precise and reliable operation in various industrial settings. With its 3000W power output, it meets the demands of high-performance machinery and automation systems.
Advanced Technology: Part of the renowned MINAS A5 series, this servo motor integrates cutting-edge technology to enhance efficiency and minimize energy consumption. Its advanced control algorithms provide smooth and accurate motion, contributing to overall system stability.
High Precision: Designed for applications requiring meticulous control, the MSME302SCDM features high-resolution feedback and low cogging for precise positioning and consistent performance. This precision reduces operational errors and increases productivity.
Durability and Reliability: Built to withstand harsh industrial environments, this servo motor offers robust construction and long-lasting durability. Its high-quality components ensure dependable performance and reduced maintenance needs.
Versatile Applications: Suitable for a wide range of applications, including robotics, CNC machines, and automated production lines, the MSME302SCDM enhances system capabilities and adaptability in diverse industrial processes.
Easy Integration: The motor is designed for seamless integration with existing systems, featuring standard connectors and compatibility with a variety of control systems. Its user-friendly setup ensures minimal downtime during installation.
Technical Specifications:
- Voltage: 200V
- Power Output: 3000W
- Series: MINAS A5
- Model: MSME302SCDM
Applications:
The Panasonic MINAS A5 MSME302SCDM Servo Motor is ideal for precision tasks in automation, robotics, and high-speed applications. Its high torque and accuracy make it perfect for enhancing machinery performance and ensuring consistent results in demanding environments.
Enhance Your System:
Upgrade to the Panasonic MINAS A5 Family MSME302SCDM Servo Motor for unparalleled precision, reliability, and efficiency in your industrial operations. Trust Panasonic's cutting-edge technology to drive your automation needs to the next level.
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MSME302SCDM |
| Details | Low inertia, Connector type, IP65 |
| Family Name | MINAS A5 |
| Series | MSME Series |
| Type | Low inertia |
| Special Order Product | Special Order Product |
| Cautions for Special ordering product | Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan. |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 120 mm sq. |
| Flange sq. dimension (Unit:mm) | 120 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 4.5 |
| Voltage specifications | 200 V |
| Rated output | 3000 W |
| Rated current (A (rms)) | 18.1 |
| Holding brake | with |
| Mass (kg) | 9.4 |
| Oil seal | with |
| Shaft | Round |
| Rated torque (N ⋅ m) | 9.55 |
| Momentary Max. peak torque (N ⋅ m) | 28.6 |
| Max. current (A (o-p)) | 77 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4285 x 2 in parallel |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 5000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 6.85 |
| Recommended moment of inertia ratio of the load and the rotor | 15 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 17-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 131072 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 11.8 or more |
| Engaging time (ms) | 80 or less |
| Releasing time (ms) | 15 or less |
| Exciting current (DC) (A) | 0.81 ± 10% |
| Releasing voltage (DC) (V) | 2 or more |
| Exciting voltage (DC) (V) | 24 ± 2.4 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 980 |
| During assembly: Thrust load A-direction (N) | 588 |
| During assembly: Thrust load B-direction (N) | 686 |
| During operation: Radial load P-direction (N) | 490 |
| During operation: Thrust load A, B-direction (N) | 196 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
