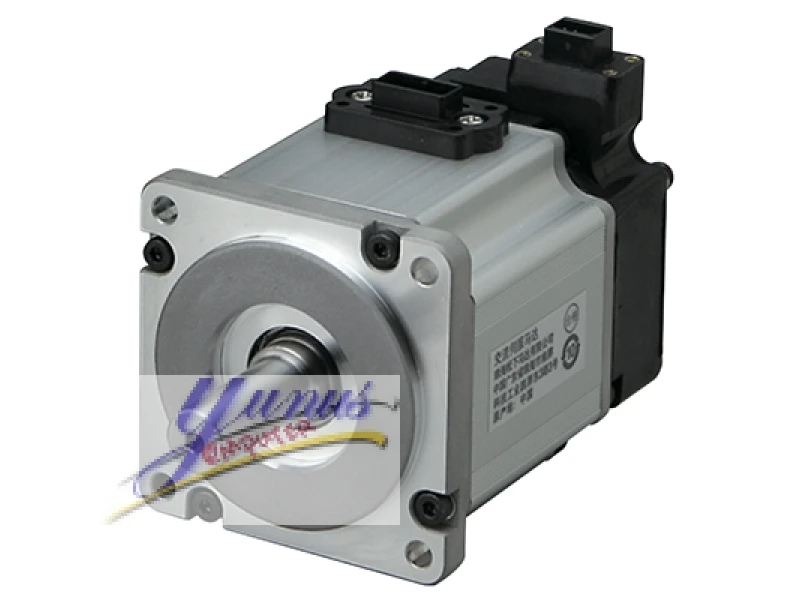

Panasonic MINAS A5 Family MSME5AZG1S Servo Motor (100/200V, 50W) – Precision Engineering for Advanced Automation
Product Overview:
The Panasonic MINAS A5 Family MSME5AZG1S Servo Motor is engineered to deliver exceptional performance and reliability for a wide range of automation applications. Designed with cutting-edge technology, this servo motor offers high precision, energy efficiency, and robust durability, making it ideal for demanding industrial environments.
Key Features:
Voltage and Power: Operating at dual voltage options of 100V and 200V, the MSME5AZG1S delivers a consistent power output of 50W, ensuring reliable operation across various voltage conditions and applications.
High Precision Control: Equipped with advanced feedback control and high-resolution encoders, this servo motor provides precise position, speed, and torque control, enhancing the overall performance and accuracy of your automation systems.
Enhanced Durability: The MINAS A5 series is designed for longevity and durability, featuring robust construction and high-quality materials that withstand the rigors of continuous operation and harsh industrial environments.
Compact Design: Its compact and lightweight design allows for easy integration into space-constrained environments, optimizing your machine’s layout and performance.
Energy Efficiency: Incorporating the latest energy-efficient technologies, the MSME5AZG1S minimizes power consumption while maintaining high performance, contributing to reduced operational costs and a lower environmental footprint.
Versatile Applications: Ideal for use in CNC machinery, robotics, packaging systems, and other automated processes, the MSME5AZG1S offers versatility and adaptability to various industrial automation needs.
Advanced Communication: Supports a range of communication protocols for seamless integration with existing control systems, enhancing system connectivity and data exchange.
Technical Specifications:
- Model: MSME5AZG1S
- Motor Type: AC Servo Motor
- Voltage Range: 100V / 200V
- Power Output: 50W
- Control Type: Closed-loop, feedback control
- Encoder Resolution: High-resolution encoder for precise feedback
- Operating Temperature: Suitable for a wide temperature range for diverse environments
- Dimensions: [Specify dimensions]
- Weight: [Specify weight]
Applications:
The Panasonic MINAS A5 Family MSME5AZG1S Servo Motor is engineered to excel in various applications including:
- Precision machining
- Automated assembly systems
- High-speed packaging machinery
- Robotic arms and conveyors
- Testing and inspection systems
Why Choose Panasonic MINAS A5?
Panasonic’s MINAS A5 Family stands at the forefront of servo motor technology, combining exceptional performance with innovative features to meet the needs of modern industrial automation. Trust in Panasonic’s legacy of quality and precision to drive your operations with confidence.
For detailed specifications and to request a quote, please contact our sales team or visit our website.
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MSME5AZG1S |
| Details | Low inertia, Connector type, IP67 |
| Family Name | MINAS A5 |
| Series | MSME Series |
| Type | Low inertia |
| Enclosure | IP67 |
| About Enclosure | Except rotating portion of output shaft and connecting pin part of the motor connector and the encoder connector. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 38 mm sq. |
| Flange sq. dimension (Unit:mm) | 38 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | AC100 V : 0.4 kVA AC200 V : 0.5 kVA |
| Voltage specifications | 100 V/200 V common |
| Rated output | 50 W |
| Rated current (A (rms)) | 1.1 |
| Holding brake | without |
| Mass (kg) | 0.31 |
| Oil seal | without |
| Shaft | Key-way, center tap |
| Rated torque (N ⋅ m) | 0.16 |
| Momentary Max. peak torque (N ⋅ m) | 0.48 |
| Max. current (A (o-p)) | 4.7 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4280 (For AC100 V) , DV0P4281 (For AC200 V) |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 6000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.025 |
| Recommended moment of inertia ratio of the load and the rotor | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 20-bit Incremental system |
| Rotary encoder: Resolution | 1048576 |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 147 |
| During assembly: Thrust load A-direction (N) | 88 |
| During assembly: Thrust load B-direction (N) | 117.6 |
| During operation: Radial load P-direction (N) | 68.6 |
| During operation: Thrust load A, B-direction (N) | 58.8 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
