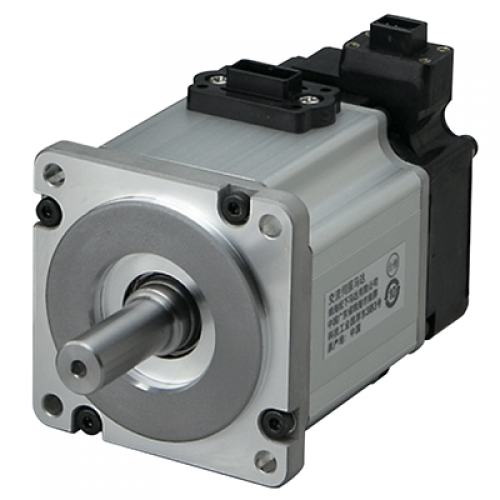

Panasonic MINAS A6 MSMF021L1S1 Servo Motor

The Panasonic MINAS A6 MSMF021L1S1 Servo Motor is a high-performance solution designed to meet the rigorous demands of modern automation systems. Engineered with precision and reliability, this servo motor is an integral component for applications requiring dynamic motion control and superior torque capabilities.

Key Features and Benefits:

1. High Efficiency and Power Density:

   • The MSMF021L1S1 offers an impressive power output of 200W, making it ideal for compact and efficient machinery.
   • Its high torque-to-weight ratio ensures optimal performance in space-constrained environments.

2. Advanced Feedback System:

   • Equipped with a 23-bit absolute encoder, this servo motor provides exceptional positioning accuracy and repeatability.
   • The encoder's high resolution facilitates smooth and precise control, crucial for intricate automation tasks.

3. Robust and Durable Design:

   • Constructed with high-quality materials, the MSMF021L1S1 ensures long-lasting durability and reliability even under strenuous operating conditions.
   • The motor's IP65-rated housing offers excellent protection against dust and water ingress, making it suitable for harsh industrial environments.

4. Seamless Integration and Compatibility:

   • The MSMF021L1S1 is fully compatible with the Panasonic MINAS A6 servo drives, ensuring seamless integration and optimal performance.
   • Its compact design and standardized mounting dimensions facilitate easy installation and maintenance.

5. Enhanced Control Features:

   • The servo motor supports a wide range of control modes, including position, speed, and torque control, providing versatility for various application needs.
   • Advanced tuning functions enable quick and easy optimization of motor performance, reducing setup time and enhancing overall productivity.

6. Energy Efficiency:

   • Designed with energy efficiency in mind, the MSMF021L1S1 reduces power consumption while maintaining high operational performance.
   • Its efficient thermal management system ensures minimal heat generation, contributing to lower energy costs and extended motor life.

Technical Specifications:

• Power Output: 200W
• Rated Speed: 3000 RPM
• Maximum Speed: 5000 RPM
• Rated Torque: 0.637 Nm
• Peak Torque: 1.91 Nm
• Encoder Type: 23-bit Absolute Encoder
• Protection Class: IP65
• Operating Temperature: -20°C to +55°C
• Weight: 1.1 kg
• Mounting: Flange

Applications:

The Panasonic MINAS A6 MSMF021L1S1 Servo Motor is ideal for a wide range of applications, including but not limited to:

• Precision CNC machining
• Robotics and automation
• Packaging and labeling machines
• Printing and textile machinery
• Semiconductor manufacturing equipment

Conclusion:

The Panasonic MINAS A6 MSMF021L1S1 Servo Motor stands out as a top-tier choice for engineers and system integrators seeking reliable, high-performance motion control solutions. Its advanced features, robust design, and energy-efficient operation make it a versatile and cost-effective option for various industrial applications.

For more information on the Panasonic MINAS A6 MSMF021L1S1 Servo Motor and to explore how it can enhance your automation systems, contact our expert team today.

Spec Detail

Permissible load
