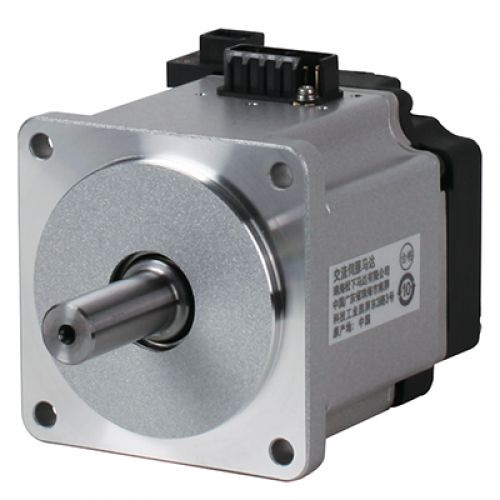

Panasonic MINAS A5 Family MSMJ022S1B Servo Motor - 200V 200W
Elevate your precision motion control with the Panasonic MINAS A5 Family MSMJ022S1B Servo Motor, a high-performance solution designed for demanding industrial applications. This 200V, 200W servo motor is engineered to deliver exceptional torque and speed control, ensuring optimal performance in various automation systems.
Key Features:
Superior Precision and Control: The MSMJ022S1B offers exceptional accuracy with its advanced digital signal processing capabilities. This ensures precise control over motor position, velocity, and torque, making it ideal for applications requiring high precision.
Robust Performance: With a nominal voltage of 200V and a power rating of 200W, this servo motor is capable of handling significant loads while maintaining high efficiency. The motor’s robust design is suitable for high-demand environments and continuous operation.
Enhanced Reliability: The MINAS A5 series is renowned for its durability and reliability. The MSMJ022S1B is built with high-quality materials and components that ensure long-term performance and minimal maintenance.
Compact and Lightweight Design: Despite its powerful performance, the MSMJ022S1B features a compact form factor that allows for easy integration into various systems and equipment. Its lightweight design contributes to reduced overall system weight and improved efficiency.
Advanced Feedback Mechanism: Equipped with high-resolution encoders, the servo motor provides accurate feedback for precise positioning and motion control. This feature enhances the motor’s responsiveness and stability in dynamic applications.
Versatile Application Range: Ideal for a wide range of applications, including robotics, CNC machines, and automated manufacturing systems, the MSMJ022S1B adapts to various operational requirements, offering flexibility and scalability.
Energy Efficiency: The motor’s design optimizes energy consumption, contributing to reduced operational costs and improved overall system efficiency. Its efficient performance aligns with modern energy-saving standards and regulations.
Seamless Integration: The MSMJ022S1B is designed to integrate effortlessly with Panasonic’s MINAS A5 series controllers and other compatible control systems, ensuring a smooth setup and operational synergy.
Technical Specifications:
- Model: MSMJ022S1B
- Voltage Rating: 200V
- Power Rating: 200W
- Type: Servo Motor
- Feedback: High-resolution encoder
- Design: Compact and lightweight
- Application: Robotics, CNC, automation
Applications:
- Precision machining
- Automated assembly lines
- Robotics
- Material handling
- CNC milling and turning
Why Choose Panasonic MINAS A5 Family MSMJ022S1B Servo Motor?
The Panasonic MINAS A5 Family MSMJ022S1B Servo Motor stands out for its unparalleled performance, reliability, and versatility. Whether you are upgrading existing equipment or designing new systems, this servo motor provides the precision and power required to achieve superior operational outcomes. Trust Panasonic’s commitment to quality and innovation to enhance your automation capabilities and drive your industrial processes forward.
For more information or to request a quote, contact our sales team or visit our website. Explore the future of motion control with Panasonic’s cutting-edge servo motor technology.
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MSMJ022S1B |
| Details | Low inertia, Connector type, IP65 |
| Family Name | MINAS A5 |
| Series | MSMJ Series |
| Type | Low inertia |
| Special Order Product | Special Order Product |
| Cautions for Special ordering product | Please avoid the motor, or equipment containing the motor to be distributed to Japan, or other regions through Japan. |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Flange sq. dimension | 60 mm sq. |
| Flange sq. dimension (Unit:mm) | 60 |
| Motor lead-out configuration | Connector |
| Motor encoder connector | Connector |
| Power supply capacity (kVA) | 0.5 |
| Voltage specifications | 200 V |
| Rated output | 200 W |
| Rated current (A (rms)) | 1.6 |
| Holding brake | with |
| Mass (kg) | 1.3 |
| Oil seal | without |
| Shaft | Round |
| Rated torque (N ⋅ m) | 0.64 |
| Momentary Max. peak torque (N ⋅ m) | 1.91 |
| Max. current (A (o-p)) | 6.9 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P4283 |
| About regenerative brake frequency | Please refer to the details of [Motor Specification Description] , Note: 1, and 2. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 5000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.16 |
| Recommended moment of inertia ratio of the load and the rotor | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Please refer to the details of [Motor Specification Description] ,Note: 3. |
| Rotary encoder: specifications | 17-bit Absolute/Incremental system |
| Notice | When using a rotary encoder as an incremental system (not using multi-turn data), do not connect a battery for absolute encoder. |
| Rotary encoder: Resolution | 131072 |
Brake specifications
| Item | Specifications |
|---|---|
| Static friction torque (N ⋅ m) | 1.27 or more |
| Engaging time (ms) | 50 or less |
| Releasing time (ms) | 15 or less |
| Exciting current (DC) (A) | 0.36 |
| Releasing voltage (DC) (V) | 1 or more |
| Exciting voltage (DC) (V) | 24 ± 1.2 |
| About brake specifications | This brake will be released when it is energized. Do not use this for braking the motor in motion. Please refer to the details of [Motor Specification Description] , "Specifications of Built-in Holding Brake" and "Notes on [Motor specification] page, Note: 4. |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 392 |
| During assembly: Thrust load A-direction (N) | 147 |
| During assembly: Thrust load B-direction (N) | 196 |
| During operation: Radial load P-direction (N) | 245 |
| During operation: Thrust load A, B-direction (N) | 98 |
| About permissible load | For details, refer to the [Motor Specification Description] "Permissible Load at Output Shaft". |
