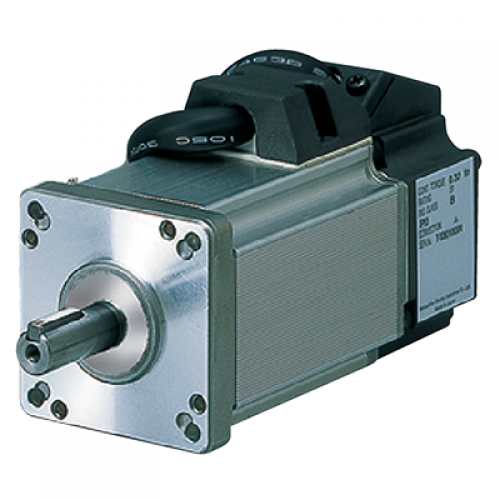

Panasonic MINAS E MUMA012P1S Servo Motor
Overview
The Panasonic MINAS E MUMA012P1S Servo Motor represents the pinnacle of precision engineering and advanced technology, designed to meet the stringent demands of modern industrial automation. This high-performance servo motor is a part of Panasonic's renowned MINAS E series, known for its reliability, efficiency, and superior control capabilities.
Key Features
High Torque Density:
- The MUMA012P1S delivers exceptional torque density, providing powerful performance in a compact design. This makes it ideal for applications where space is at a premium without compromising on power and efficiency.
Enhanced Positioning Accuracy:
- Equipped with a high-resolution 20-bit encoder, this servo motor ensures precise positioning and superior repeatability. The advanced encoder technology allows for accurate feedback and control, crucial for applications requiring meticulous precision.
Superior Responsiveness:
- With a rapid response time, the MUMA012P1S excels in dynamic performance, making it perfect for high-speed applications. Its swift acceleration and deceleration capabilities enhance the overall efficiency and productivity of the system.
Energy Efficiency:
- Designed with energy conservation in mind, the Panasonic MINAS E MUMA012P1S minimizes power consumption while maximizing output. Its efficient design contributes to lower operational costs and a reduced environmental footprint.
Robust Construction:
- Built to withstand harsh industrial environments, the MUMA012P1S features a durable construction with high resistance to dust and moisture. This ensures long-term reliability and consistent performance even in demanding conditions.
Advanced Safety Features:
- Incorporating comprehensive safety functions, including overcurrent protection, overvoltage protection, and thermal protection, the MUMA012P1S guarantees safe and secure operation. These features protect both the motor and the connected equipment from potential damage.
Technical Specifications
- Rated Output Power: 200W
- Rated Torque: 0.64 Nm
- Peak Torque: 1.9 Nm
- Rated Speed: 3000 RPM
- Maximum Speed: 6000 RPM
- Encoder Resolution: 20-bit absolute
- Voltage: 100V AC
- Protection Rating: IP65
- Operating Temperature: -20°C to 55°C
Applications
The Panasonic MINAS E MUMA012P1S Servo Motor is versatile and suitable for a wide range of applications, including:
- Robotics: Ensuring precise movement and control in robotic arms and automated systems.
- CNC Machinery: Providing accurate and reliable performance in CNC lathes, mills, and other machining tools.
- Conveyor Systems: Enhancing the efficiency and speed of material handling and conveyor operations.
- Packaging Machines: Offering precise control for packaging, labeling, and sorting equipment.
- Medical Equipment: Ensuring accuracy and reliability in medical devices and diagnostic machines.
Conclusion
The Panasonic MINAS E MUMA012P1S Servo Motor stands out as a top-tier solution for industrial automation, combining high performance, precision, and durability. Its advanced features and robust design make it an ideal choice for industries seeking to optimize their operations with reliable and efficient motion control solutions.
For more information and to explore how the MUMA012P1S can elevate your automation processes, contact us today or visit our website.
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MUMA012P1S |
| Type | Ultra low inertia |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Voltage specifications | 200 V |
| Rated output | 100 W |
| Rated current (A (rms)) | 1.0 |
| Holding brake | without |
| Mass (kg) | 0.50 |
| Oil seal | without |
| Shaft | Key-way, center tap |
| Rated torque (N ⋅ m) | 0.32 |
| Momentary Max. peak torque (N ⋅ m) | 0.95 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P2891 |
| About regenerative brake frequency | Note) 1. Regenerative brake frequency represents the frequency of the motor's stops from the rated speed with deceleration without load. ⋅ If the load is connected, frequency will be defined as 1/( m + 1 ), where m = ( load moment of inertia ) / ( rotor moment of inertia ). ⋅ When the motor speed exceeds the rated speed, regenerative brake frequency is in inverse proportion to the square of ( running speed / rated speed ). ⋅ Power supply voltage is AC115 V ( at 100 V of the main voltage ). If the supply voltage fluctuates, frequency is in inverse proportion to the square of ( Running supply voltage /115 ) relative to the value in the table. ⋅ When regeneration occurs continuosly such cases as running speed frequently changes or vertical feeding, consult us or a dealer. Note) 2. If the effective torque is within the rated torque, there is no limit in regenerative brake. |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 5000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.032 |
| Recommended moment of inertia ratio of the load and the rotor | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Note) 3. Consult us or a dealer if the load moment of inertia exceeds the specified value. |
| Rotary encoder: specifications | 2500 P/r Incremental |
| Rotary encoder: Resolution | 10000 |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 147 |
| During assembly: Thrust load A-direction (N) | 88 |
| During assembly: Thrust load B-direction (N) | 117 |
| During operation: Radial load P-direction (N) | 68 |
| During operation: Thrust load A, B-direction (N) | 58 |
Panasonic MINAS E MUMA012P1S Servo Motor
- Brand: Panasonic
- Product Code: MUMA012P1S
- Availability: 1000
Tags: Panasonic MINAS E MUMA012P1S, Servo Motor, High Precision, Industrial Automation, Robotics, CNC Machinery, High Torque Density, Energy Efficient, Advanced Encoder Technology, Robust Construction
