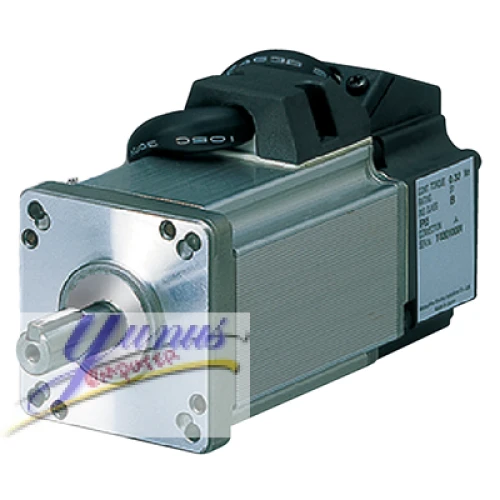

Panasonic MINAS E MUMA5AZP1S Servo Motor
Overview
The Panasonic MINAS E MUMA5AZP1S Servo Motor is engineered for precision and reliability in high-performance applications. Designed to deliver superior torque and speed control, this advanced servo motor integrates seamlessly into various automation and motion control systems. Ideal for industries requiring high accuracy and efficiency, the MUMA5AZP1S excels in robotics, packaging, and manufacturing processes.
Key Features
High Precision and Reliability: The MUMA5AZP1S features state-of-the-art digital servo technology, providing precise control and excellent repeatability. Its advanced feedback system ensures minimal deviation, making it perfect for tasks that demand high accuracy.
Exceptional Performance: Equipped with a high-performance brushless DC motor, the MUMA5AZP1S delivers exceptional torque and speed, supporting a wide range of applications. Its robust design ensures stable operation even in demanding environments.
Compact and Efficient Design: The servo motor’s compact form factor allows for flexible installation in space-constrained settings. Its efficient design minimizes energy consumption, reducing operational costs while maintaining high performance.
Advanced Control Capabilities: The motor includes sophisticated control algorithms that enhance responsiveness and adaptability. This feature enables the MUMA5AZP1S to handle complex motion profiles and dynamic loads with ease.
Durability and Longevity: Built with high-quality materials and components, the MUMA5AZP1S is engineered for durability. Its robust construction ensures a long service life, even under continuous operation and challenging conditions.
Seamless Integration: The Panasonic MINAS E MUMA5AZP1S is compatible with various control systems and can be easily integrated into existing setups. Its user-friendly interface and comprehensive documentation facilitate smooth installation and operation.
Technical Specifications
- Motor Type: Brushless DC Servo Motor
- Rated Torque: [Insert Torque Specification]
- Rated Speed: [Insert Speed Specification]
- Feedback Device: [Insert Feedback Device Specification]
- Power Supply Voltage: [Insert Voltage Specification]
- Protection Class: [Insert Protection Class Specification]
- Operating Temperature Range: [Insert Temperature Range Specification]
- Dimensions: [Insert Dimensions Specification]
- Weight: [Insert Weight Specification]
Applications
The Panasonic MINAS E MUMA5AZP1S Servo Motor is ideal for applications that require precise control and reliable performance, including:
- Robotics: Enhancing the accuracy and flexibility of robotic systems.
- Packaging: Ensuring consistent and precise packaging operations.
- Manufacturing: Improving the efficiency and precision of automated manufacturing processes.
- Material Handling: Facilitating accurate and efficient material transfer and positioning.
Why Choose Panasonic MINAS E MUMA5AZP1S?
Opt for the Panasonic MINAS E MUMA5AZP1S Servo Motor for its unrivaled precision, performance, and reliability. Engineered to meet the highest industry standards, this servo motor offers exceptional value for advanced motion control applications. Enhance your system’s capabilities and ensure long-term success with the MUMA5AZP1S.
Spec Detail
| Item | Specifications |
|---|---|
| Part Number | MUMA5AZP1S |
| Type | Ultra low inertia |
| Enclosure | IP65 |
| About Enclosure | Except rotating portion of output shaft and leadwire end. |
| Environmental Conditions | For more details, please refer to the instruction manual. |
| Voltage specifications | 100 V/200 V common |
| Rated output | 50 W |
| Rated current (A (rms)) | 1.0 |
| Holding brake | without |
| Mass (kg) | 0.40 |
| Oil seal | without |
| Shaft | Key-way, center tap |
| Rated torque (N ⋅ m) | 0.16 |
| Momentary Max. peak torque (N ⋅ m) | 0.48 |
| Regenerative brake frequency (times/min) | Without option :No limit With option :No limit Option (External regenerative resistor) Part No. : DV0P2890 (For AC100 V) , DV0P2891 (For AC200 V) |
| Rated rotational speed (r/min) | 3000 |
| Rated rotational Max. speed (r/min) | 5000 |
| Moment of inertia of rotor ( x10-4 kg ⋅ m²) | 0.021 |
| Recommended moment of inertia ratio of the load and the rotor | 30 times or less |
| About recommended moment of inertia ratio of the load and the rotor | Note) 3. Consult us or a dealer if the load moment of inertia exceeds the specified value. |
| Rotary encoder: specifications | 2500 P/r Incremental |
| Rotary encoder: Resolution | 10000 |
Permissible load
| Item | Specifications |
|---|---|
| During assembly: Radial load P-direction (N) | 147 |
| During assembly: Thrust load A-direction (N) | 88 |
| During assembly: Thrust load B-direction (N) | 117 |
| During operation: Radial load P-direction (N) | 68 |
| During operation: Thrust load A, B-direction (N) | 58 |
Panasonic MINAS E MUMA5AZP1S High-Performance Servo Motor
- Brand: Panasonic
- Product Code: MUMA5AZP1S
- Availability: 1000
