Product Description:

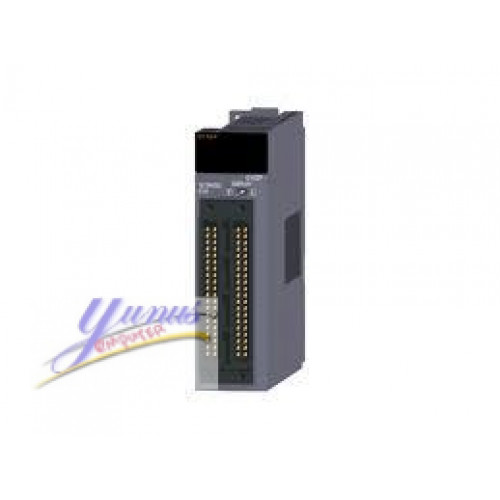

Mitsubishi QY82PC PLC Q Series Output Module
Elevate your automation systems with the Mitsubishi QY82PC PLC Q Series Output Module, a cutting-edge solution designed to meet the demands of high-performance industrial control applications. This advanced output module is engineered to provide reliable and efficient control in Mitsubishi’s Q Series PLC systems, known for their robust performance and versatility.
Technical Specifications:
- Model Number: QY82PC
- Series: Mitsubishi Q Series
- Type: Digital Output Module
- Number of Outputs: 16
- Output Type: Transistor
- Output Current Rating: 0.5A per channel
- Output Voltage Range: 24V DC
- Isolation: Optical Isolation
- Mounting Type: DIN Rail
- Response Time: Fast response time to ensure high-speed operations
- Compatibility: Fully compatible with Mitsubishi Q Series PLCs
- Temperature Range: Operating temperature of 0°C to 55°C
- Dimensions: 90mm (W) x 90mm (H) x 80mm (D)
- Weight: Approximately 200 grams
Key Features:
- High Reliability: The QY82PC module features high-quality components and rigorous manufacturing standards, ensuring long-term reliability and stability in demanding industrial environments.
- Enhanced Performance: With a fast response time and high current rating, the QY82PC supports complex control tasks and ensures timely execution of operations.
- Versatile Compatibility: Designed to integrate seamlessly with the Mitsubishi Q Series PLC systems, allowing for easy installation and configuration.
- Robust Isolation: Optical isolation between input and output channels enhances system protection and minimizes the risk of electrical interference.
- Durable Construction: The module’s rugged design withstands harsh industrial conditions, making it suitable for various applications across different sectors.
Applications:
The Mitsubishi QY82PC PLC Q Series Output Module is ideal for use in applications requiring precise and reliable digital output control, including manufacturing automation, process control, and machinery operation. Its versatility makes it a valuable component in any industrial automation setup.
Installation and Maintenance:
The module is designed for straightforward DIN rail mounting, facilitating easy installation and maintenance. Regular inspections and adherence to operational guidelines will ensure optimal performance and longevity.
Mitsubishi QY82PC PLC Q Series Output module; 24V DC; 0,1A; 64 outputs; source; A6CON; coated
Type | Q SERIES |
Power Supply (V) | 12-24 |
Current Type | DC |
Occupied I/O Points on PLC | 64 |
Integrated Digital Outputs | 64 |
Output Type | TRANSISTOR |
Output Logic | SOURCE |
Rated Load Voltage (VDC) | 12-24 |
Wiring | CONNECTOR |
Int. Current Consumption (A) | 0,16 |
Difference to Standard 1 | COATING |
Width (mm) | 27,4 |
Height (mm) | 98 |
Depth (mm) | 90 |
Weight (kg) | 0,17 |
European Order Code | 284691 |
Global Order Code | 1W4991-00106X |
Product hierarchy | IAD50702 |
Class Description | FA-MOD PLC: Digital Output Module |
External Material Group | Standard Material |
Logistic Class | C |
Gross Weight | 0.152 KG |
Volume | 0.385 CDM |
Length | 11 CM |
Width | 10 CM |
Height | 3,5 CM |
Commodity Code | 85389099 |
Country of Origin | JP |
Selling Status | Standard |
RoHS Compliance | COMPLIANT |
REACH Limit Exceeded | NO |
Dangerous Goods Regulations | NO |
Mitsubishi QY82PC PLC Q Series Output Module
- Brand: Mitsubishi
- Product Code: QY82PC
- Availability: 1000
Tags: Mitsubishi QY82PC, PLC Output Module, Q Series PLC, Digital Output Module, Industrial Automation, Mitsubishi PLC, High-Performance Module
